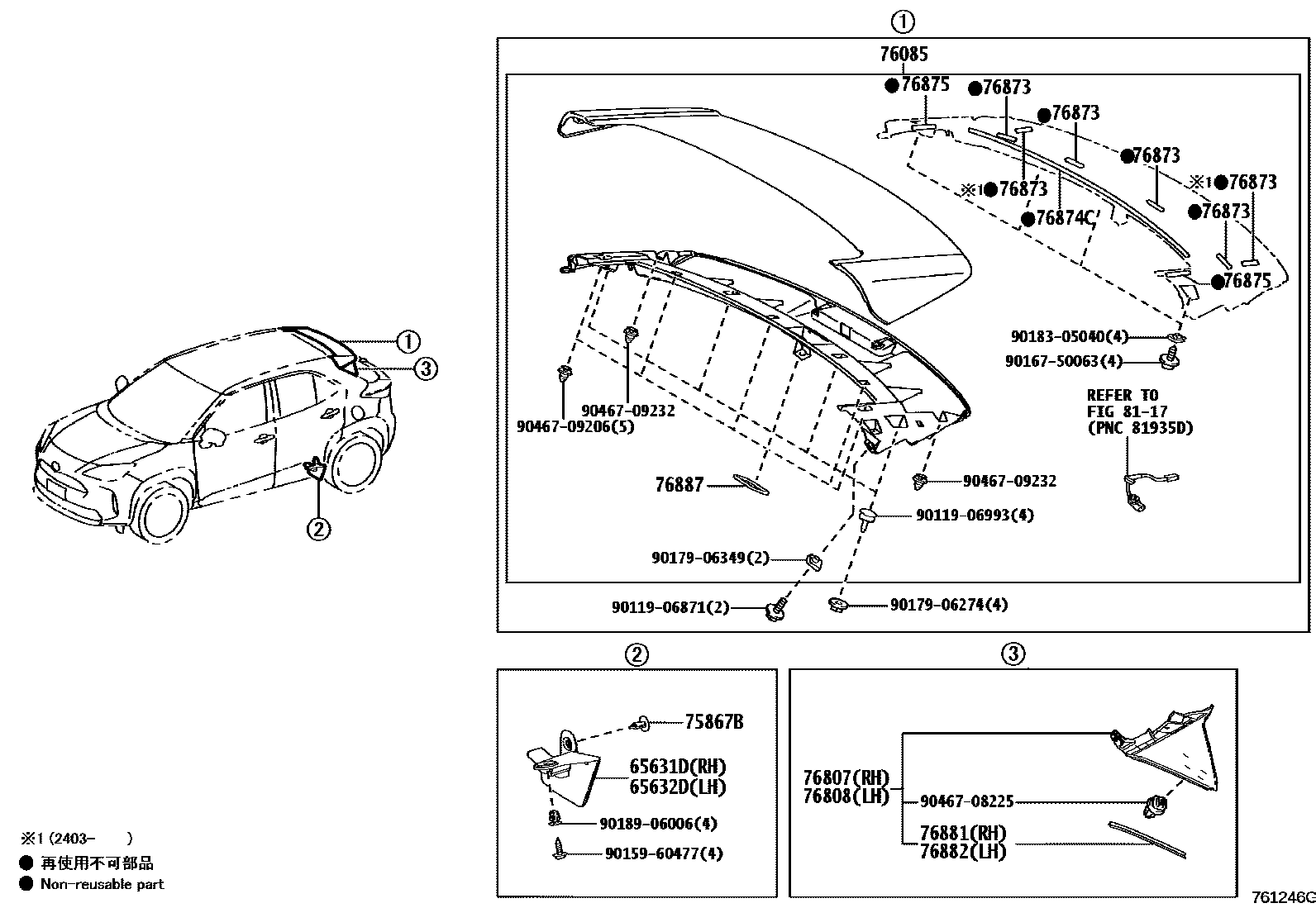

Toyota YARIS CROSS — MUDGUARD & SPOILER

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-52160iMXPB10,MXPJ1#¥1,090202008-202401

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-52160iMXPB10,MXPJ1#¥1,090202008-202401

75867BCLIP, ROCKER PANEL MOULDING

main75867-30140iMXPB10,MXPJ1#¥210202008-202401

76085SPOILER SUB-ASSY, REAR

main76085-52928iMXPB10,MXPJ1#202008-202403

PAINT REQ.

sub76085-52937

sub90167-50063¥60

main76085-52937iMXPJ1#202403

PAINT REQ.

76807PROTECTOR SUB-ASSY, REAR SPOILER, SIDE RH

main76807-52010iMXPB10,MXPJ1#¥2,530202008-202401

main76807-52030iMXPJ1#¥2,690202401

76808PROTECTOR SUB-ASSY, REAR SPOILER, SIDE LH

main76808-52010iMXPB10,MXPJ1#¥2,530202008-202401

main76808-52020iMXPJ1#¥2,690202401

76873PROTECTOR, REAR SPOILER, NO.2

main76873-52160iMXPB10,MXPJ1#¥430202008-202403

76874CPROTECTOR, REAR SPOILER, NO.3

main76874-52100iMXPB10,MXPJ1#¥430202008-202401

76875PROTECTOR, REAR SPOILER, NO.4

main76875-52080iMXPB10,MXPJ1#¥430202008-202401

76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH

main76881-52010iMXPJ1#¥430202401

main76881-52030iMXPB10,MXPJ1#¥470202008-202401

76882PROTECTOR, REAR SPOILER SIDE, NO.1 LH

main76881-52010iMXPJ1#¥430202401

main76881-52030iMXPB10,MXPJ1#¥470202008-202401

76887SEAL, REAR SPOILER

main76887-52070iMXPB10,MXPJ1#¥430202008-202401

8117

9011906871

main90119-06871¥60

9011906993

main90119-06993¥80

9015960477

main90159-60477¥70

9016750063

main90167-50063¥60

9017906274

main90179-06274¥70

9017906349

main90179-06349¥180

9018305040

main90183-05040¥80

9018906006

main90189-06006¥100

9046708225

main90467-08225¥60

9046709206

main90467-09206¥80

9046709232

main90467-09232¥70

24 parts on this diagram · 1 diagram in section
