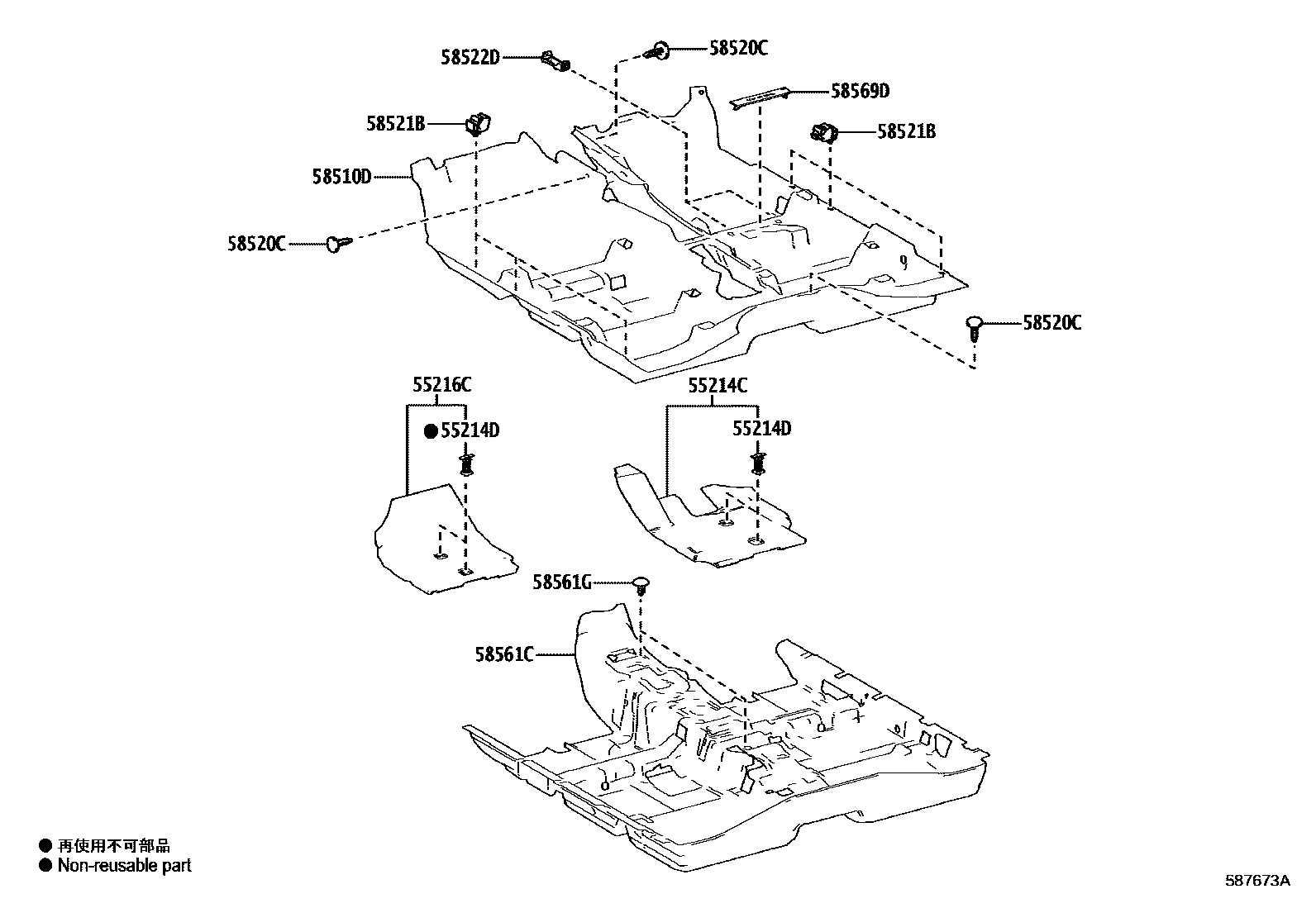

Toyota YARIS CROSS — MAT & CARPET

0001 1 0002 1

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-52210iMXPB10,MXPJ1#¥3,310202008-202401

55214DCLIP(FOR DASH PANEL INSULATOR PAD)

main58198-52020iMXPB10,MXPJ1#¥200202008-202010

main58198-52040iMXPB10,MXPJ1#¥210202011-202401

55216CPAD, DASH PANEL INSULATOR, NO.4

main55216-52070iMXPB10,MXPJ1#¥3,730202008-202401

58510DCARPET ASSY, FLOOR, FRONT

main58510-K0110-C0iMXPB10202008-202401

BLACK,TRIM2#,4#,6#

main58510-K0130-C0iMXPJ1#..N202008-202401

BLACK,TRIM2#,4#,6#

main58510-K0130-C0iMXPJ10..V202210-202401

BLACK,TRIM2#

main58510-K0131-C0iMXPJ1#..N202401

BLACK,TRIM2#,4#

main58510-K0131-C0iMXPJ1#..N202401

BLACK,TRIM2#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-23iMXPJ1#..N202008-202401

BLACK,TRIM2#,4#,6#

sub90467-07049¥90

main90467-07049-23iMXPJ10..V202210-202401

BLACK,TRIM2#

sub90467-07049¥90

main90467-07049-23iMXPJ1#..N202401

BLACK,TRIM2#,4#

sub90467-07049¥90

58521BHOOK, FLOOR CARPET

main58521-33060iMXPB10,MXPJ1#¥260202008-202401

58522DHOOK, FLOOR CARPET, NO.2

main58522-52030iMXPB10,MXPJ1#¥380202008-202401

58561CSILENCER, FRONT FLOOR, NO.1

main58561-K0020iMXPB10¥7,200202008-202401

main58561-K0060iMXPJ1#¥6,700202008-202401

58561GCLIP(FOR FRONT FLOOR SILENCER)

main90467-07042-C4iMXPB10,MXPJ1#202008-202401

BLACK

sub90467-07042¥110

sub90467-06175¥220

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-47020-C1iMXPB10,MXPJ1#..N202008-202401

BLACK,TRIM2#,4#,6#

sub58569-47020¥970

main58569-47020-C1iMXPJ10..V202210-202401

BLACK,TRIM2#

sub58569-47020¥970

main58569-47020-C1iMXPJ1#..N202401

BLACK,TRIM2#,4#

sub58569-47020¥970

10 parts on this diagram · 2 diagrams in section
