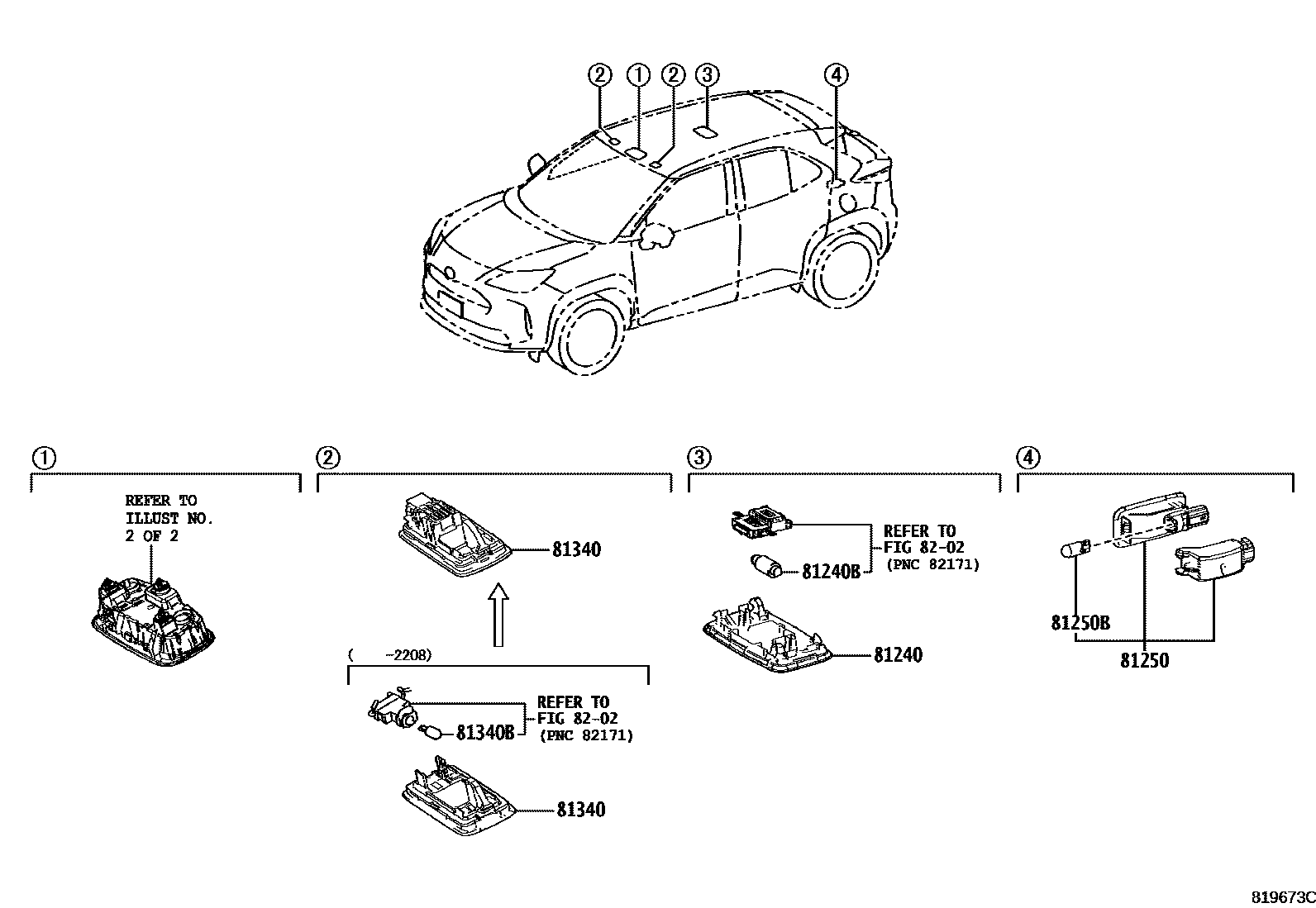

Toyota YARIS CROSS — INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-42020-B0iMXPB10,MXPJ1#..N202008-202401

LT.GRAY,TRIM40,6#

main81240-42020-B0iMXPJ1#..N202401

LT.GRAY,TRIM20,40

main81240-42020-C0iMXPJ1#..N202210-202401

BLACK,TRIM2#

main81240-42020-C0iMXPJ10..V202401

BLACK,TRIM20,41

main81240-42020-C0iMXPB10,MXPJ1#..N202008-202401

BLACK,TRIM2#,41

81240BBULB, ROOM LAMP, NO.1

main90981-14011iMXPB10,MXPJ1#¥180202008-202401

12V 8W

81250LAMP ASSY, ROOM, NO.2

main81250-30210iMXPB10,MXPJ1#¥1,250202008-202401

81250BBULB, ROOM LAMP, NO.2

main99132-12050iMXPB10,MXPJ1#¥110202008-202401

12V 5W

81340LAMP ASSY, VANITY

main81340-33170iMXPJ1#¥990202401

SINGAPORE SPEC

81340BBULB (FOR VANITY LAMP)

8202

7 parts on this diagram · 2 diagrams in section
