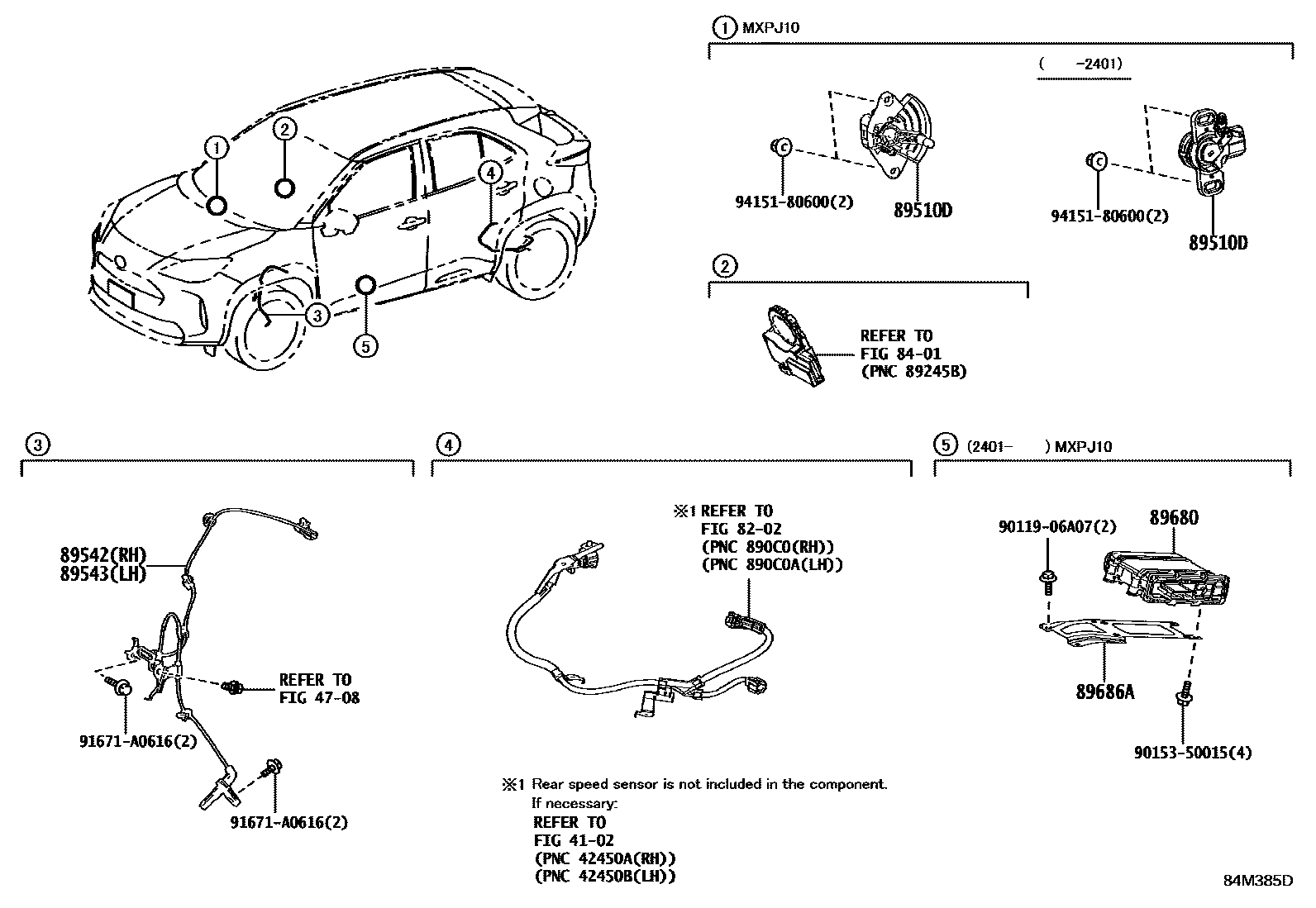

Toyota YARIS CROSS — ABS & VSC

0001 1 0002 1

4102

4708

8202

8401

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47030iMXPJ1#¥7,900202008-202401

main89510-K0021iMXPJ1#¥6,100202401

89542SENSOR, SPEED, FRONT RH

main89542-52110iMXPB10,MXPJ1#¥8,100202008-202401

89543SENSOR, SPEED, FRONT LH

main89543-52110iMXPB10,MXPJ1#¥8,100202008-202401

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-48030iMXPJ1#¥24,900202401

89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-52020iMXPJ1#¥940202401

9011906A07

main90119-06A07¥60

9015350015

main90153-50015¥60

91671A0616

main91671-A0616¥60

9415180600

main94151-80600¥60

13 parts on this diagram · 2 diagrams in section
