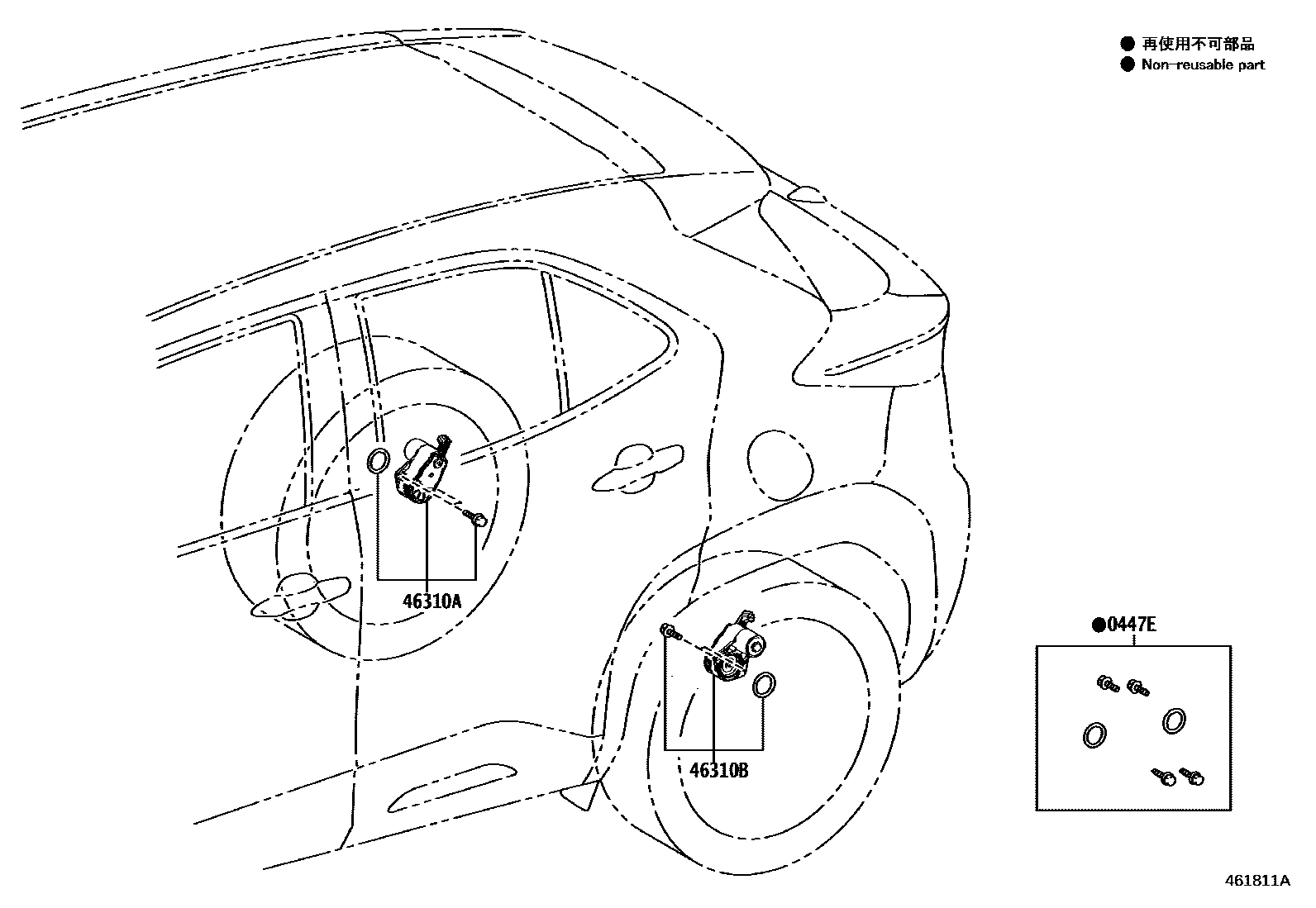

Toyota YARIS CROSS/HYBRID — PARKING BRAKE & CABLE

0001 1 0002 1

0447ESEAL KIT, PARKING BRAKE ACTUATOR

main0447E-0D010iMXPB10..RHD..6F202107-202206

main0447E-0D010iMXPJ10,11202404

main0447E-0D010iMXPB10..CVT;MXPB10..LHD..6F202107

main0447E-0D010iMXPJ10202107-202404

46310AACTUATOR ASSY, PARKING BRAKE, RH

main46310-09005iMXPB10..CVT;MXPB10..LHD..6F202107

main46310-09005iMXPJ10,11202404

main46310-09005iMXPB10..RHD..6F202107-202206

main46310-09005iMXPJ10202107-202404

main46310-33010iMXPJ15..RHD..N¥14,400202107

main46310-33010iMXPJ15..G;MXPJ15..LHD..N¥14,400202107-202404

main46310-33010iMXPJ15..G;MXPJ15..LHD..N¥14,400202404-202504

main46310-33010iMXPJ16¥14,400202404

46310BACTUATOR ASSY, PARKING BRAKE, LH

main46310-09005iMXPB10..RHD..6F202107-202206

main46310-09005iMXPJ10202107-202404

main46310-09005iMXPJ10,11202404

main46310-09005iMXPB10..CVT;MXPB10..LHD..6F202107

main46310-33010iMXPJ15..G;MXPJ15..LHD..N¥14,400202107-202404

main46310-33010iMXPJ15..RHD..N¥14,400202107

main46310-33010iMXPJ15..G;MXPJ15..LHD..N¥14,400202404-202504

main46310-33010iMXPJ16¥14,400202404

3 parts on this diagram · 2 diagrams in section
