Toyota YARIS CROSS/HYBRID — HEV INVERTER

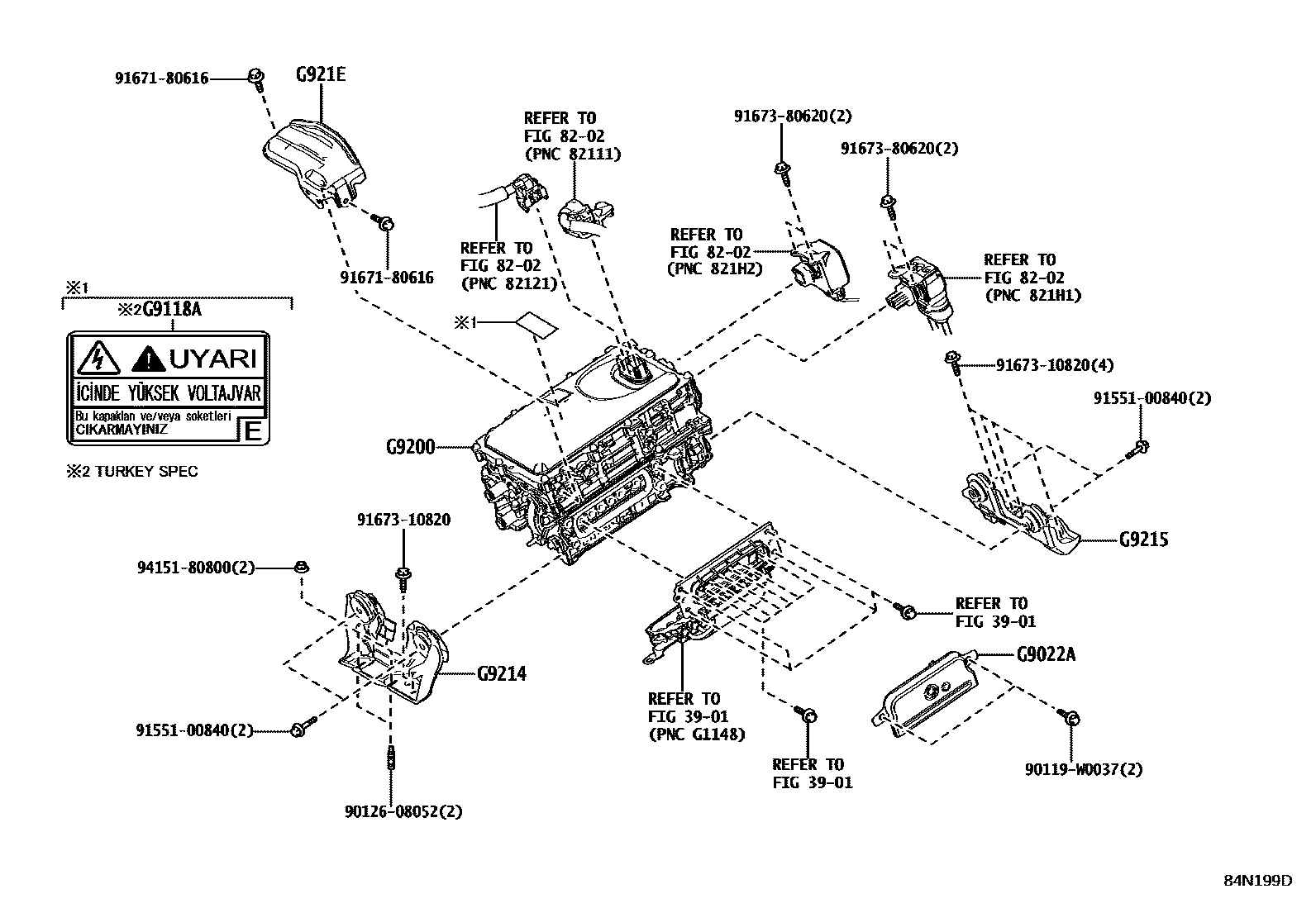

Parts diagram
3901
8202
G9022ACOVER SUB-ASSY, INVERTER, UPPER
mainG902247050i202107
mainG902247050i202107-202404
mainG902247050i202404-202504
mainG902247050i202404
mainG902252010i202404
G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION
G9200INVERTER ASSY, W/CONVERTER
mainG92A052150i202207-202304
P/N LABEL=G920052***
subG9200-K9011¥199,000
mainG92A052160i202207-202304
P/N LABEL=G920052***
mainG92A052211i202404
mainG92A052221i202404
mainG92A052250i202404
mainG92A052250i202304-202404
mainG92A052260i202304-202305
subG92A0-52261
mainG92A052261i202306-202404
mainG92A052261i202306
mainG92A052261i202404-202504
mainG92A0K2011i202107-202207
subG92A0-K2012¥181,000
mainG92A0K2011i202207-202304
P/N LABEL=G9200K2***
subG92A0-K2012¥181,000
mainG92A0K2021i202107-202207
subG92A0-K2022¥181,000
mainG92A0K2021i202207-202304
P/N LABEL=G9200K2***
subG92A0-K2022¥181,000
G9214BRACKET, INVERTER, NO.1
mainG92140D010i202204-202212
(L)
mainG92140D010i202212-202404
mainG92140D010i202212
mainG92140D010i202404-202504
mainG92140D010i202404
mainG921452030i202404
mainG9214K0010i202204-202212
(J)
mainG9214K0010i202107-202204
G9215BRACKET, INVERTER, NO.2
mainG92150D010i202404
mainG92150D010i202204-202212
(L)
mainG92150D010i202212-202404
mainG92150D010i202212
mainG92150D010i202404-202504
mainG921552020i202404
mainG9215K0010i202204-202212
(J)
mainG9215K0010i202107-202204
G921EPROTECTOR, INVERTER
mainG921E0D010i202404
mainG921E0D010i202204-202212
(L)
mainG921E0D010i202212
mainG921E0D010i202404-202504
mainG921E0D010i202212-202404
mainG921EK0010i202204-202212
(J)
mainG921EK0010i202107-202204
90119W0037
main90119-W0037¥60
9012608052
main90126-08052¥80
9155100840
main91551-00840¥80
9167180616
main91671-80616¥60
9167310820
main91673-10820¥80
9167380620
main91673-80620¥60
9415180800
main94151-80800¥80

15 parts on this diagram · 5 diagrams in section
