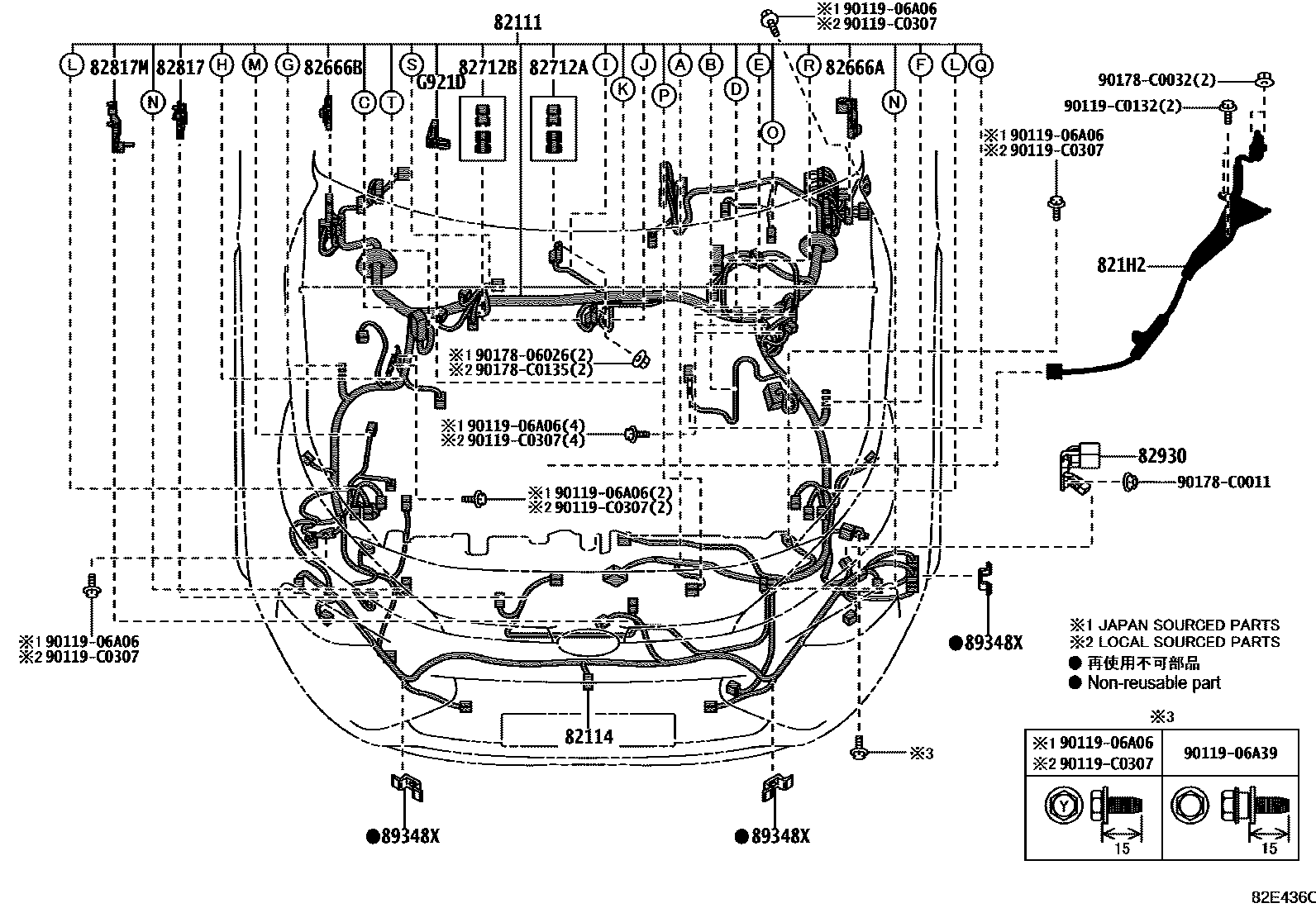

Toyota WILDLANDER PHEV — WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE 1/2 0004 1ENGINE 2/2 0005 1INSTRUMENT PANEL 0006 1DOOR 0007 1FLOOR & ROOF 0008 1HIGH VOLTAGE CABLE 0009 1HIGH VOLTAGE CABLE 0010 1SEAT 0011 1CLAMP & BRACKET 0012 1CABLE BOND 0013 1CONNECTOR 1/2 0014 1CONNECTOR 2/2

82111WIRE, ENGINE ROOM MAIN

main82111-0RB00iAXAP52202105-202207

main82111-0RB01iAXAP52202207-202304

main82111-0RB02iAXAP52202304-202405

main82111-0RB03iAXAP52202405

main82111-0RB20iAXAP54..A202105-202207

main82111-0RB21iAXAP54..A202207

main82111-0RB22iAXAP54202304-202405

main82111-0RB23iAXAP54202405

main82111-0RB30iAXAP54..M202105-202207

main82111-0RB31iAXAP54..M202207-202304

82114WIRE, ENGINE ROOM, NO.4

main82114-0R330iAXAP5#202105

main82114-0R360iAXAP5#..M202105-202304

821H2WIRE, HV AIR CONDITIONER

main821H2-0R080iAXAP5#..M202105-202304

82666AHOLDER, CONNECTOR NO.2

main82666-42710iAXAP5#..M¥400202105-202405

82666BHOLDER, CONNECTOR NO.3

main82666-60220iAXAP5#..M¥180202105-202405

82712ASUPPORT, WIRING HARNESS

main82712-42150iAXAP5#..M¥320202105-202304

82712BSUPPORT, WIRING HARNESS

main82712-42180iAXAP5#..M¥430202105-202304

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-42A90iAXAP5#..M¥390202105-202304

82817MPROTECTOR, WIRING HARNESS, NO.12

main82817-0RD60iAXAP54..A202105-202304

82930CONDENSER ASSY, WIRING HARNESS, NO.1

main82930-42020iAXAP5#¥4,720202105-202207

89348XCLIP, ULTRASONIC SENSOR, FRONT

main89348-50050iAXAP5#..M¥260202105-202304

G921DPROTECTOR, INVERTER CONNECTOR COVER

mainG921D42020iAXAP5#..M202105-202304

9011906A06

main90119-06A06¥60

9011906A39

main90119-06A39¥80

90119C0132

main90119-C0132

90119C0307

main90119-C0307

9017806026

main90178-06026¥80

90178C0011

main90178-C0011

90178C0032

main90178-C0032

90178C0135

main90178-C0135

20 parts on this diagram · 14 diagrams in section
