Toyota WILDLANDER PHEV — VENTILATION HOSE

12211CASE, VENTILATION, NO.1

main12211-F0020iA25DFXS..AXAP5#..M202105-202304

main12211-F0020iA25DFXS..AXAP54..A202105

main12211-F0020iA25DFXS..AXAP5#202304

12262HOSE, VENTILATION, NO.2

main12262-25080iA25DFXS..AXAP5#..M¥1,430202105-202304

main12262-25080iA25DFXS..AXAP54..A¥1,430202105

main12262-25080iA25DFXS..AXAP5#¥1,430202304

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004iA25DFXS..AXAP5#..M¥130202105-202304

main90467-21004iA25DFXS..AXAP54..A¥130202105

main90467-21004iA25DFXS..AXAP5#¥130202304

12273EGASKET(FOR VENTILATION CASE)

main12273-F2020iA25DFXS..AXAP5#..M202105-202304

main12273-F2020iA25DFXS..AXAP54..A202105

main12273-F2020iA25DFXS..AXAP5#202304

90105C0091

main90105-C0091

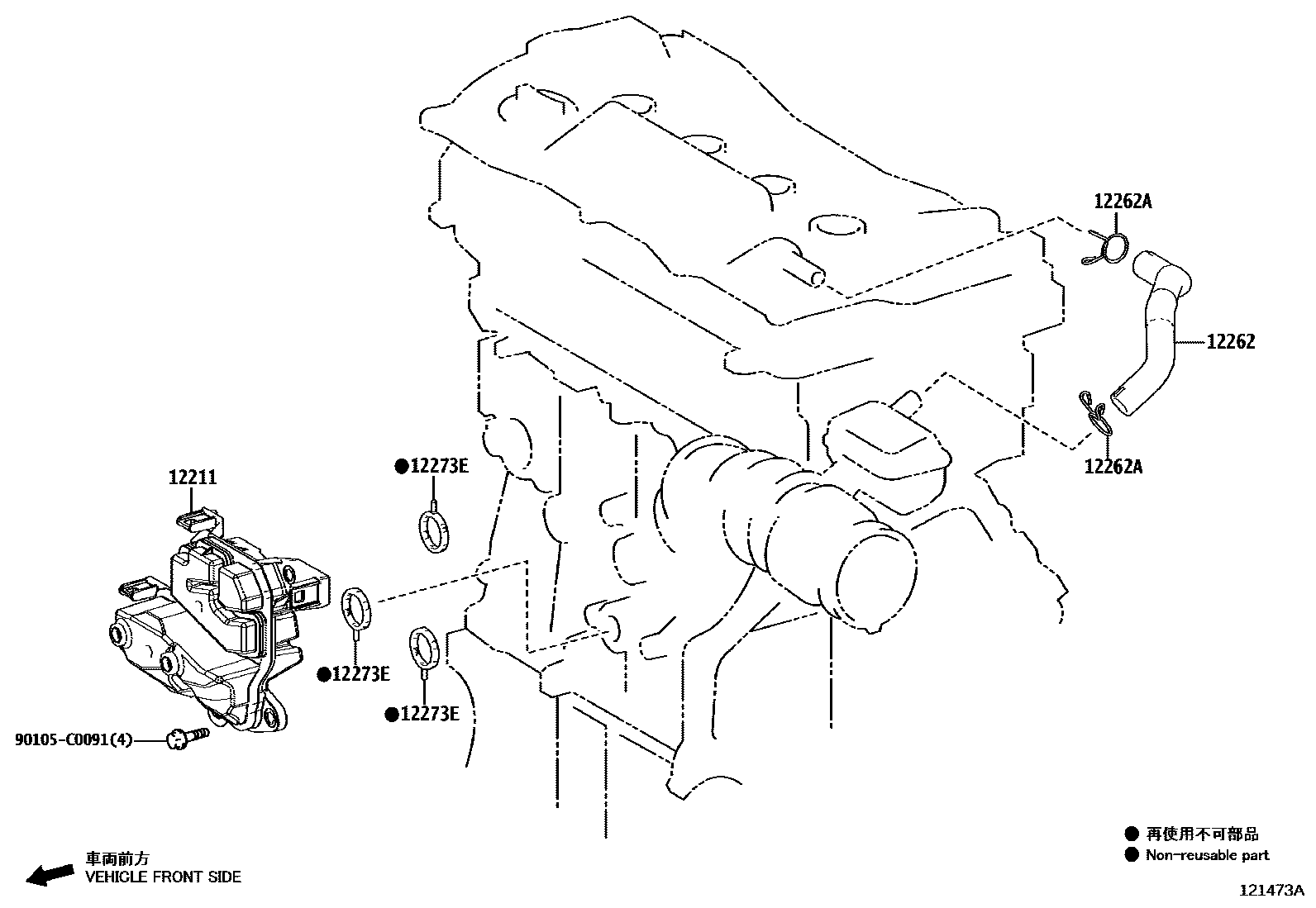

5 parts on this diagram · 1 diagram in section
