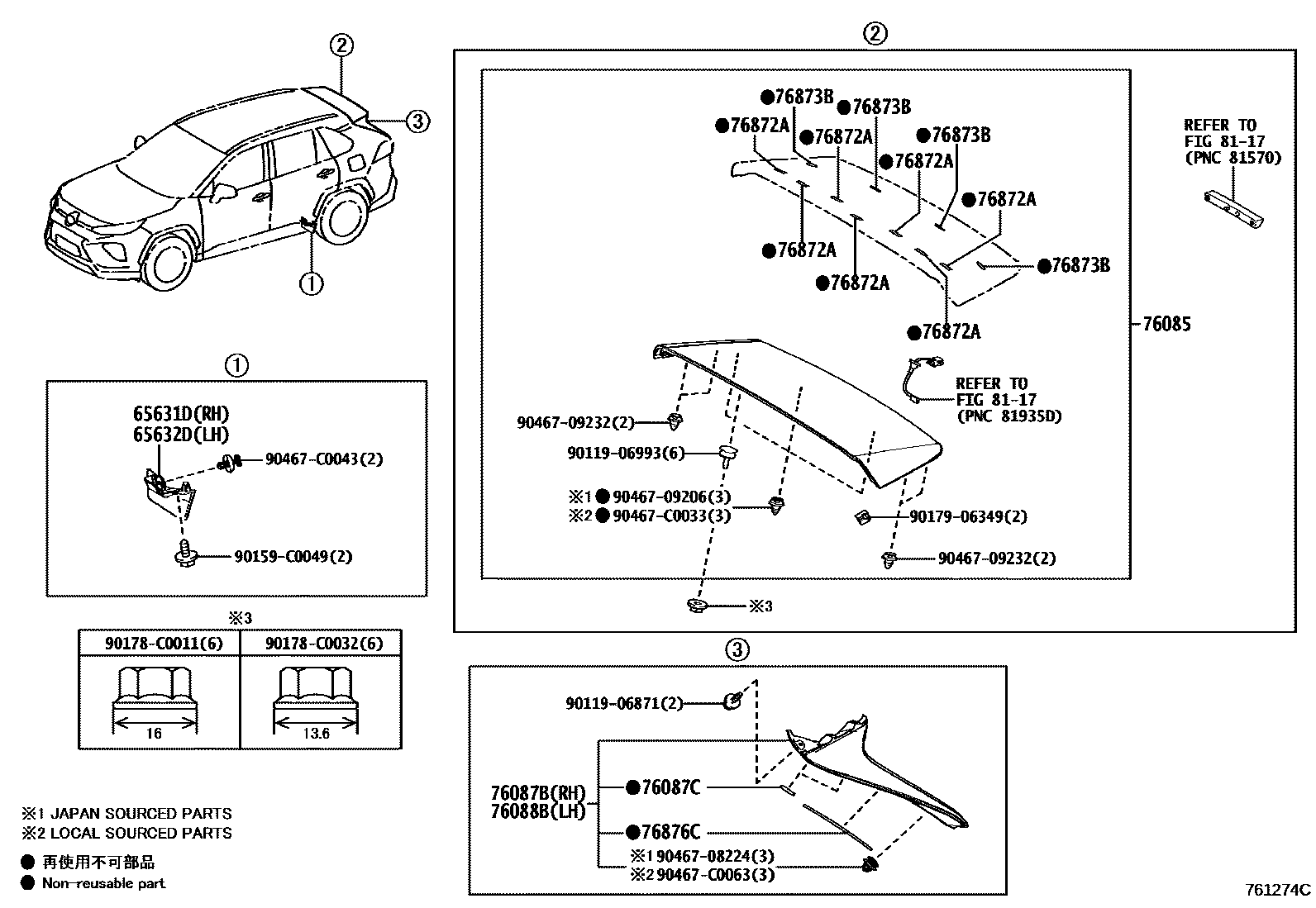

Toyota WILDLANDER PHEV — SPOILER & SIDE MUDGUARD
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
76085SPOILER SUB-ASSY, REAR
PAINT REQ.
PAINT REQ.
76087BSPOILER SUB-ASSY, REAR SIDE, RH
76087CPROTECTOR, REAR SIDE SPOILER
76088BSPOILER SUB-ASSY, REAR SIDE, LH
76872APROTECTOR, REAR SPOILER, NO.1
76873BPROTECTOR, REAR SPOILER, NO.2
76876CPROTECTOR, REAR SPOILER, NO.4
8117
9011906871
9011906993
90159C0049
main90159-C0049
90178C0011
main90178-C0011
90178C0032
main90178-C0032
9017906349
9046708224
9046709206
9046709232
90467C0033
main90467-C0033
90467C0043
main90467-C0043
90467C0063
main90467-C0063
22 parts on this diagram · 1 diagram in section
