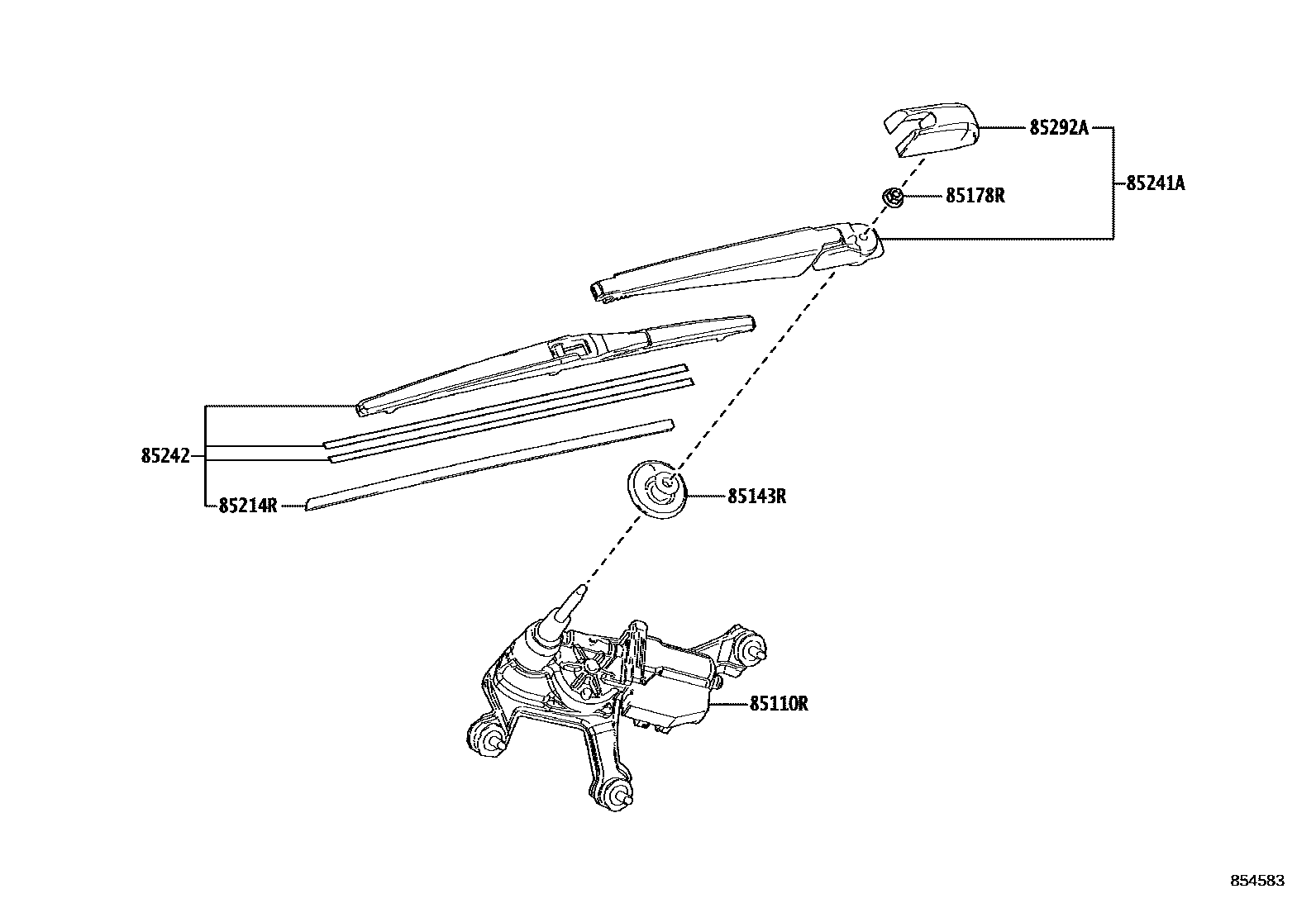

Toyota WILDLANDER PHEV — REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-0R070iAXAP5#..M202105-202304

main85130-0R070iAXAP54..A202105

main85130-0R070iAXAP5#202304

85143RGROMMET, REAR WIPER MOTOR

main85143-0R050iAXAP5#..M202105-202304

main85143-0R050iAXAP54..A202105

main85143-0R050iAXAP5#202304

85178RNUT (FOR REAR WIPER ARM SETTING)

main90182-C0004iAXAP5#..M202105-202304

main90182-C0004iAXAP54..A202105

main90182-C0004iAXAP5#202304

85214RRUBBER, REAR WIPER

main85214-0R160iAXAP5#..M202105-202304

main85214-0R160iAXAP54..A202105

main85214-0R160iAXAP5#202304

85241AARM, REAR WIPER

main85241-0R100iAXAP5#..M202105-202304

main85241-0R100iAXAP54..A202105

main85241-0R100iAXAP5#202304

85242BLADE, RR WIPER

main85242-0R060iAXAP5#..M202105-202304

main85242-0R060iAXAP54..A202105

main85242-0R060iAXAP5#202304

85292ACAP, REAR WIPER ARM HEAD

main85292-0D080iAXAP5#..M¥630202105-202304

main85292-0D080iAXAP54..A¥630202105

main85292-0D080iAXAP5#¥630202304

7 parts on this diagram · 1 diagram in section
