Toyota WILDLANDER PHEV — REAR COMBINATION LAMP

6151

81496GUIDE, REAR COMBINATION LAMP

main81496-0D030iAXAP5#..M202105-202304

81496BGUIDE, REAR LAMP

main81496-0D030iAXAP5#..M202105-202304

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main90467-C0019iAXAP5#..M202105-202304

81497COVER, REAR COMBINATION LAMP, RH

main81497-0R030iAXAP5#..M202105-202304

81498COVER, REAR COMBINATION LAMP, LH

main81498-0R030iAXAP5#..M202105-202304

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0R110iAXAP5#..M202105-202304

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iAXAP5#¥300202105-202304

12V 21W,AMBER

main90981-CB004iAXAP5#202304

12V 21W

81550NBULB, BACK UP LAMP

main90981-11059iAXAP5#¥200202105-202304

12V 16W

81554HPACKING, REAR COMBINATION LAMP, RH

main81554-0R110iAXAP5#..M202105-202304

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0R110iAXAP5#..M202105-202304

81564HPACKING, REAR COMBINATION LAMP, LH

main81554-0R110iAXAP5#..M202105-202304

81580ALAMP ASSY, REAR

main81580-0R080iAXAP5#..M202105-202304

81588EBRACKET, REAR LAMP, RH

main81588-0R080iAXAP5#..M202105-202304

81588FBRACKET, REAR LAMP, LH

main81598-0R080iAXAP5#..M202105-202304

81590ALAMP ASSY, REAR, LH

main81590-0R080iAXAP5#..M202105-202304

9006932094

main90069-32094

9015960621

main90159-60621¥60

90178C0057

main90178-C0057

9018906242

main90189-06242¥70

90189C0031

main90189-C0031

90467C0033

main90467-C0033

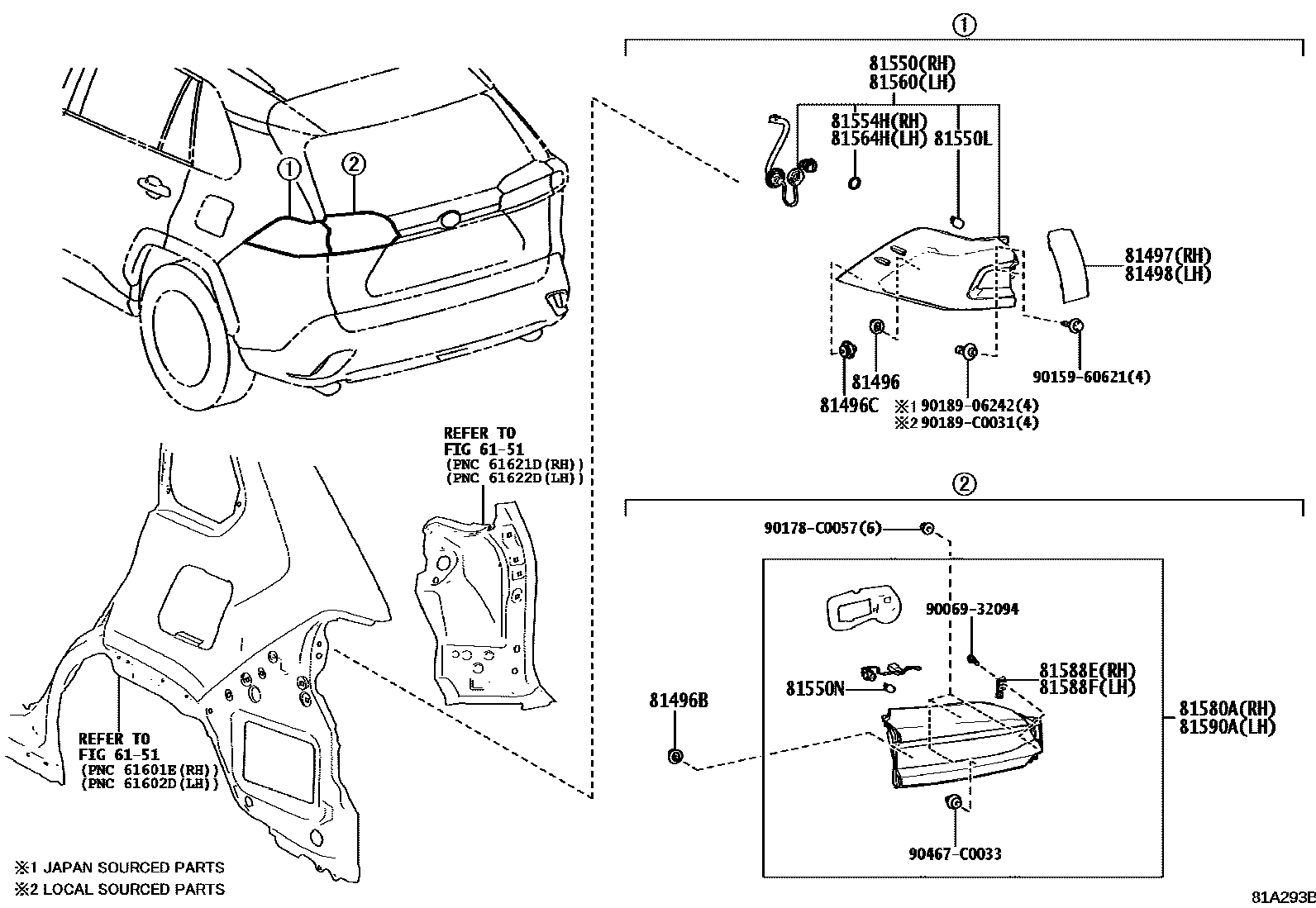

22 parts on this diagram · 1 diagram in section
