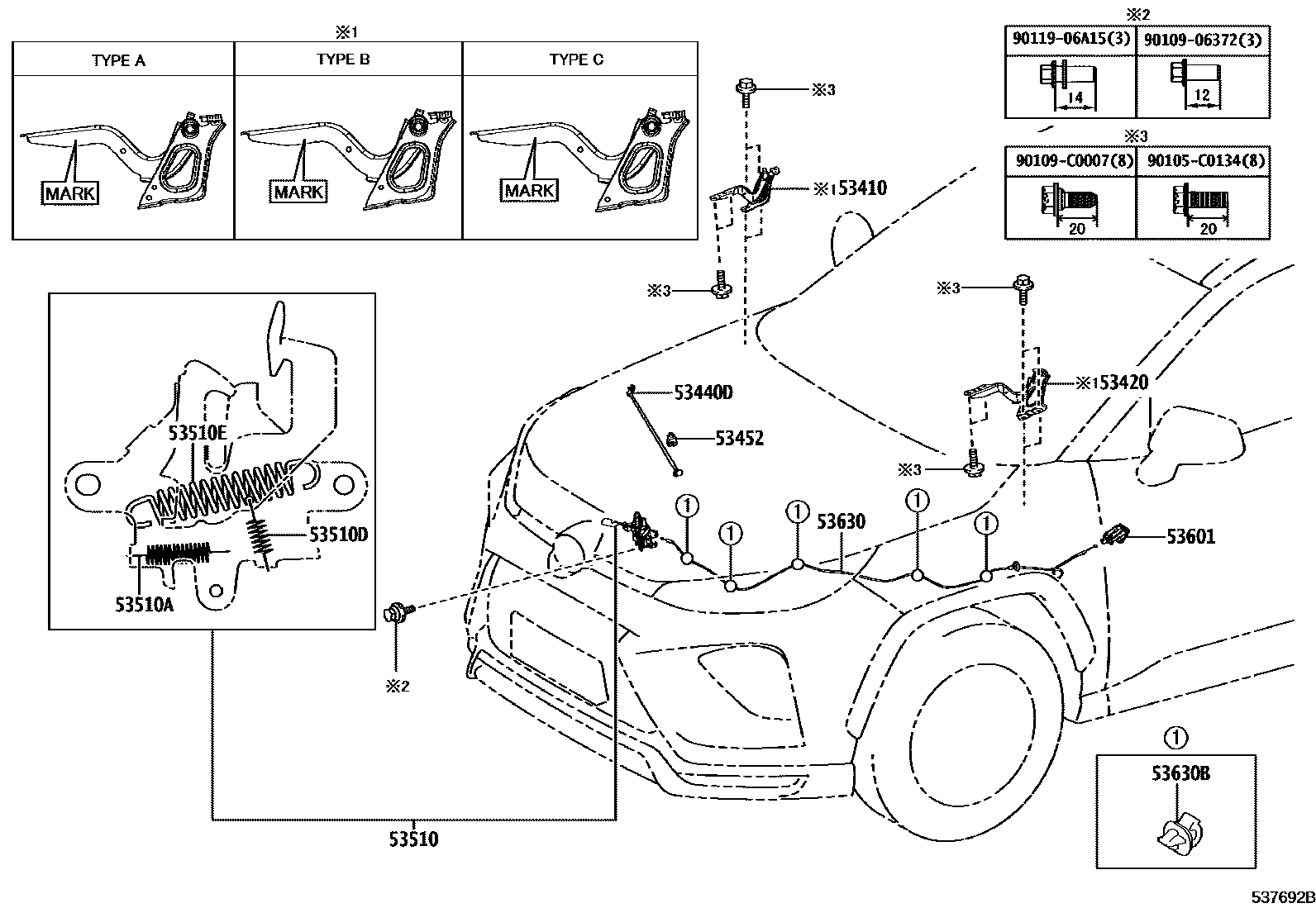

Toyota WILDLANDER PHEV — HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
MARK 530R,TYPE A
MARK 530R,TYPE A
MARK 530R,TYPE A
MARK 530R,TYPE B
MARK 530R,TYPE B
MARK 530R,TYPE B
MARK 530R,TYPE C
MARK 530R,TYPE C
MARK 530R,TYPE C
53420HINGE ASSY, HOOD, LH
MARK 530L,TYPE A
MARK 530L,TYPE A
MARK 530L,TYPE A
MARK 530L,TYPE B
MARK 530L,TYPE B
MARK 530L,TYPE B
MARK 530L,TYPE C
MARK 530L,TYPE C
MARK 530L,TYPE C
53440DSUPPORT ASSY, HOOD
53452HOLDER, HOOD STAY
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
WD=0.9,CW=21
WD=0.9,CW=21
53510DSPRING, TENSION(FOR HOOD LOCK)
WD=1.2,CW=8.5
WD=1.2,CW=8.5
WD=1.2,CW=8.5
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=1.5,CW=12
WD=1.5,CW=12
WD=1.5,CW=12
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
53630CABLE ASSY, HOOD LOCK CONTROL
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
90105C0134
main90105-C0134
9010906372
90109C0007
main90109-C0007
9011906A15
15 parts on this diagram · 1 diagram in section
