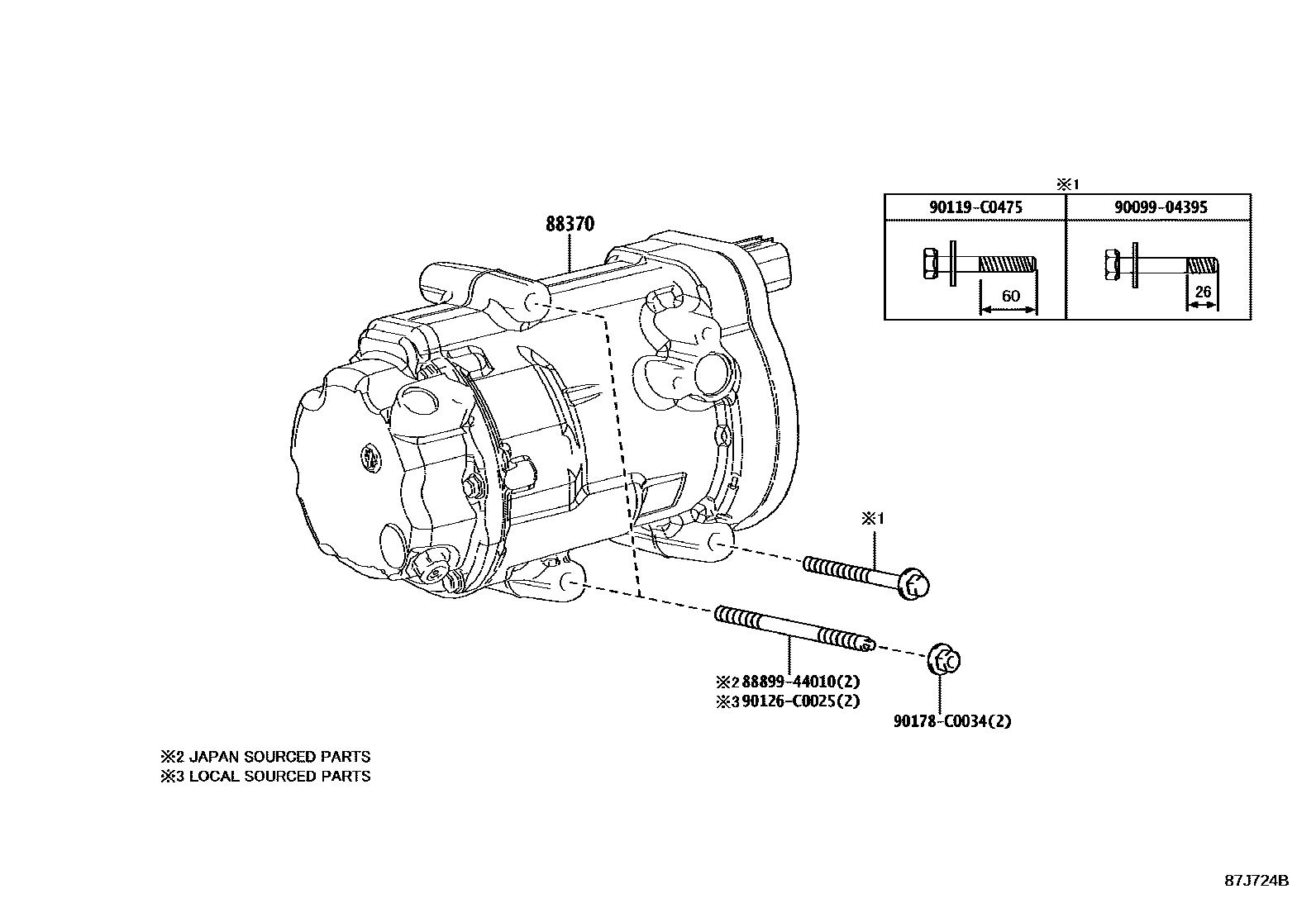

Toyota WILDLANDER PHEV — HEATING & AIR CONDITIONING - COMPRESSOR

88370COMPRESSOR ASSY, W/MOTOR

main88370-42040iAXAP5#202105-202108

sub88370-42041

main88370-42041iAXAP5#..M202109-202304

main88370-42041iAXAP54..A202109

main88370-42041iAXAP5#202304

8889944010COVER, EVAPORATOR

main88899-44010

9009904395

main90099-04395

90119C0475

main90119-C0475

90126C0025

main90126-C0025

90178C0034

main90178-C0034

6 parts on this diagram · 1 diagram in section
