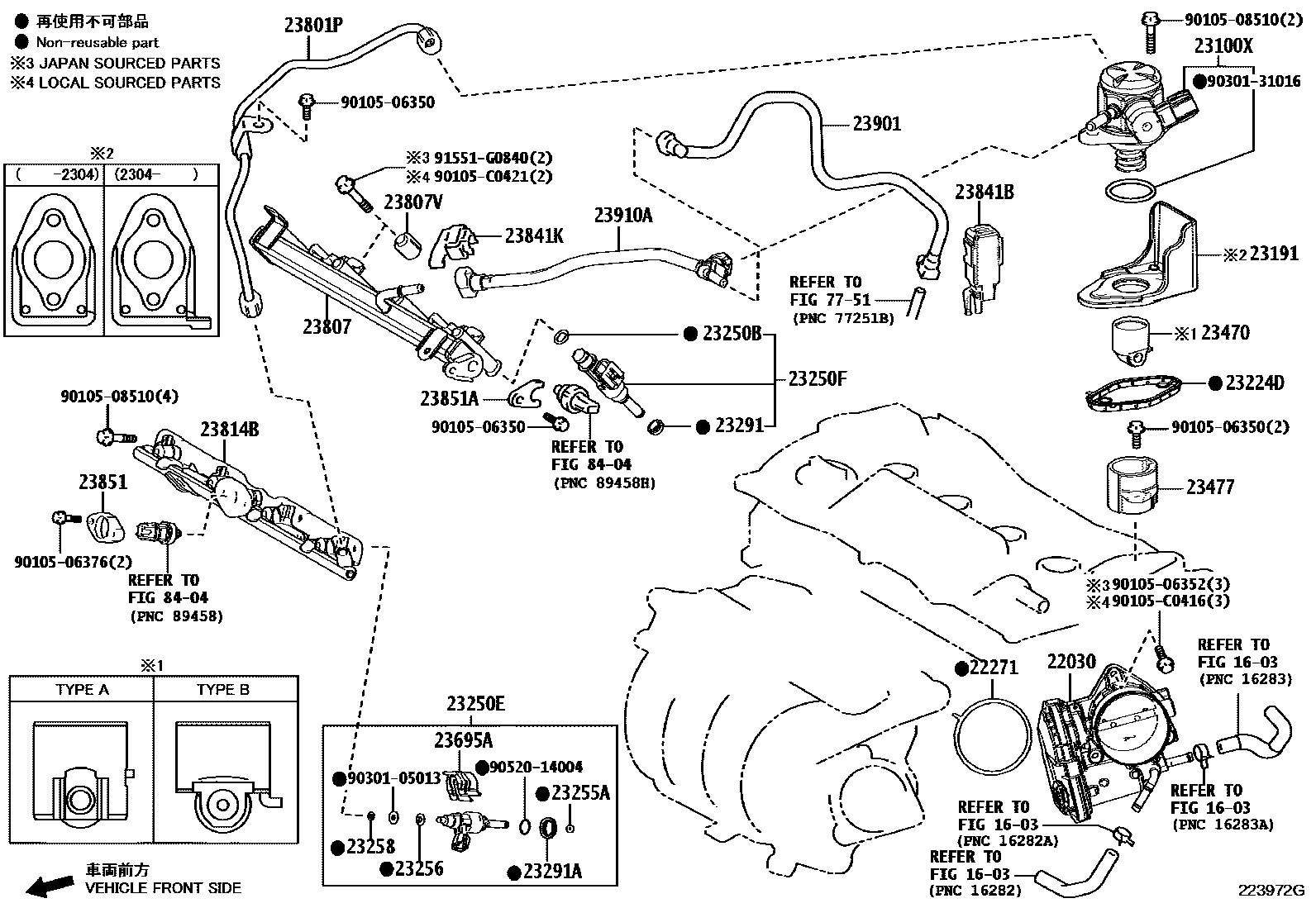

Toyota WILDLANDER PHEV — FUEL INJECTION SYSTEM
1603
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
(J)
(J)
(J)
(L)
(L)
(L)
22271GASKET, THROTTLE BODY
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
23191FLANGE, FUEL PUMP
23224DGASKET, FUEL PUMP SPACER
23250BRING, O(FOR FUEL INJECTOR)
(J)
(J)
(J)
(L)
(L)
(L)
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
MARK 1,(J),REFER R/M
MARK 1,(J),REFER R/M
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 2,(J),REFER R/M
MARK 2,(J),REFER R/M
MARK 3,(J),REFER R/M
MARK 3,(J),REFER R/M
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 4,(J),REFER R/M
MARK 4,(J),REFER R/M
MARK 5,(J),REFER R/M
MARK 5,(J),REFER R/M
MARK 5,REFER REPAIR MANUAL
MARK 6,(J),REFER R/M
MARK 6,REFER REPAIR MANUAL
MARK 6,(J),REFER R/M
MARK 7,(J),REFER R/M
MARK 7,(J),REFER R/M
MARK 7,REFER REPAIR MANUAL
MARK 8,REFER REPAIR MANUAL
MARK 8,(J),REFER R/M
MARK 8,(J),REFER R/M
MARK 9,(J),REFER R/M
MARK 9,REFER REPAIR MANUAL
MARK 9,(J),REFER R/M
MARK 1,(L),REFER R/M
MARK 1,(L),REFER R/M
MARK 2,(L),REFER R/M
MARK 2,(L),REFER R/M
MARK 3,(L),REFER R/M
MARK 3,(L),REFER R/M
MARK 4,(L),REFER R/M
MARK 4,(L),REFER R/M
MARK 5,(L),REFER R/M
MARK 5,(L),REFER R/M
MARK 6,(L),REFER R/M
MARK 6,(L),REFER R/M
MARK 7,(L),REFER R/M
MARK 7,(L),REFER R/M
MARK 8,(L),REFER R/M
MARK 8,(L),REFER R/M
MARK 9,(L),REFER R/M
MARK 9,(L),REFER R/M
23250FINJECTOR ASSY, FUEL(FOR PORT)
(J)
(J)
(J)
(L)
(L)
(L)
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
23258RING, FUEL INJECTOR BACK-UP, NO.3
BLACK
BLACK
ORANGE
ORANGE
23291INSULATOR, INJECTOR VIBRATION
23291AINSULATOR, INJECTOR VIBRATION
23470LIFTER ASSY, FUEL PUMP
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
23477GUIDE, FUEL PUMP LIFTER
23695ACLAMP, NOZZLE HOLDER
23801PPIPE SUB-ASSY, FUEL, NO.1
23807PIPE SUB-ASSY, FUEL DELIVERY
(J)
(J)
(J)
(L)
(L)
(L)
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23814BPIPE, FUEL DELIVERY
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23841KCLAMP, FUEL PIPE
(J)
(J)
(J)
(L)
(L)
(L)
23851HOLDER, FUEL PRESSURE SENSOR, NO.1
23851AHOLDER, FUEL PRESSURE SENSOR, NO.2
23901TUBE SUB-ASSY, FUEL
23910ATUBE SUB-ASSY, FUEL
(J)
(J)
(J)
(L)
(L)
(L)
7751
8404
9010506350
9010506352
9010506376
9010508510
90105C0416
main90105-C0416
90105C0421
main90105-C0421
9030105013
9030131016
9052014004
91551G0840
39 parts on this diagram · 1 diagram in section
