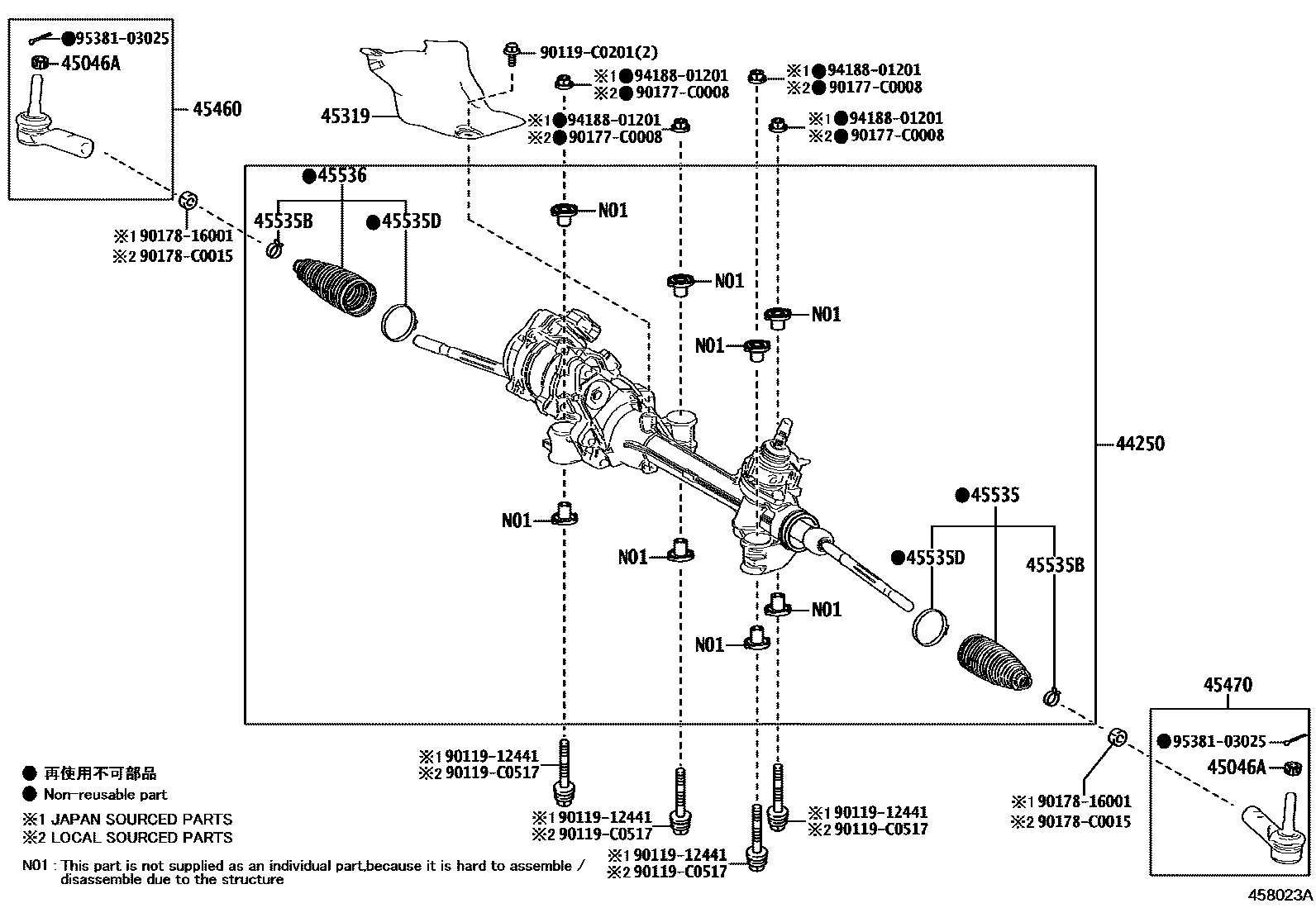

Toyota WILDLANDER PHEV — FRONT STEERING GEAR & LINK
44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)
*614
*614
*614
*614
*614
*614
*614
45046ANUT, CASTLE(FOR TIE ROD END)
(J)
(J)
(L)
(L)
45319INSULATOR, STEERING GEAR HEAT
45460ROD ASSY, TIE, RH
45470ROD ASSY, TIE, LH
45535BOOT, STEERING RACK, NO.1
45535BCLIP(FOR STEERING RACK BOOT)
45535DCLAMP(FOR STEERING RACK BOOT NO.1)
45536BOOT, STEERING RACK, NO.2
9011912441
90119C0201
main90119-C0201
90119C0517
main90119-C0517
90177C0008
main90177-C0008
9017816001
90178C0015
main90178-C0015
9418801201
9538103025
17 parts on this diagram · 1 diagram in section
