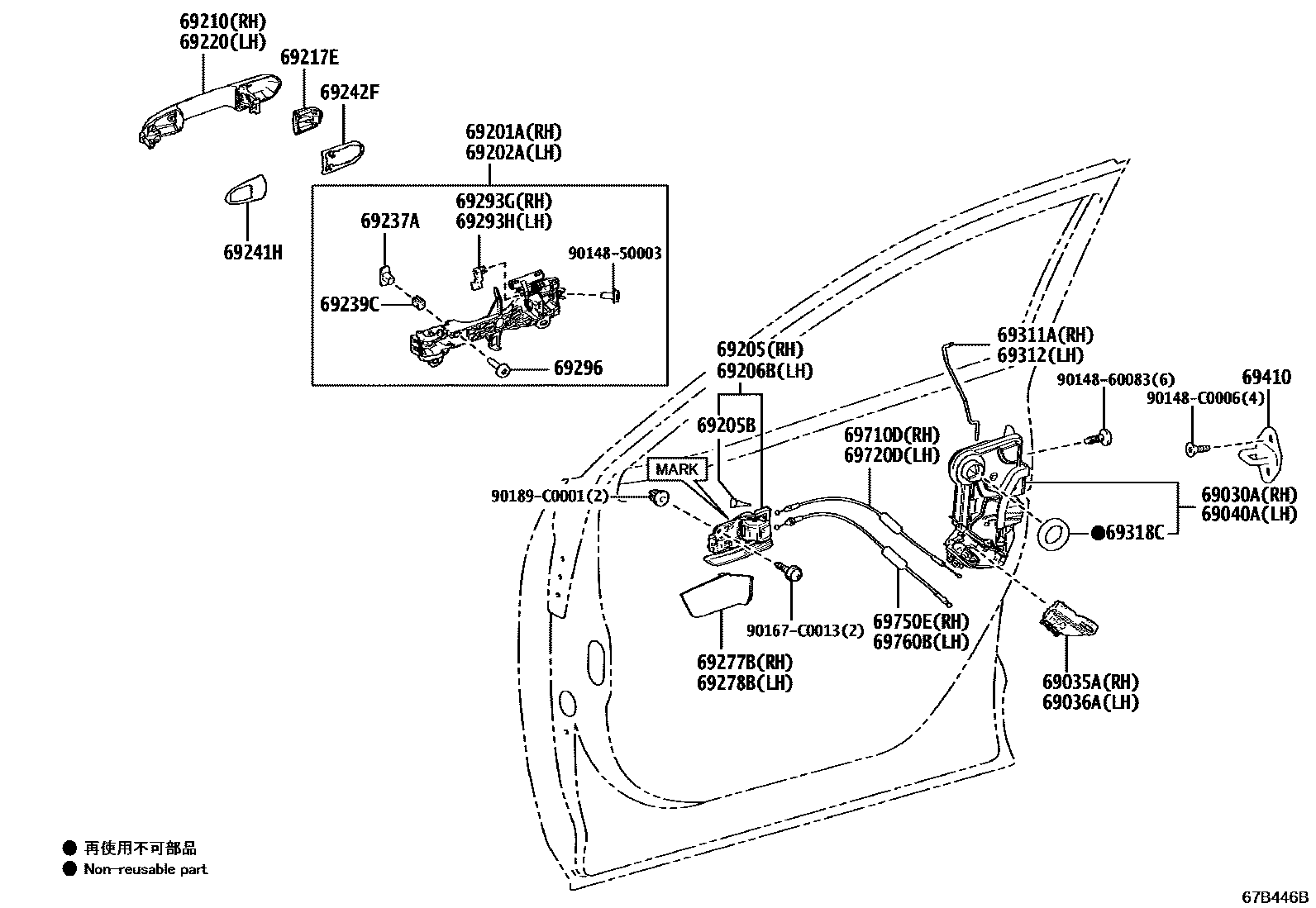

Toyota WILDLANDER PHEV — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#,W/O MARK
BLACK,TRIM2#,MARK = WHITE
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#,W/O MARK
BLACK,TRIM2#,MARK = WHITE
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089 ,2PU
BLACK MC.,209
BLACKISH AGEHA GF.,221
EMOTIONAL RED 2,2SZ ,3U5
EMOTIONAL RED 2,3U5
STEEL BLONDE ME.,4X1
STEEL BLONDE ME.,2TL ,4X1
BLACKISH BROWN MC.,4X9
DK.BLUE M.M.,8W7
DK.BLUE M.M.,2TT ,8W7
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089 ,2PU
METAL STREAM ME,1K0 ,2UY
METAL STREAM ME,1K0
BLACK MC.,209
BLACKISH AGEHA GF.,221
EMOTIONAL RED 2,3U5
EMOTIONAL RED 2,2SZ ,3U5
STEEL BLONDE ME.,4X1
STEEL BLONDE ME.,2TL ,4X1
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089 ,2PU
METAL STREAM ME,1K0
METAL STREAM ME,1K0 ,2UY
BLACK MC.,209
BLACKISH AGEHA GF.,221
EMOTIONAL RED 2,2SZ ,3U5
EMOTIONAL RED 2,3U5
STEEL BLONDE ME.,2TL ,4X1
STEEL BLONDE ME.,4X1
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
BLACK
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089 ,2PU
BLACK MC.,209
BLACKISH AGEHA GF.,221
EMOTIONAL RED 2,3U5
EMOTIONAL RED 2,2SZ ,3U5
STEEL BLONDE ME.,2TL ,4X1
STEEL BLONDE ME.,4X1
BLACKISH BROWN MC.,4X9
DK.BLUE M.M.,8W7
DK.BLUE M.M.,2TT ,8W7
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089 ,2PU
METAL STREAM ME,1K0 ,2UY
METAL STREAM ME,1K0
BLACK MC.,209
BLACKISH AGEHA GF.,221
EMOTIONAL RED 2,3U5
EMOTIONAL RED 2,2SZ ,3U5
STEEL BLONDE ME.,4X1
STEEL BLONDE ME.,2TL ,4X1
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089 ,2PU
METAL STREAM ME,1K0
METAL STREAM ME,1K0 ,2UY
BLACK MC.,209
BLACKISH AGEHA GF.,221
EMOTIONAL RED 2,3U5
EMOTIONAL RED 2,2SZ ,3U5
STEEL BLONDE ME.,2TL ,4X1
STEEL BLONDE ME.,4X1
69237ANUT, FRONT DOOR HANDLE
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242FPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
BLACK,TRIM2#
BLACK
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
BLACK
BLACK,TRIM2#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014850003
9014860083
90148C0006
main90148-C0006
90167C0013
main90167-C0013
90189C0001
main90189-C0001
34 parts on this diagram · 1 diagram in section
