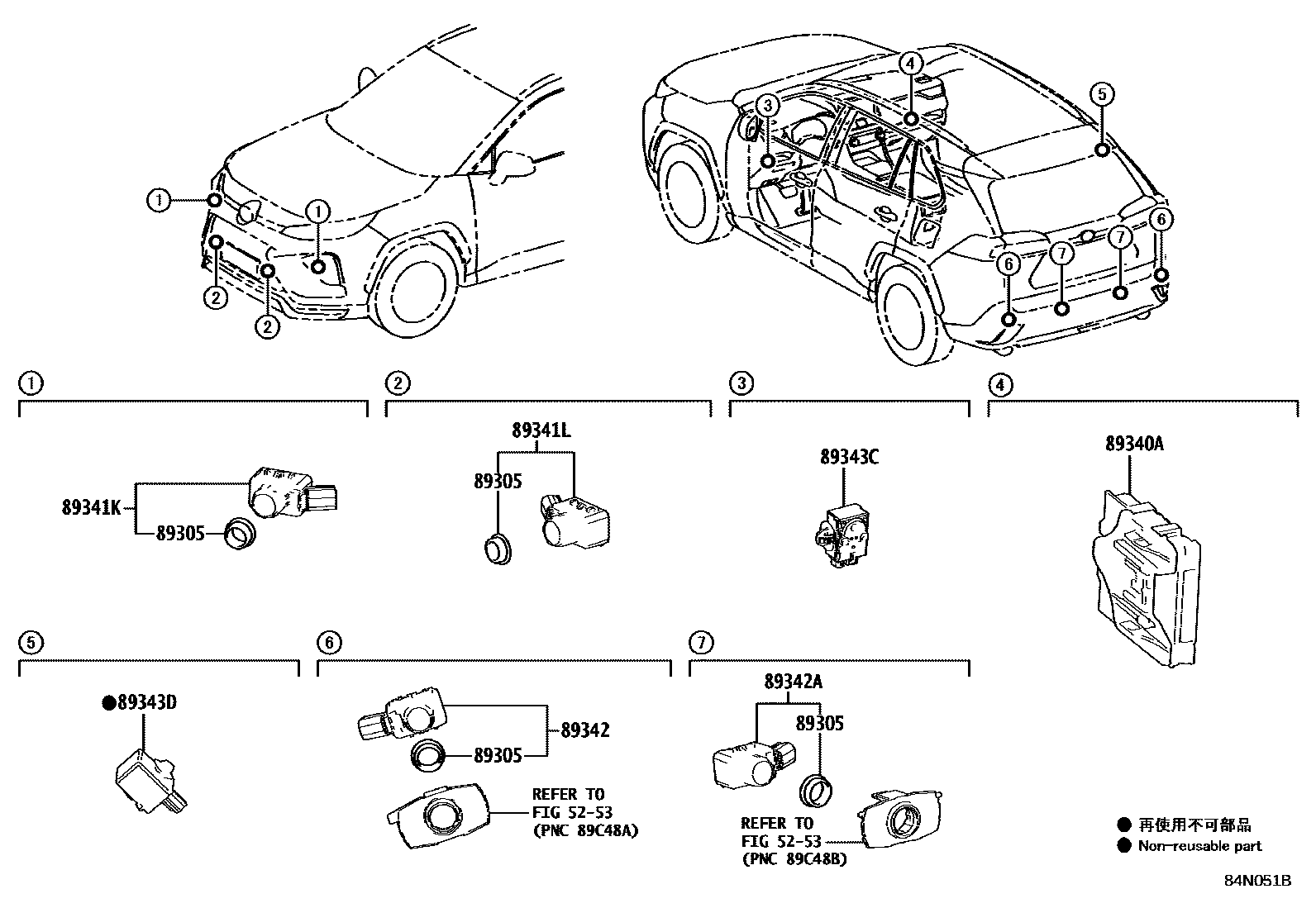

Toyota WILDLANDER PHEV — CLEARANCE & BACK SONAR
5253
89305CUSHION SET, ULTRASONIC SENSOR
89340ACOMPUTER ASSY, CLEARANCE WARNING
*614
*614
89341KSENSOR, ULTRASONIC, FRONT CORNER
BLACK MC.,BLACK PAINT
89341LSENSOR, ULTRASONIC, FRONT CENTER
BLACK MC.,BLACK PAINT
89342SENSOR, ULTRASONIC, REAR CORNER
BLACK MC.,089 ,209 ,221 ,2PU ,2SZ ,2TL ,2TT ,3U5 ,4X1 ,4X9 ,8W7
sub89341-0R100
DUMMY-MAT BLACK
BLACK MC.,089 ,209 ,221 ,2PU ,2SZ ,2TL ,2TT ,3U5 ,4X1 ,4X9 ,8W7
BLACK MC.
BLACK MC.,089 ,1K0 ,209 ,221 ,2PU ,2SZ ,2TL ,2UY ,3U5 ,4X1
89342ASENSOR, ULTRASONIC, REAR CENTER
BLACK MC.,089 ,209 ,221 ,2PU ,2SZ ,2TL ,2TT ,3U5 ,4X1 ,4X9 ,8W7
sub89341-0R100
DUMMY-MAT BLACK
BLACK MC.,089 ,1K0 ,209 ,221 ,2PU ,2SZ ,2TL ,2UY ,3U5 ,4X1
BLACK MC.,089 ,209 ,221 ,2PU ,2SZ ,2TL ,2TT ,3U5 ,4X1 ,4X9 ,8W7
89343CBUZZER, CLEARANCE WARNING, NO.1
89343DBUZZER, CLEARANCE WARNING, NO.2
9 parts on this diagram · 1 diagram in section
