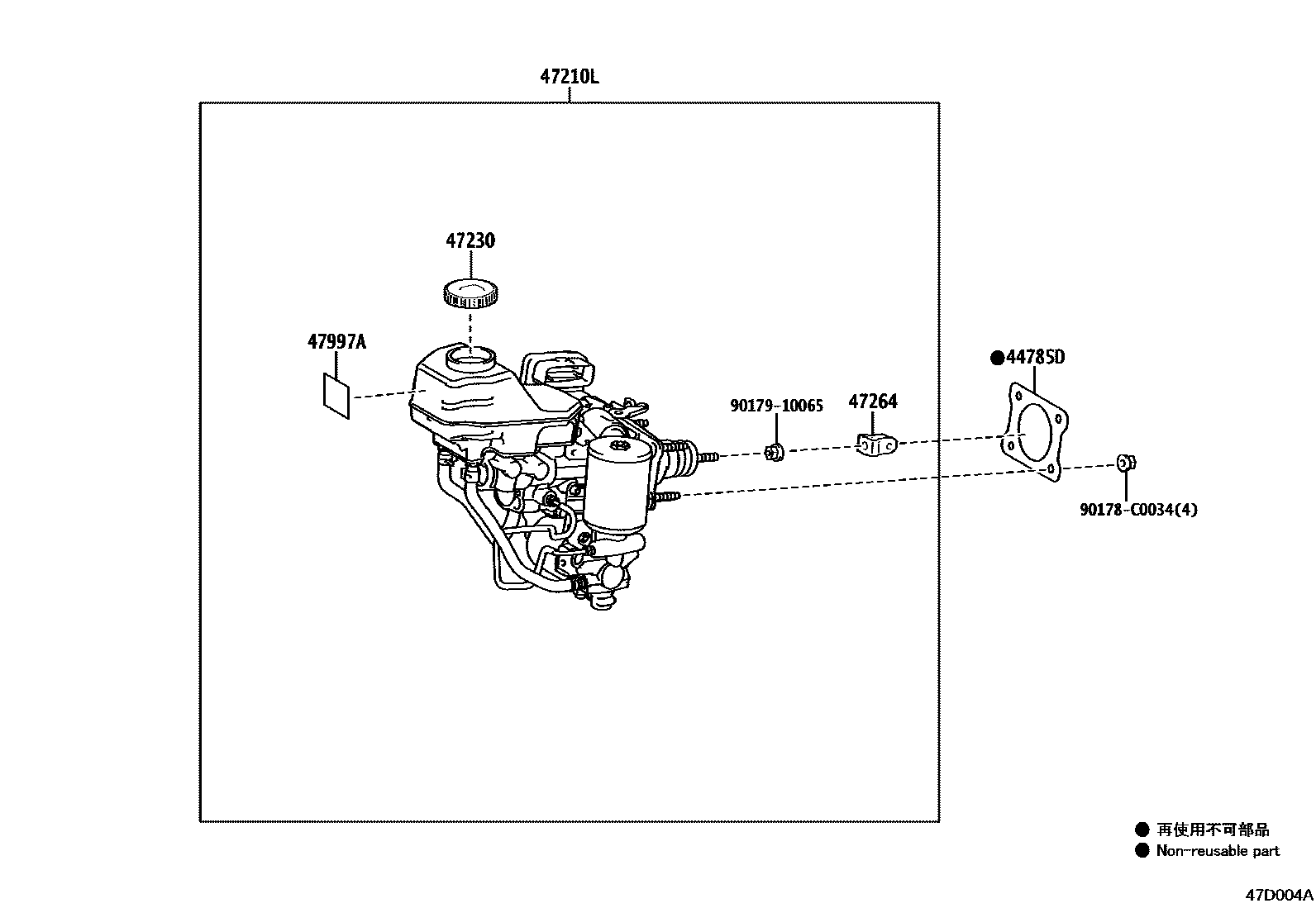

Toyota WILDLANDER PHEV — BRAKE MASTER CYLINDER

44785DGASKET, BRAKE MASTER CYLINDER

main44785-02050iAXAP5#..M202105-202304

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-0R020iAXAP5#..M202105-202304

*614

main47050-0R021iAXAP5#202304-202405

*614

main47050-0R110iAXAP5#202405

*614

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iAXAP5#..M¥770202105-202304

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-12060iAXAP5#..M¥250202105-202304

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iAXAP5#..M¥110202105-202304

90178C0034

main90178-C0034

9017910065

main90179-10065¥90

7 parts on this diagram · 1 diagram in section
