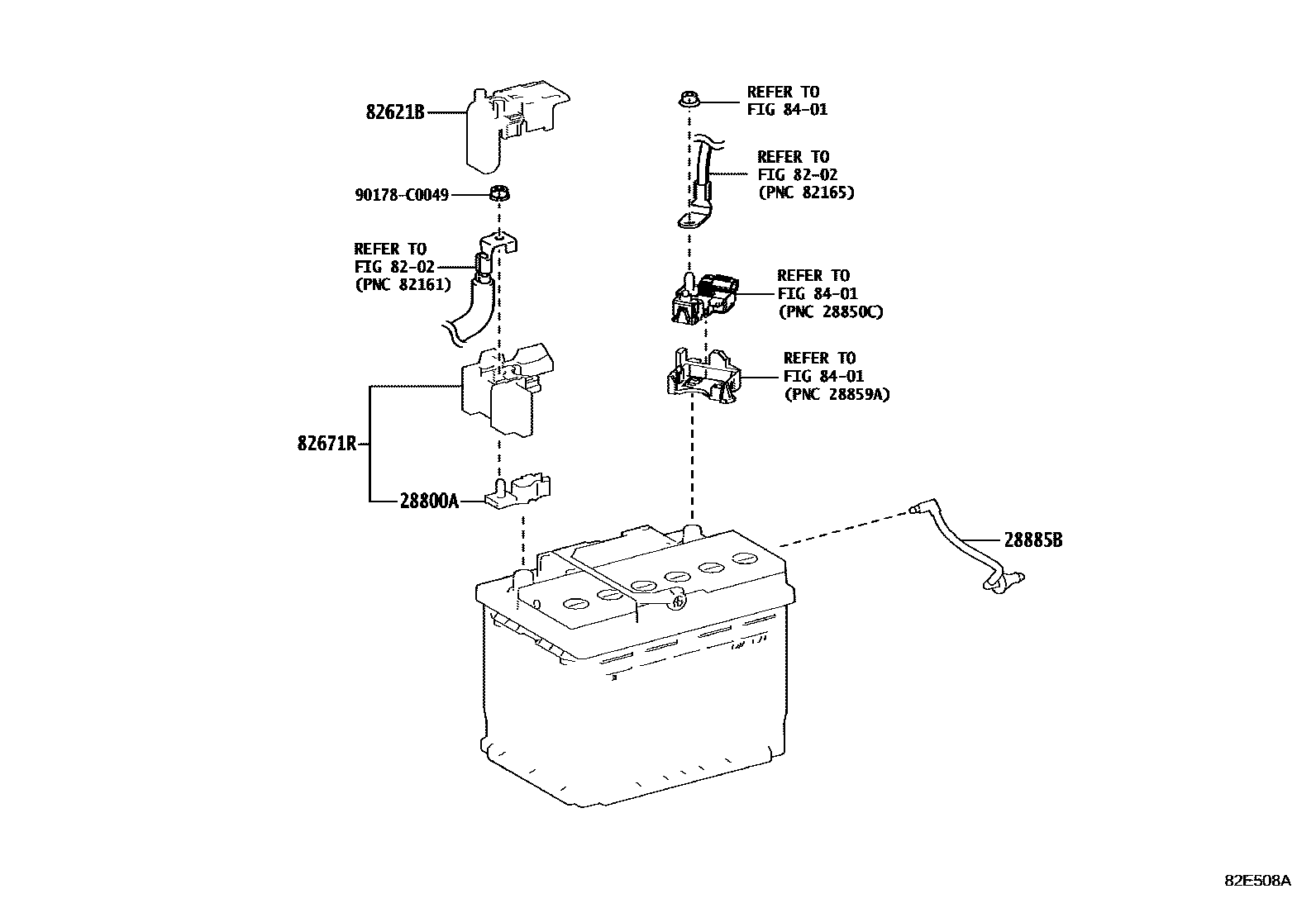

Toyota WILDLANDER PHEV — BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1HV BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY 0006 1HV BATTERY

28800ATERMINAL, BATTERY POSITIVE

main90982-05058iA25DFXS..AXAP5#..M¥860202105-202304

28885BHOSE, BATTERY

main28885-F0060iA25DFXS..AXAP5#..M202105-202304

8202

82621BCOVER, FUSIBLE LINK

main82621-42020iAXAP5#..M¥540202105-202304

82671RSTOPPER, BATTERY TERMINAL

main82670-42010iAXAP5#..M¥2,190202105-202304

8401

90178C0049

main90178-C0049

7 parts on this diagram · 6 diagrams in section
