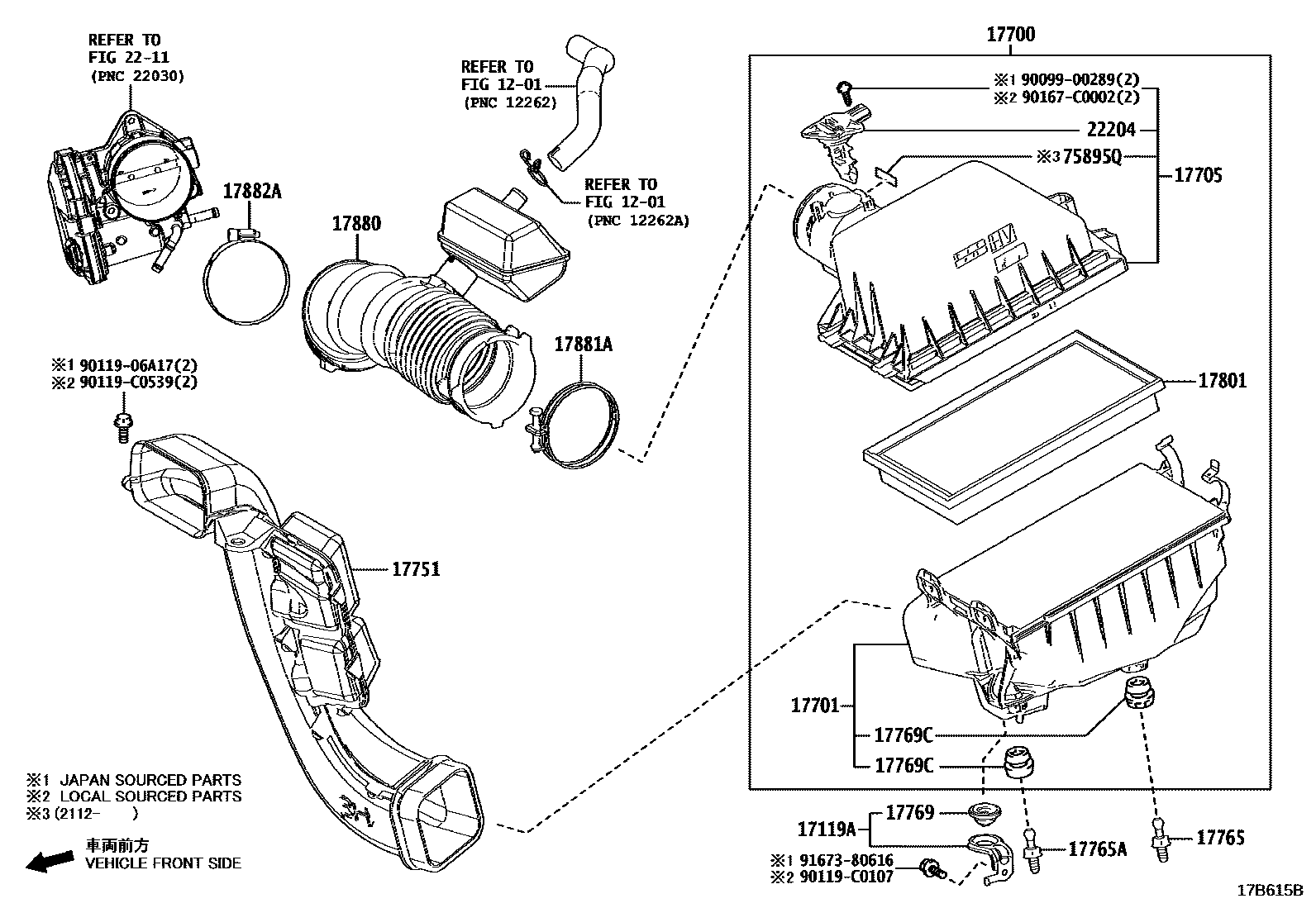

Toyota WILDLANDER PHEV — AIR CLEANER

1201

17119ABRACKET, AIR CLEANER

main17119-F0030iA25DFXS..AXAP5#..M202105-202304

17700CLEANER ASSY, AIR

main17700-F0101iA25DFXS..AXAP5#..M202105-202304

17701CASE SUB-ASSY, AIR CLEANER

main17701-F0041iA25DFXS..AXAP5#..M202105-202304

17705CAP SUB-ASSY, AIR CLEANER

main17705-F0050iA25DFXS..AXAP5#..M202105-202304

17751INLET, AIR CLEANER, NO.1

main17751-F0160iA25DFXS..AXAP5#..M202105-202304

17765STAY, AIR CLEANER, NO.1

main17765-25010iA25DFXS..AXAP5#..M¥230202105-202304

17765ASTAY, AIR CLEANER, NO.1

main17765-25010iA25DFXS..AXAP5#..M¥230202105-202304

17769SUPPORT, AIR CLEANER

main17769-25020iA25DFXS..AXAP5#..M¥160202105-202304

17769CSUPPORT, AIR CLEANER, NO.1

main17769-25030iA25DFXS..AXAP5#..M¥200202105-202304

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-77050iA25DFXS..AXAP5#..M¥2,700202105-202304

(J)

main17801-F0040iA25DFXS..AXAP5#..M202105-202304

(L)

17880HOSE ASSY, AIR CLEANER

main17880-F0150iA25DFXS..AXAP5#..M202105-202304

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850iA25DFXS..AXAP54..A¥240202105-202304

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main17891-31010iA25DFXS..AXAP5#..M¥710202105-202304

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75040iA25DFXS..AXAP5#..M¥9,400202105-202304

75895QTAPE, MOULDING, NO.1

main75895-52050iAXAP5#..M¥260202112-202304

9009900289

main90099-00289¥60

9011906A17

main90119-06A17¥60

90119C0107

main90119-C0107

90119C0539

main90119-C0539

90167C0002

main90167-C0002

9167380616

main91673-80616¥60

23 parts on this diagram · 1 diagram in section
