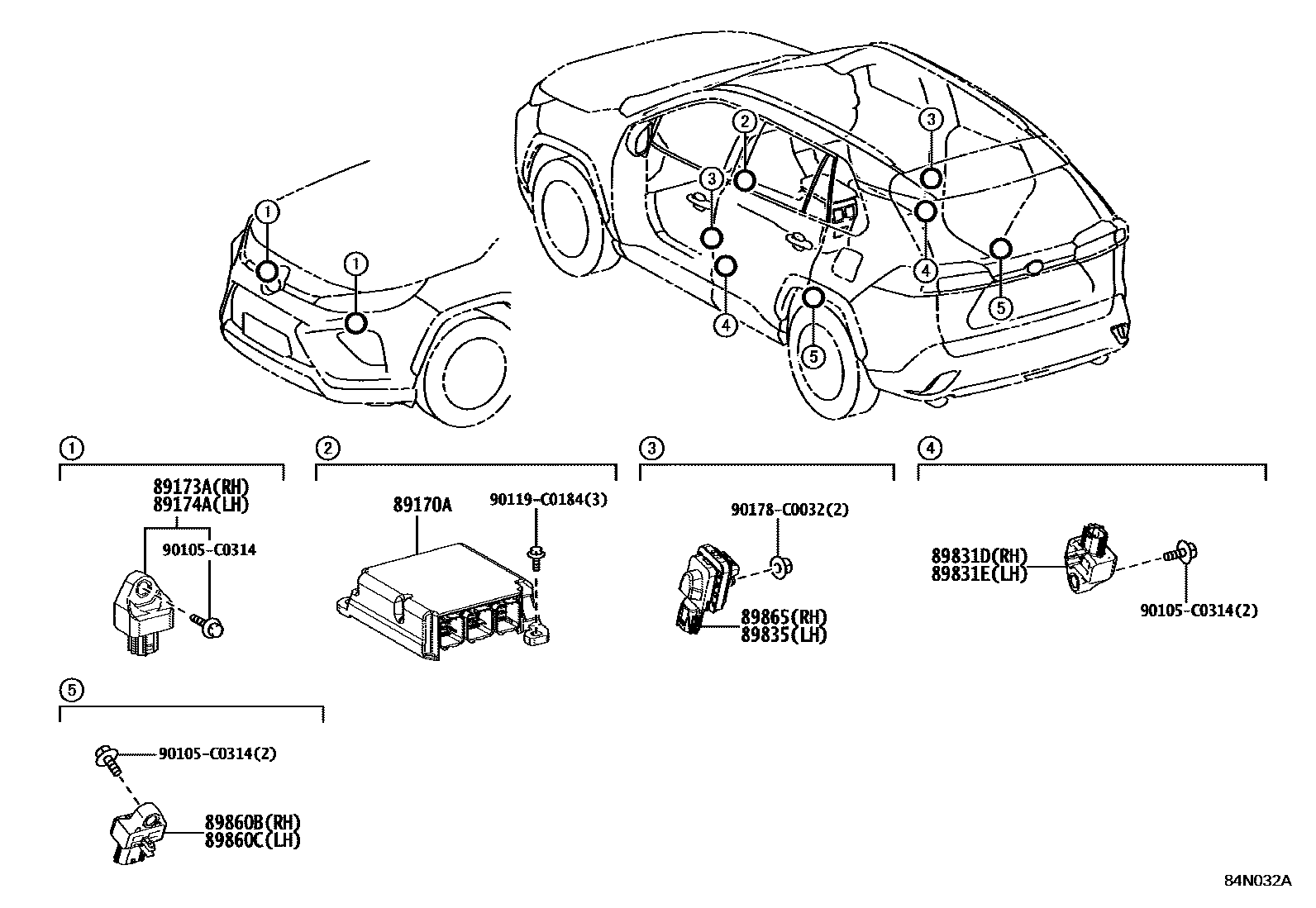

Toyota WILDLANDER PHEV — AIR BAG
89170ACOMPUTER ASSY, AIRBAG
*614
*614
*614
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89831DSENSOR, FLOOR SIDE AIRBAG, RH
89831ESENSOR, FLOOR SIDE AIRBAG, LH
89835SENSOR, DOOR SIDE AIRBAG, LH
89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2
89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2
89865SENSOR, DOOR SIDE AIRBAG, RH
90105C0314
main90105-C0314
90119C0184
main90119-C0184
90178C0032
main90178-C0032
12 parts on this diagram · 1 diagram in section
