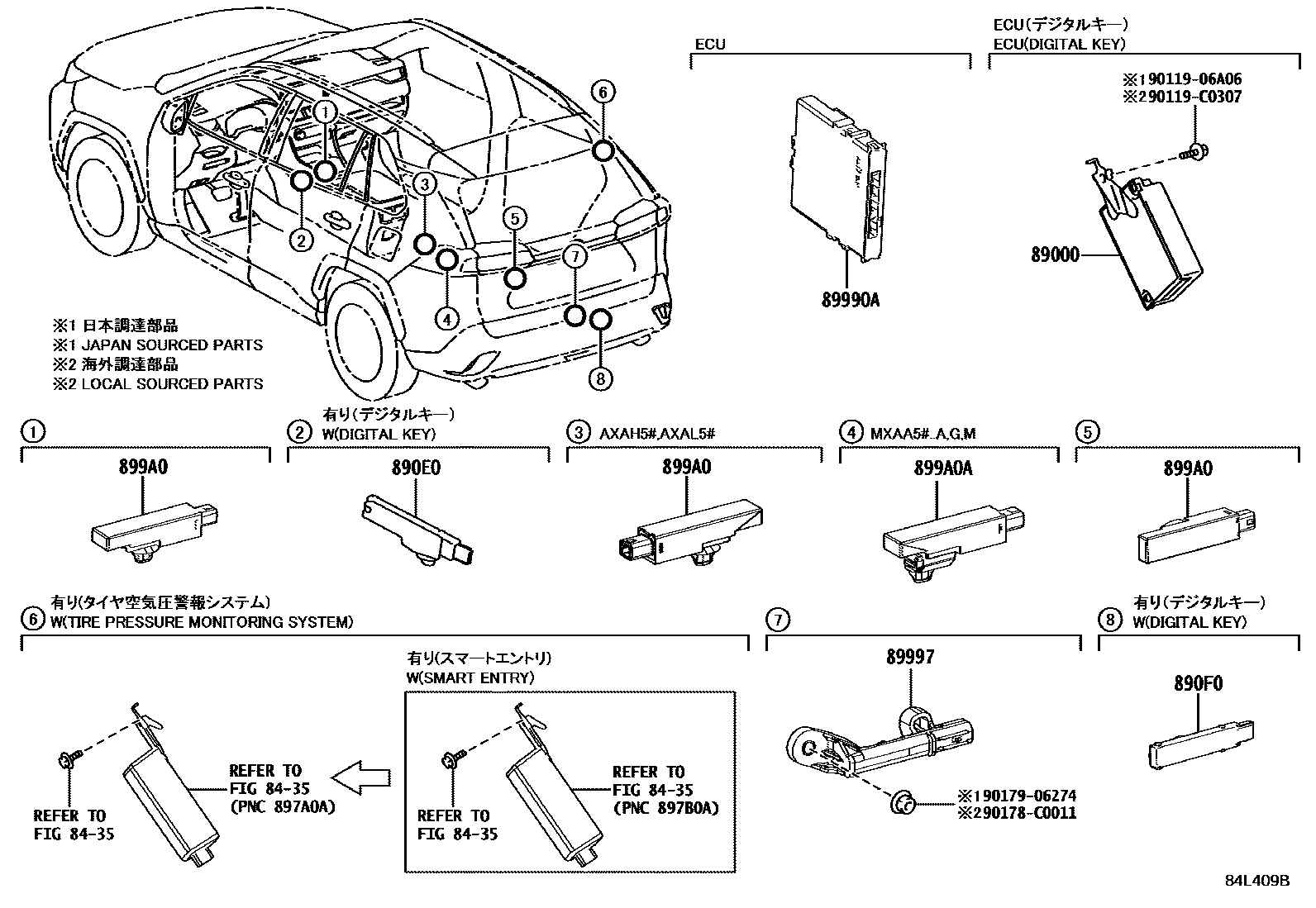

Toyota WILDLANDER (GTMC) — WIRELESS DOOR LOCK

8435

89000COMPUTER ASSY, DIGITAL KEY

main89000-0R060iAXAL54;AXAL52,MXAA5#..G202405

MID & PACKAGE

890E0RECEIVER ASSY, BLE DIGITAL KEY

main890E0-0R040iAXAL54;AXAL52,MXAA5#..G202405

MID & PACKAGE

890F0RECEIVER ASSY, BLE LUGGAGE DIGITAL KEY

main890E0-02030iAXAL54;AXAL52,MXAA5#..G202405

MID & PACKAGE

89990ACOMPUTER ASSY, SMART KEY

main899H0-0R070iMXAA5#..A,G,M202004-202202

main899H0-0R071iMXAA5#..A,G,M202203-202303

main899H0-0R080iAXAH5#..A,G,M202004-202202

main899H0-0R081iAXAH5#..A,G,M202203-202303

main899H0-0R081iAXAL5#..G,M202304-202405

main899H0-0R090iAXAH52..X202004-202202

main899H0-0R091iAXAL52..X202304

main899H0-0R091iAXAH52..X202203-202303

main899H0-0R340iMXAA5#..G,M202304-202405

main899H0-0R410iMXAA5#..G,M202405

main899H0-0R420iAXAL5#..G,M202405

89997ANTENNA, ELECTRICAL KEY

main89997-0E060iAXAH5#,MXAA5#..A,G,M202004-202303

sub89997-0E061

main89997-0E060iAXAL5#,MXAA5#..G,M202304-202305

sub89997-0E061

main89997-0E061iAXAL5#,MXAA5#..G,M202405

main89997-0E061iAXAL5#,MXAA5#..G,M202305-202405

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-02460iAXAL5#,MXAA5#..G,M202405

main899A0-0F010iMXAA5#..A,G,M202004-202303

main899A0-0F010iMXAA5#..G,M202304-202405

main899A0-0F010iAXAL52..X202304

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-02460iAXAL5#..G,M202405

main899A0-0R040iMXAA5#..A,G,M202004-202303

main899A0-0R040iMXAA5#..G,M202304-202405

main899A0-0R090iMXAA5#..G,M202405

9011906A06

main90119-06A06¥60

90119C0307

main90119-C0307

90178C0011

main90178-C0011

9017906274

main90179-06274¥70

12 parts on this diagram · 1 diagram in section
