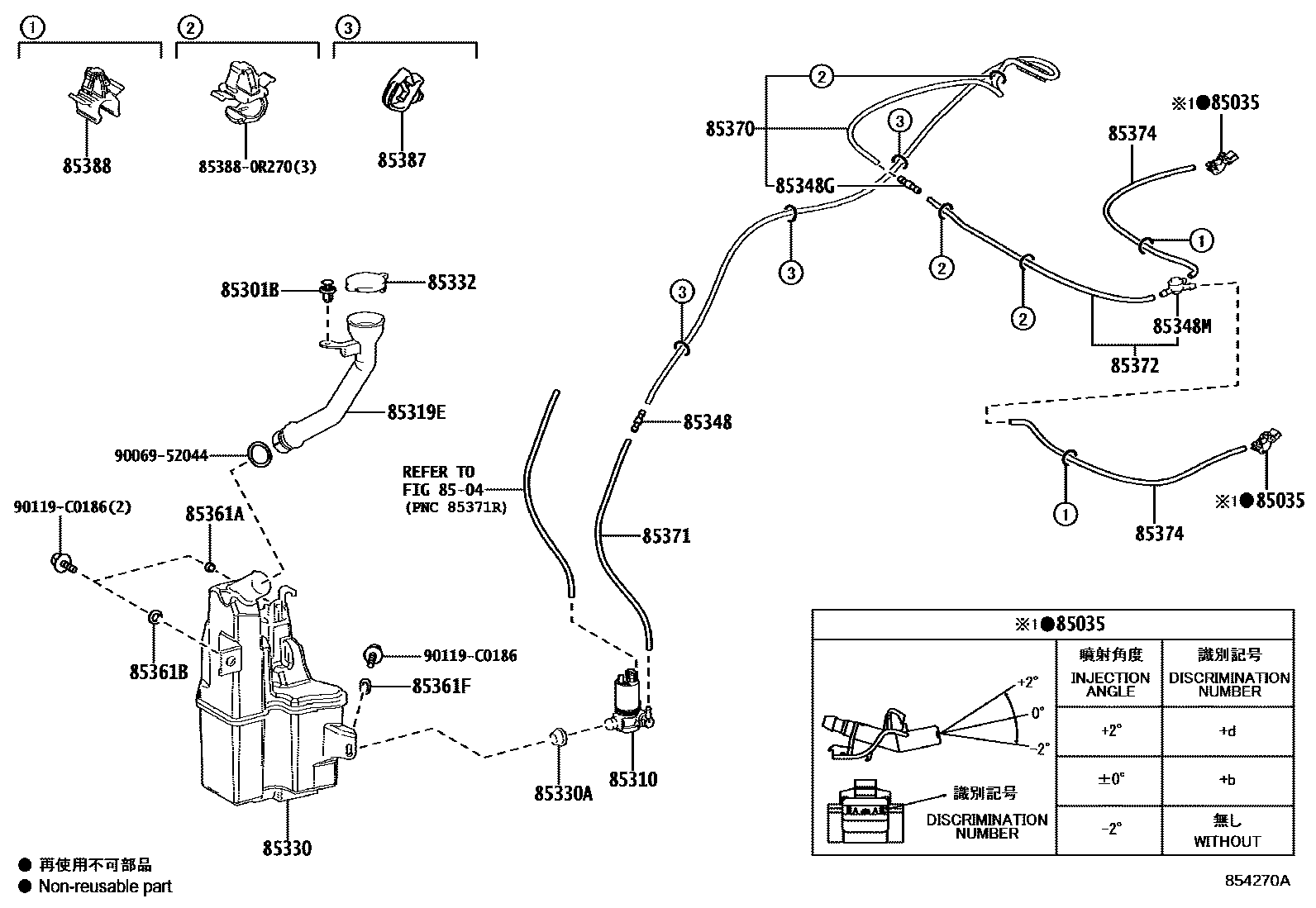

Toyota WILDLANDER (GTMC) — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE +2
8504
85301BCLIP, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319EINLET WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85361ABRACKET, WINDSHIELD WASHER, NO.1
85361BBRACKET, WINDSHIELD WASHER, NO.2
85361FBRACKET, WINDSHIELD WASHER, NO.3
85370HOSE ASSY, WINDSHIELD WASHER
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
*H,L=380
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=530
85374HOSE, WINDSHIELD WASHER (FROM NOZZLE TO NOZZLE)
L=490
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
(L)
(J)
85388CLAMP NO.2 (FOR WINDSEIELD WASHER)
(J)
(L)
853880R270CLAMP NO.2 (FOR WINDSEIELD WASHER)
main85388-0R270
9006952044
main90069-52044
90119C0186
main90119-C0186
23 parts on this diagram · 1 diagram in section
