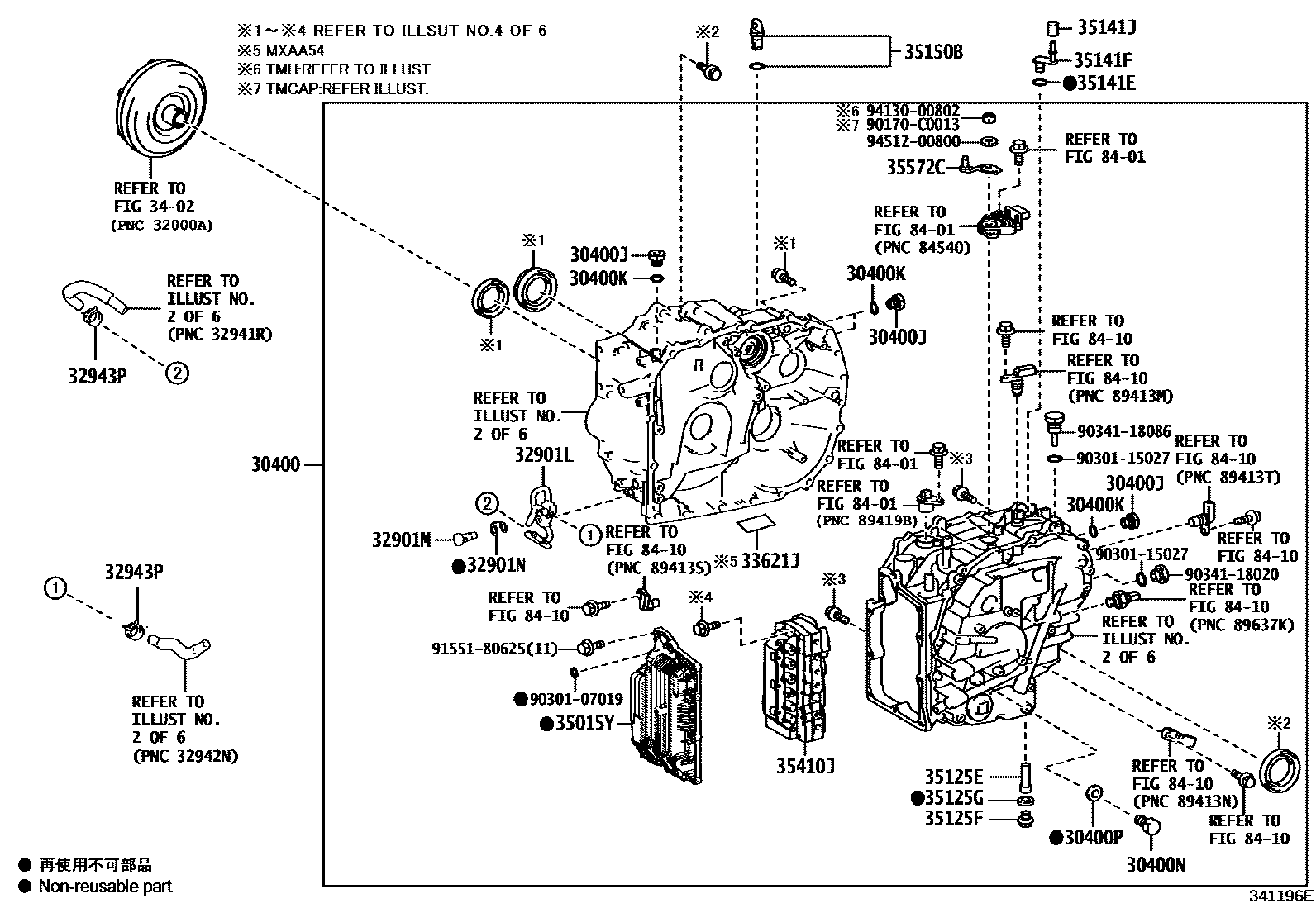

Toyota WILDLANDER (GTMC) — TRANSAXLE ASSY(CVT)

0001 1K120,K120F 0002 1K120,K120F 0003 1K120,K120F 0004 1K120,K120F 0005 1K120,K120F 0006 1K120,K120F 0007 1K121,K121F 0008 1K121,K121F 0009 1K121,K121F 0010 1K121,K121F 0011 1K121,K121F 0012 1K121,K121F

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-0R010iMXAA52202104-202303

K120,TMCAP:REFER ILLUST.

main30400-0R020iMXAA52202304-202405

K121,TMCAP:REFER ILLUST.

main30400-42100iMXAA52202004-202303

K120,TMH:REFER TO ILLUST.

main30400-42120iMXAA54202004-202303

K120F

main30400-42160iMXAA52202304-202405

K121,TMH:REFER TO ILLUST.

main30400-42170iMXAA54202304-202405

K121F

30400JPLUG, TRANSAXLE HOLE

main90341-08001iMXAA5#¥120202004-202405

30400KGASKET, TRANSAXLE HOLE PLUG

main90301-06196iMXAA54¥170202004-202405

TMH:REFER TO ILLUST.

main90301-C0061iMXAA52202104-202405

TMCAP:REFER ILLUST.

30400NPLUG, REFILL(CVT)

main90341-18077iMXAA52¥190202004-202405

TMH:REFER TO ILLUST.

main90341-C0011iMXAA52202104-202405

TMCAP:REFER ILLUST.

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iMXAA5#¥110202004-202405

main90430-18008iMXAA5#¥110202401-202405

(J)

main90430-C0007iMXAA52202401-202405

(L)

32901LELBOW SUB-ASSY, OIL COOLER

main32901-42010iMXAA5#¥2,610202004-202405

32901MBOLT, UNION(FOR OIL COOLER)

main90401-14019iMXAA5#¥310202004-202405

32901NGASKET(FOR OIL COOLER UNION)

main90430-14017iMXAA5#¥80202004-202405

32943PCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iMXAA5#¥180202304-202405

(J)

main90466-C0024iMXAA5#202304-202405

(L)

main90466-C0024iMXAA5#202004-202303

33621JLABEL, TRANSAXLE OIL INFORMATION

main33621-28021iMXAA54¥120202004-202405

3402

35015YCOVER SUB-ASSY, TRANSAXLE SIDE

main35015-42010iMXAA5#¥8,700202004-202303

main35015-42020iMXAA5#202304-202405

35125ETUBE, OVERFLOW(CVT)

main35125-12500iMXAA5#¥300202004-202405

35125FPLUG, OVERFLOW(CVT)

main90341-18016iMXAA5#¥190202004-202405

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-18008iMXAA5#¥110202401-202405

(J)

main90430-18008iMXAA52¥110202004-202405

main90430-C0007iMXAA52202401-202405

(L)

35141ERING, O(FOR BREATHER PLUG)

main90301-09173iMXAA5#¥140202004-202405

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03240iMXAA5#¥660202004-202405

35141JPLUG, BREATHER, NO.2(CVT)

main90930-03243iMXAA5#¥140202004-202405

35150BPLUG ASSY, TRANSMISSION CASE

main35150-02040iMXAA5#202105-202303

main35150-48010iMXAA5#¥280202004-202104

35410JBODY ASSY, TRANSMISSION VALVE

main35410-10240iMXAA52202304-202405

TMCAP:REFER ILLUST.

main35410-12880iMXAA54¥71,000202004-202005

TMH:REFER TO ILLUST.

sub35410-12881¥53,700

main35410-12881iMXAA54¥53,700202006-202303

TMH:REFER TO ILLUST.

main35410-42070iMXAA52202104-202303

TMCAP:REFER ILLUST.

sub35410-12881¥53,700

main35410-42080iMXAA5#202304-202405

TMH:REFER TO ILLUST.

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12190iMXAA5#¥590202004-202405

8401

8410

90170C0013

main90170-C0013

9030107019

main90301-07019¥170

9030115027

main90301-15027¥130

9034118020

main90341-18020¥310

9034118086

main90341-18086¥310

9155180625

main91551-80625¥60

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

31 parts on this diagram · 12 diagrams in section
