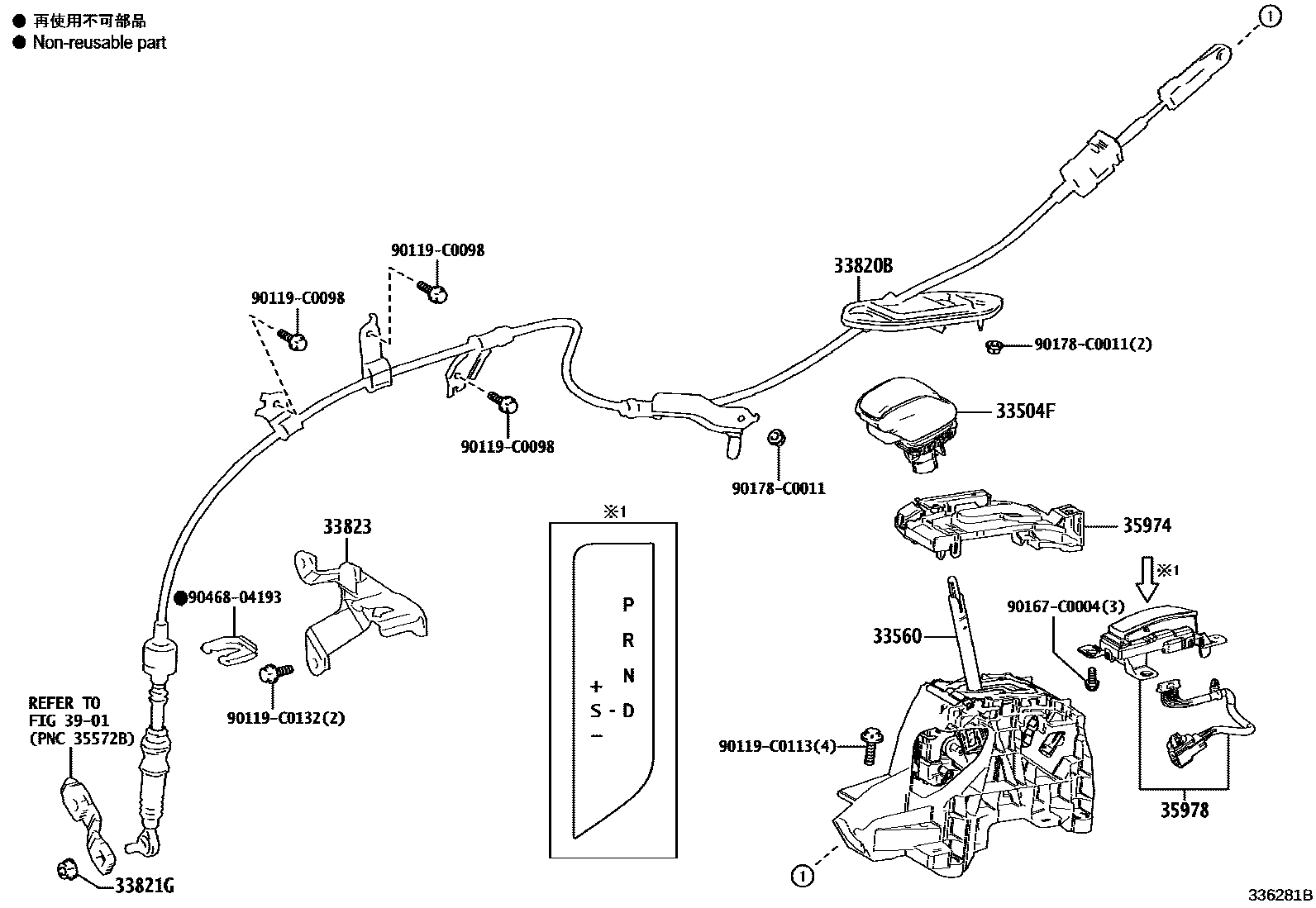

Toyota WILDLANDER (GTMC) — SHIFT LEVER & RETAINER

0001 1 0003 1 0005 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0R150-C0iMXAA52..X202004-202405

BLACK,TRIM2#

main33504-0R150-C0iMXAA5#..A,M202004-202112

BLACK,TRIM1#,2#

main33504-0R160-C0iAXAH52,MXAA5#..G202004-202303

BLACK,TRIM1#,2#

main33504-0R160-C0iAXAL5#,MXAA5#..G,M202405

BLACK,TRIM0#,2#

main33504-0R160-C0iAXAL5#,MXAA5#..G,M202304-202405

BLACK,TRIM0#,1#,2#

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-0R110iAXAL52..X202111-202405

main33560-F4120iMXAA52..X202004-202405

main33560-F4130iMXAA5#..G,M202004-202405

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-0R212iMXAA5#202004-202405

main33820-0R220iAXAL52..G,M202004-202405

main33820-0R230iAXAH54202004-202405

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90178-C0034iAXAH5#202004-202405

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-0R120iAXAL52..X202004-202405

main33823-F4050iMXAA5#202004-202405

35974HOUSING, POSITION INDICATOR, LOWER

main35974-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

35978INDICATOR, SHIFT POSITION

main35978-0R050iMXAA5#202004-202303

main35978-0R060iAXAH5#202004-202405

main35978-0R080iMXAA5#202304-202405

3901

90119C0098

main90119-C0098

90119C0113

main90119-C0113

90119C0132

main90119-C0132

90167C0004

main90167-C0004

90178C0011

main90178-C0011

9046804193

main90468-04193¥160

14 parts on this diagram · 3 diagrams in section
