Toyota WILDLANDER (GTMC) — SEAT & SEAT TRACK

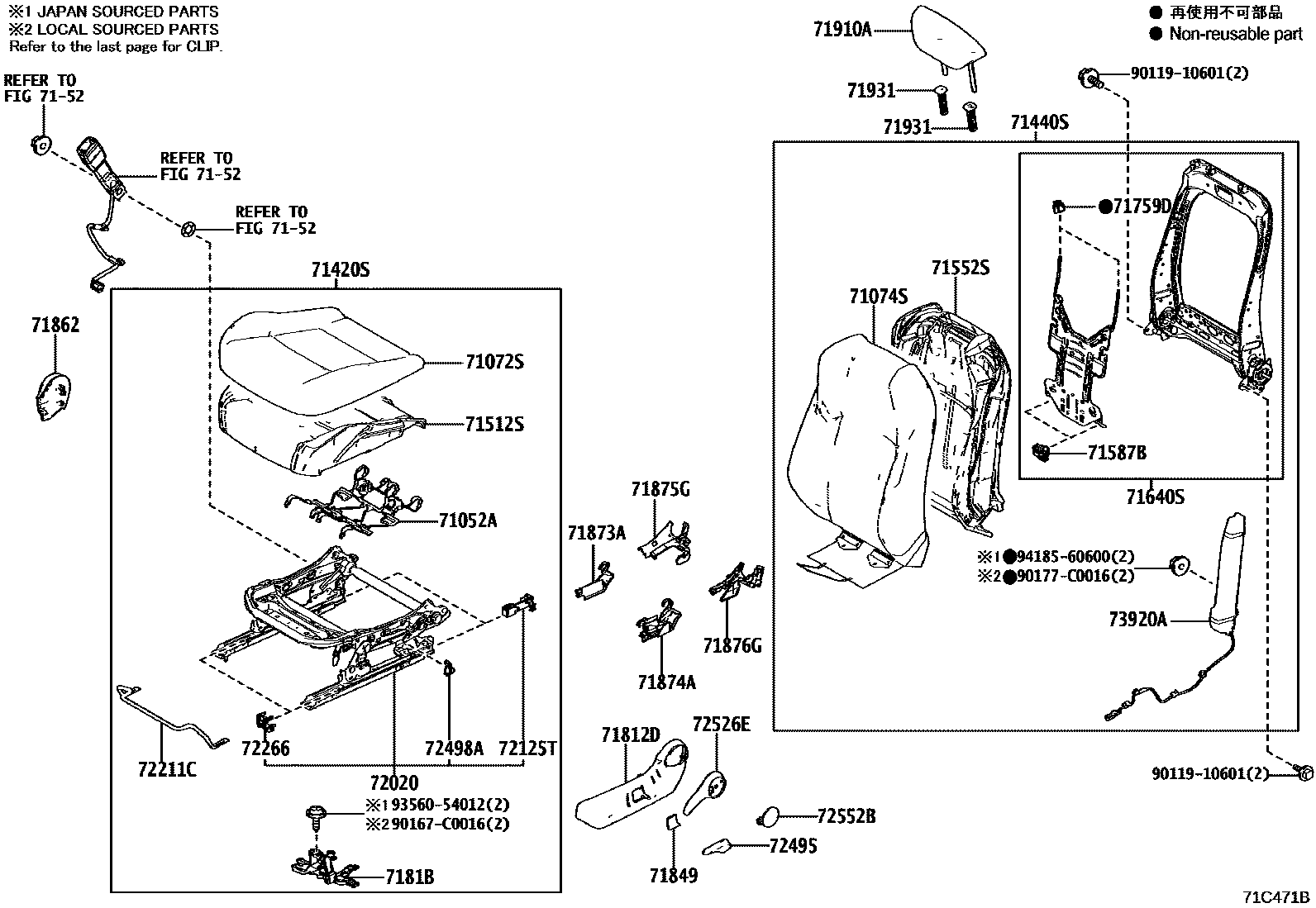

Parts diagram
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
main71051-06040i202304-202405
main71051-06040i202405
main71051-06040i202004-202303
main71051-06040i202304
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-0R380-A0i202405
FROMAGE,TRIM0#
main71072-0R380-A0i202304-202405
FROMAGE,TRIM0#
main71072-0R380-C6i202405
BLACK/BLACK,TRIM2#
main71072-0R380-C6i202004-202303
BLACK/BLACK,TRIM2#
main71072-0R380-C6i202304-202405
BLACK/BLACK,TRIM2#
main71072-0R380-C7i202004-202303
BLACK/LT.GRAY,TRIM1#
main71072-0R430-C4i202405
BLACK/GRAY,TRIM2#
main71072-0R430-C4i202004-202303
BLACK/GRAY,TRIM2#
main71072-0R430-C4i202304-202405
BLACK/GRAY,TRIM2#
main71072-0R430-C4i202304
BLACK/GRAY,TRIM2#
main71072-0R440-J3i202004-202303
BLACK/BLUE/BLACK,TRIM2#
main71072-0R440-J4i202004-202303
BLACK/BLUE/LT.GRAY,TRIM1#
main71072-0R480-C4i202004-202207
BLACK/BLACK,TRIM2#
main71072-0R480-C5i202004-202207
BLACK/LT.GRAY,TRIM1#
main71072-0R630-A3i202405
FROMAGE,TRIM0#
main71072-0R630-A3i202405
MID & PACKAGE,FROMAGE,TRIM0#
main71072-0R630-C5i202405
MID & PACKAGE,BLACK/BLACK,TRIM2#
main71072-0R630-C5i202405
BLACK/BLACK,TRIM2#
main71072-0R760-C0i202207-202303
BLACK/BLACK,TRIM2#
main71072-0R760-C1i202207-202303
BLACK/LT.GRAY,TRIM1#
main71072-0R800-A0i202304-202405
FROMAGE,TRIM0#
main71072-0R800-A1i202405
FROMAGE,TRIM0#
main71072-0R800-C0i202304-202405
BLACK,TRIM2#
main71072-0R800-C1i202405
BLACK,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-0R450-B3i202004-202201
LT.GRAY,TRIM1#
main71074-0R450-C1i202004-202201
BLACK,TRIM2#
main71074-0R500-C3i202304-202405
BLACK/GRAY,TRIM2#
main71074-0R500-C3i202304
BLACK/GRAY,TRIM2#
main71074-0R500-C3i202405
BLACK/GRAY,TRIM2#
main71074-0R500-C3i202004-202303
BLACK/GRAY,TRIM2#
main71074-0R510-B2i202004-202303
LT.GRAY,TRIM1#
main71074-0R510-C0i202004-202303
BLACK,TRIM2#
main71074-0R540-B0i202004-202207
LT.GRAY,TRIM1#
main71074-0R540-C0i202004-202207
BLACK,TRIM2#
main71074-0R840-A0i202304-202405
FROMAGE,TRIM0#
main71074-0R840-B0i202207-202303
LT.GRAY,TRIM1#
main71074-0R840-C0i202304-202405
BLACK,TRIM2#
main71074-0R840-C0i202207-202303
BLACK,TRIM2#
main71074-0R870-A1i202405
FROMAGE,TRIM0#
main71074-0R870-A1i202304-202405
FROMAGE,TRIM0#
main71074-0R870-B0i202201-202206
LT.GRAY,TRIM1#
main71074-0R870-B1i202206-202303
LT.GRAY,TRIM1#
main71074-0R870-C0i202201-202206
BLACK,TRIM2#
main71074-0R870-C1i202405
BLACK,TRIM2#
main71074-0R870-C1i202206-202303
BLACK,TRIM2#
main71074-0R870-C1i202304-202405
BLACK,TRIM2#
main71074-0RD20-A1i202405
FROMAGE,TRIM0#
main71074-0RD20-A1i202405
MID & PACKAGE,FROMAGE,TRIM0#
main71074-0RD20-C1i202405
BLACK,TRIM2#
main71074-0RD20-C1i202405
MID & PACKAGE,BLACK,TRIM2#
main71074-0RD30-A2i202405
FROMAGE,TRIM0#
main71074-0RD30-C2i202405
BLACK,TRIM2#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-0R350-B4i202004-202207
LT.GRAY,TRIM1#
main71420-0R350-C4i202004-202207
BLACK,TRIM2#
main71420-0R360-B3i202004-202303
LT.GRAY,TRIM1#
main71420-0R360-C3i202004-202303
BLACK,TRIM2#
main71420-0R390-C4i202304
BLACK,TRIM2#
main71420-0R390-C4i202004-202303
BLACK,TRIM2#
main71420-0R390-C4i202304-202405
BLACK,TRIM2#
main71420-0R390-C4i202405
BLACK,TRIM2#
main71420-0R400-B2i202004-202303
LT.GRAY,TRIM1#
main71420-0R400-C1i202004-202303
BLACK,TRIM2#
main71420-0R800-B0i202207-202303
LT.GRAY,TRIM1#
main71420-0R800-C0i202207-202303
BLACK,TRIM2#
main71420-0R810-A0i202304-202405
FROMAGE,TRIM0#
main71420-0R810-A1i202405
FROMAGE,TRIM0#
main71420-0R810-C0i202304-202405
BLACK,TRIM2#
main71420-0R810-C1i202405
BLACK,TRIM2#
main71420-0R850-A0i202405
FROMAGE,TRIM0#
main71420-0R850-A0i202304-202405
FROMAGE,TRIM0#
main71420-0R850-C0i202304-202405
BLACK,TRIM2#
main71420-0R850-C0i202405
BLACK,TRIM2#
main71420-0R870-A1i202405
FROMAGE,TRIM0#
main71420-0R870-A1i202405
MID & PACKAGE,FROMAGE,TRIM0#
main71420-0R870-C1i202405
BLACK,TRIM2#
main71420-0R870-C1i202405
MID & PACKAGE,BLACK,TRIM2#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-0R400-B2i202004-202207
LT.GARY,TRIM1#
main71440-0R400-C2i202004-202207
BLACK,TRIM2#
main71440-0R410-B3i202004-202201
LT.GRAY,TRIM1#
main71440-0R410-C1i202004-202201
BLACK,TRIM2#
main71440-0R440-C3i202405
BLACK,TRIM2#
main71440-0R440-C3i202004-202303
BLACK,TRIM2#
main71440-0R440-C3i202304-202405
BLACK,TRIM2#
main71440-0R440-C3i202304
BLACK,TRIM2#
main71440-0R450-B2i202004-202303
LT.GRAY,TRIM1#
main71440-0R450-C0i202004-202303
BLACK,TRIM2#
main71440-0R890-B0i202207-202303
LT.GRAY,TRIM1#
main71440-0R890-C0i202207-202303
BLACK,TRIM2#
main71440-0RA00-A0i202304-202405
FROMAGE,TRIM0#
main71440-0RA00-C0i202304-202405
BLACK,TRIM2#
main71440-0RA40-B0i202201-202206
LT.GRAY,TRIM1#
main71440-0RA40-B1i202206-202303
LT.GRAY,TRIM1#
main71440-0RA40-C0i202201-202206
BLACK,TRIM2#
main71440-0RA40-C1i202206-202303
BLACK,TRIM2#
main71440-0RA60-A1i202405
FROMAGE,TRIM0#
main71440-0RA60-A1i202304-202405
FROMAGE,TRIM0#
main71440-0RA60-C1i202304-202405
BLACK,TRIM2#
main71440-0RA60-C1i202405
BLACK,TRIM2#
main71440-0RE50-A1i202405
FROMAGE,TRIM0#
main71440-0RE50-A1i202405
MID & PACKAGE,FROMAGE,TRIM0#
main71440-0RE50-C1i202405
MID & PACKAGE,BLACK,TRIM2#
main71440-0RE50-C1i202405
BLACK,TRIM2#
main71440-0RE60-A2i202405
FROMAGE,TRIM0#
main71440-0RE60-C2i202405
BLACK,TRIM2#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-0R210i202304-202405
main71512-0R210i202405
main71512-0R210i202004-202303
main71512-0R210i202304
main71512-0R220i202004-202303
main71512-0R220i202405
main71512-0R220i202304-202405
main71512-0R250i202405
main71512-0R250i202310-202405
main71512-0R250i202304-202310
7152
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-0R240i202304-202405
main71552-0R240i202004-202303
main71552-0R240i202304
main71552-0R240i202405
main71552-0R260i202004-202303
main71552-0R260i202405
main71552-0R260i202304-202405
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-06010i202304-202405
main71587-06010i202304
main71587-06010i202405
main71587-06010i202004-202303
71587BPROTECTOR, FRONT SEATBACK EDGE
main71587-06010i202304-202405
main71587-06010i202405
main71587-06010i202004-202303
main71587-06010i202304
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-0R250i202004-202303
main71640-0R250i202405
main71640-0R250i202304-202405
main71640-0R250i202304
main71640-0R260i202004-202303
main71640-0R390i202304-202405
main71640-0R390i202405
main71640-0R400i202405
main71640-0R400i202304-202405
71759DHOOK, FRONT SEATBACK, NO.2
main71759-06030i202405
main71759-06030i202004-202303
main71759-06030i202304
main71759-06030i202304-202405
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-0R180-C0i202004-202303
BLACK,TRIM1#,2#
main71812-0R180-C0i202405
BLACK,TRIM2#
main71812-0R180-C0i202304-202405
BLACK,TRIM2#
main71812-0R180-C0i202304
BLACK,TRIM2#
main71812-0R180-C0i202004-202303
BLACK,TRIM2#
main71812-0R190-C0i202004-202303
AUDIO-AVN & 6SPEAKER GUN METALLIC,BLACK,TRIM1#,2#
main71812-0R190-C0i202405
BLACK,TRIM0#,2#
main71812-0R190-C0i202004-202303
BLACK,TRIM1#,2#
main71812-0R190-C0i202004-202303
SRS AIR BAG-W(PASSENGER CUSHION)&AUDIO-AVN & 6SPEAKER GUN METALLIC,BLACK,TRIM1#,2#
main71812-0R190-C0i202304-202405
BLACK,TRIM0#,1#,2#
7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH
main7181B-06010i202405
main7181B-06010i202004-202303
main7181B-06010i202304-202405
main7181B-06010i202304
main7181B-0R040i202004-202303
AUDIO-AVN & 6SPEAKER GUN METALLIC
main7181B-0R040i202004-202303
SRS AIR BAG-W(PASSENGER CUSHION)&AUDIO-AVN & 6SPEAKER GUN METALLIC
main7181B-0R040i202405
main7181B-0R040i202304-202405
71849CAP, SEAT ADJUSTER COVER, LH
main71849-0R030-C0i202405
BLACK,TRIM2#
main71849-0R030-C0i202004-202303
BLACK,TRIM2#
main71849-0R030-C0i202004-202303
BLACK,TRIM1#,2#
main71849-0R030-C0i202304-202405
BLACK,TRIM2#
main71849-0R030-C0i202304
BLACK,TRIM2#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-06340-C0i202304-202405
BLACK,TRIM0#,1#,2#
main71862-06340-C0i202405
BLACK,TRIM2#
main71862-06340-C0i202405
BLACK,TRIM0#,2#
main71862-06340-C0i202004-202303
BLACK,TRIM2#
main71862-06340-C0i202004-202303
BLACK,TRIM1#,2#
main71862-06340-C0i202304-202405
BLACK,TRIM2#
main71862-06340-C0i202304
BLACK,TRIM2#
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71874-0R090i202405
main71874-0R090i202004-202303
main71874-0R090i202304-202405
main71874-0R090i202304
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-0R080i202304
main71874-0R080i202304-202405
main71874-0R080i202004-202303
main71874-0R080i202405
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71876-0R070-C0i202004-202303
BLACK,TRIM1#,2#
main71876-0R070-C0i202405
BLACK,TRIM2#
main71876-0R070-C0i202405
BLACK,TRIM0#,2#
main71876-0R070-C0i202004-202303
BLACK,TRIM2#
main71876-0R070-C0i202304-202405
BLACK,TRIM2#
main71876-0R070-C0i202304-202405
BLACK,TRIM0#,1#,2#
main71876-0R070-C0i202304
BLACK,TRIM2#
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-0R060-C0i202405
BLACK,TRIM2#
main71876-0R060-C0i202405
BLACK,TRIM0#,2#
main71876-0R060-C0i202004-202303
BLACK,TRIM2#
main71876-0R060-C0i202004-202303
BLACK,TRIM1#,2#
main71876-0R060-C0i202304-202405
BLACK,TRIM2#
main71876-0R060-C0i202304-202405
BLACK,TRIM0#,1#,2#
main71876-0R060-C0i202304
BLACK,TRIM2#
71910AHEADREST ASSY, FRONT SEAT
main71910-0R260-C1i202004-202303
BLACK,TRIM2#
main71910-0R260-C1i202405
BLACK,TRIM2#
main71910-0R260-C1i202304-202405
BLACK,TRIM2#
main71910-0R270-A2i202405
FROMAGE,TRIM0#
main71910-0R270-A2i202304-202405
FROMAGE,TRIM0#
main71910-0R270-A3i202405
FROMAGE/SAND BROWN,TRIM0#
main71910-0R270-B1i202004-202303
LT.GRAY,TRIM1#
main71910-0R270-B2i202207-202303
LT.GRAY,TRIM10
main71910-0R270-B2i202004-202207
LT.GRAY,TRIM1#
main71910-0R270-B2i202004-202303
LT.GRAY,TRIM1#
main71910-0R270-C1i202004-202303
BLACK,TRIM2#
main71910-0R270-C2i202405
BLACK,TRIM2#
main71910-0R270-C2i202207-202303
BLACK,TRIM20
main71910-0R270-C2i202004-202303
BLACK,TRIM2#
main71910-0R270-C2i202004-202207
BLACK,TRIM2#
main71910-0R270-C2i202304-202405
BLACK,TRIM2#
main71910-0R270-C3i202207-202303
BLACK/CKD COLOR,TRIM10
main71910-0R270-C4i202207-202303
BLACK/SAND BROWN,TRIM20
main71910-0R270-C4i202405
BLACK/SAND BROWN,TRIM2#
main71910-0R320-C0i202304
BLACK,TRIM2#
main71910-0R320-C0i202004-202303
BLACK,TRIM2#
main71910-0R330-A2i202304-202405
FROMAGE,TRIM0#
main71910-0R330-A2i202405
FROMAGE,TRIM0#
main71910-0R330-A3i202405
FROMAGE/SAND BROWN,TRIM0#
main71910-0R330-B0i202004-202303
LT.GRAY,TRIM1#
main71910-0R330-B1i202004-202303
LT.GRAY,TRIM1#
main71910-0R330-B1i202004-202207
LT.GRAY,TRIM1#
main71910-0R330-B1i202207-202303
LT.GRAY,TRIM10
main71910-0R330-C0i202004-202303
BLACK,TRIM2#
main71910-0R330-C1i202207-202303
BLACK,TRIM20
main71910-0R330-C1i202004-202303
BLACK,TRIM2#
main71910-0R330-C1i202304-202405
BLACK,TRIM2#
main71910-0R330-C1i202405
BLACK,TRIM2#
main71910-0R330-C1i202004-202207
BLACK,TRIM2#
main71910-0R330-C3i202207-202303
BLACK/CKD COLOR,TRIM10
main71910-0R330-C4i202405
BLACK/BLACK,TRIM2#
main71910-0R330-C4i202207-202303
BLACK/BLACK,TRIM20
71931SUPPORT, FRONT SEAT HEADREST
main71930-06070-C0i202405
W(LOCK),BLACK,TRIM0#,2#
main71930-06070-C0i202405
W(LOCK),BLACK,TRIM2#
main71930-06070-C0i202004-202303
W(LOCK),BLACK,TRIM2#
main71930-06070-C0i202004-202303
W(LOCK),BLACK,TRIM1#,2#
main71930-06070-C0i202304-202405
W(LOCK),BLACK,TRIM2#
main71930-06070-C0i202304-202405
W(LOCK),BLACK,TRIM0#,1#,2#
main71930-06070-C0i202304
W(LOCK),BLACK,TRIM2#
main71931-06060-C0i202004-202303
W/O(LOCK),BLACK,TRIM1#,2#
main71931-06060-C0i202004-202303
W/O(LOCK),BLACK,TRIM2#
main71931-06060-C0i202304-202405
W/O(LOCK),BLACK,TRIM0#,1#,2#
main71931-06060-C0i202405
W/O(LOCK),BLACK,TRIM2#
main71931-06060-C0i202405
W/O(LOCK),BLACK,TRIM0#,2#
main71931-06060-C0i202304-202405
W/O(LOCK),BLACK,TRIM2#
main71931-06060-C0i202304
W/O(LOCK),BLACK,TRIM2#
72020ADJUSTER ASSY, FRONT SEAT, LH
main72020-0R130i202405
main72020-0R130i202304-202405
main72020-0R170i202004-202303
main72020-0R170i202405
main72020-0R170i202304-202405
main72020-0R170i202304
main72020-0R180i202004-202303
SRS AIR BAG-W(PASSENGER CUSHION)&AUDIO-AVN & 6SPEAKER GUN METALLIC
main72020-0R180i202004-202303
AUDIO-AVN & 6SPEAKER GUN METALLIC
72125TCOVER, FRONT SEAT TRACK, UPPER REAR LH
main72125-06050i202405
main72125-06050i202304-202405
main72125-06050i202004-202303
SRS AIR BAG-W(PASSENGER CUSHION)&AUDIO-AVN & 6SPEAKER GUN METALLIC
main72125-06050i202004-202303
AUDIO-AVN & 6SPEAKER GUN METALLIC
main72125-06060i202004-202303
main72125-06060i202405
main72125-06060i202304-202405
main72125-06060i202304
72211HANDLE, SEAT TRACK ADJUSTING
main72211-0R050i202304
main72211-0R050i202405
main72211-0R050i202004-202303
main72211-0R050i202304-202405
72211CHANDLE, SEAT TRACK ADJUSTING
main72211-0R050i202405
main72211-0R050i202004-202303
main72211-0R050i202304-202405
main72211-0R050i202304
72266COVER, SEAT TRACK UPPER RAIL, LH
main72265-06020i202004-202303
SRS AIR BAG-W(PASSENGER CUSHION)&AUDIO-AVN & 6SPEAKER GUN METALLIC
main72265-06020i202405
main72265-06020i202004-202303
AUDIO-AVN & 6SPEAKER GUN METALLIC
main72265-06020i202304-202405
main72265-06030i202304
main72265-06030i202405
main72265-06030i202304-202405
main72265-06030i202004-202303
72495HANDLE, VERTICAL ADJUSTING, LH
main72495-0R060-C0i202004-202303
BLACK,TRIM2#
main72495-0R060-C0i202405
BLACK,TRIM2#
main72495-0R060-C0i202004-202303
BLACK,TRIM1#,2#
main72495-0R060-C0i202304-202405
BLACK,TRIM2#
main72495-0R060-C0i202304
BLACK,TRIM2#
72498ACOVER, VERTICAL ADJUSTER BRACKET, LH
main72498-0R040i202304-202405
main72498-0R040i202304
main72498-0R040i202405
main72498-0R040i202004-202303
72526EHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-0R070-C0i202004-202303
BLACK,TRIM1#,2#
main72526-0R070-C0i202004-202303
BLACK,TRIM2#
main72526-0R070-C0i202304-202405
BLACK,TRIM2#
main72526-0R070-C0i202405
BLACK,TRIM2#
main72526-0R070-C0i202304
BLACK,TRIM2#
72552BCOVER, RECLINING HINGE, LH
main72551-0R050-C0i202004-202303
BLACK,TRIM2#
main72551-0R050-C0i202004-202303
BLACK,TRIM1#,2#
main72551-0R050-C0i202304-202405
BLACK,TRIM2#
main72551-0R050-C0i202304
BLACK,TRIM2#
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-0R090i202405
main73920-0R090i202004-202303
main73920-0R090i202304-202405
main73920-0R090i202304
9011910601
main90119-10601¥90
90167C0016
main90167-C0016
90177C0016
main90177-C0016
9356054012
main93560-54012¥60
9418560600
main94185-60600¥70

37 parts on this diagram · 9 diagrams in section

Toyota WILDLANDER (GTMC) SEAT & SEAT TRACK — Parts Diagram | EPC Data
