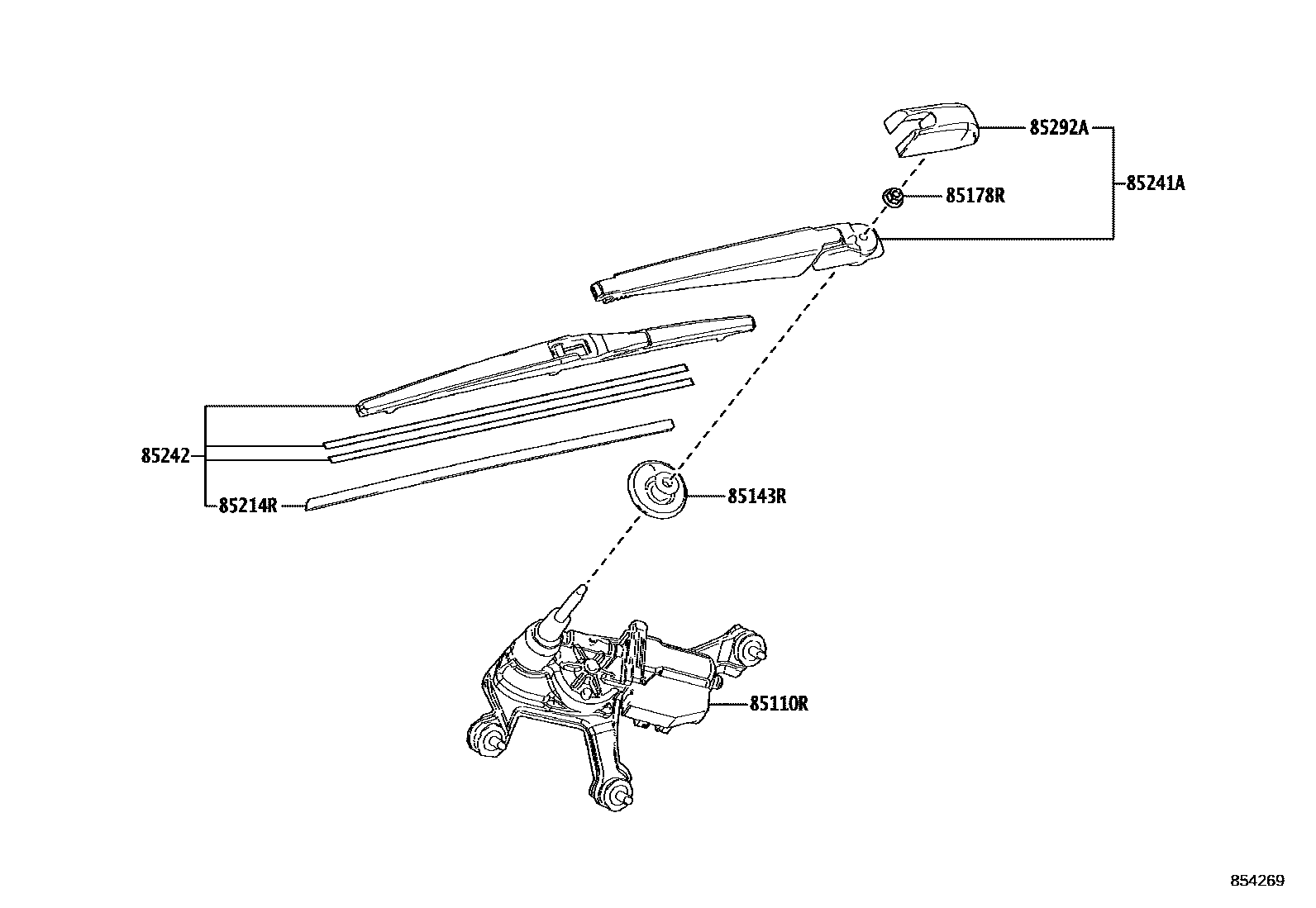

Toyota WILDLANDER (GTMC) — REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-0R070iMXAA52;AXAL5#,MXAA54..G,M202004-202405

85143RGROMMET, REAR WIPER MOTOR

main85143-0R050iMXAA52;AXAL5#,MXAA54..G,M202004-202405

85178RNUT (FOR REAR WIPER ARM SETTING)

main90182-C0004iMXAA52;AXAL5#,MXAA54..G,M202004-202405

85214RRUBBER, REAR WIPER

main85214-0R160iMXAA52;AXAL5#,MXAA54..G,M202004-202405

85241AARM, REAR WIPER

main85241-0R100iMXAA52;AXAL5#,MXAA54..G,M202004-202405

85242BLADE, RR WIPER

main85242-0R060iMXAA52;AXAL5#,MXAA54..G,M202004-202405

85292ACAP, REAR WIPER ARM HEAD

main85292-0D080iMXAA52;AXAL5#,MXAA54..G,M¥630202004-202405

7 parts on this diagram · 1 diagram in section
