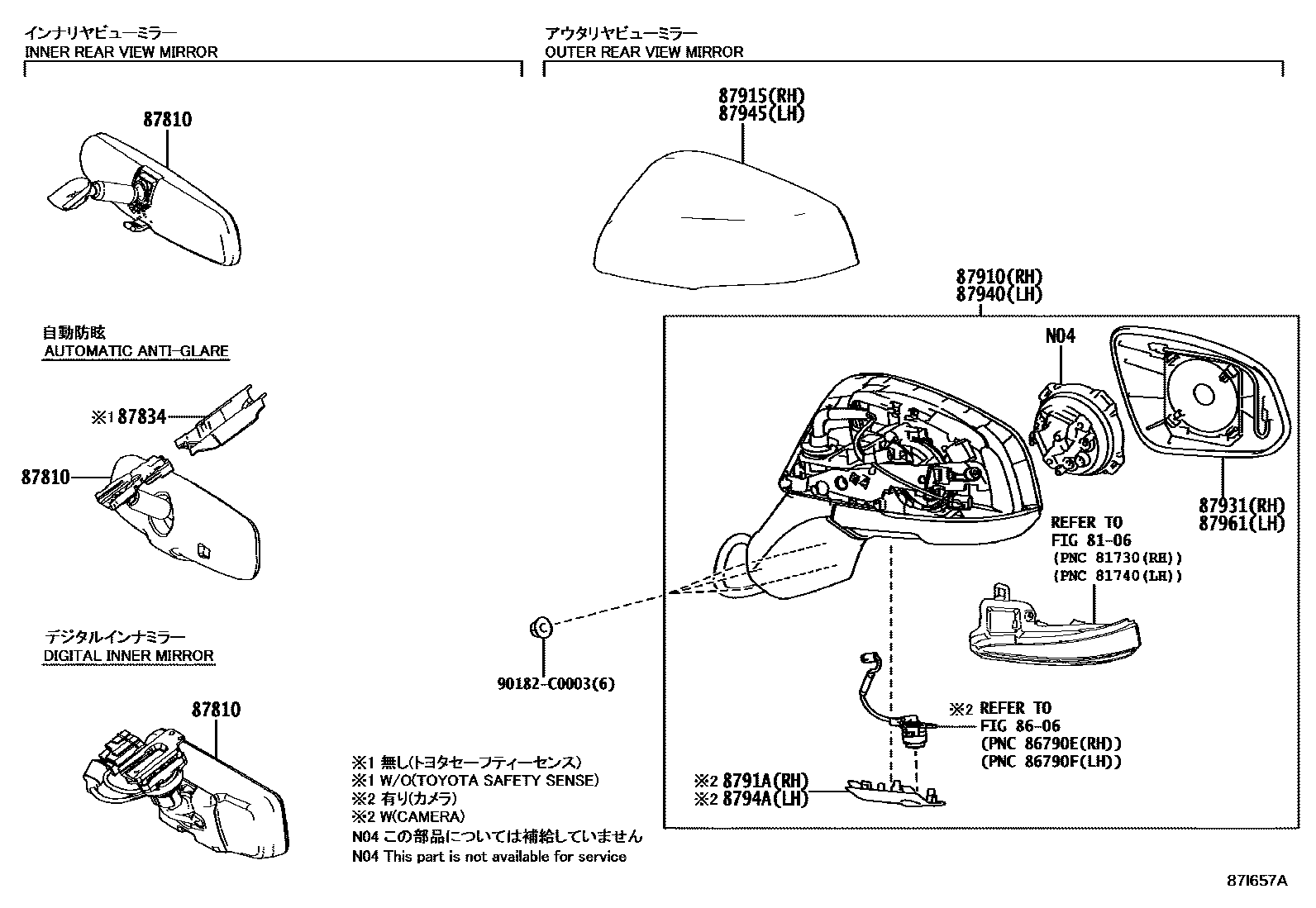

Toyota WILDLANDER (GTMC) — MIRROR
8106
8606
87810MIRROR ASSY, INNER REAR VIEW
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87818-0R030
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,MID & PACKAGE
NO PAINT REQ.
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
8791ACOVER, OUTER MIRROR, RH NO.2
MID & PACKAGE
NO PAINT REQ.
NO PAINT REQ.,MID & PACKAGE
87931OUTER MIRROR, RH
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,MID & PACKAGE
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
8794ACOVER, OUTER MIRROR, LH NO.2
NO PAINT REQ.
NO PAINT REQ.,MID & PACKAGE
MID & PACKAGE
87961MIRROR OUTER, LH
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
90182C0003
main90182-C0003
13 parts on this diagram · 1 diagram in section
