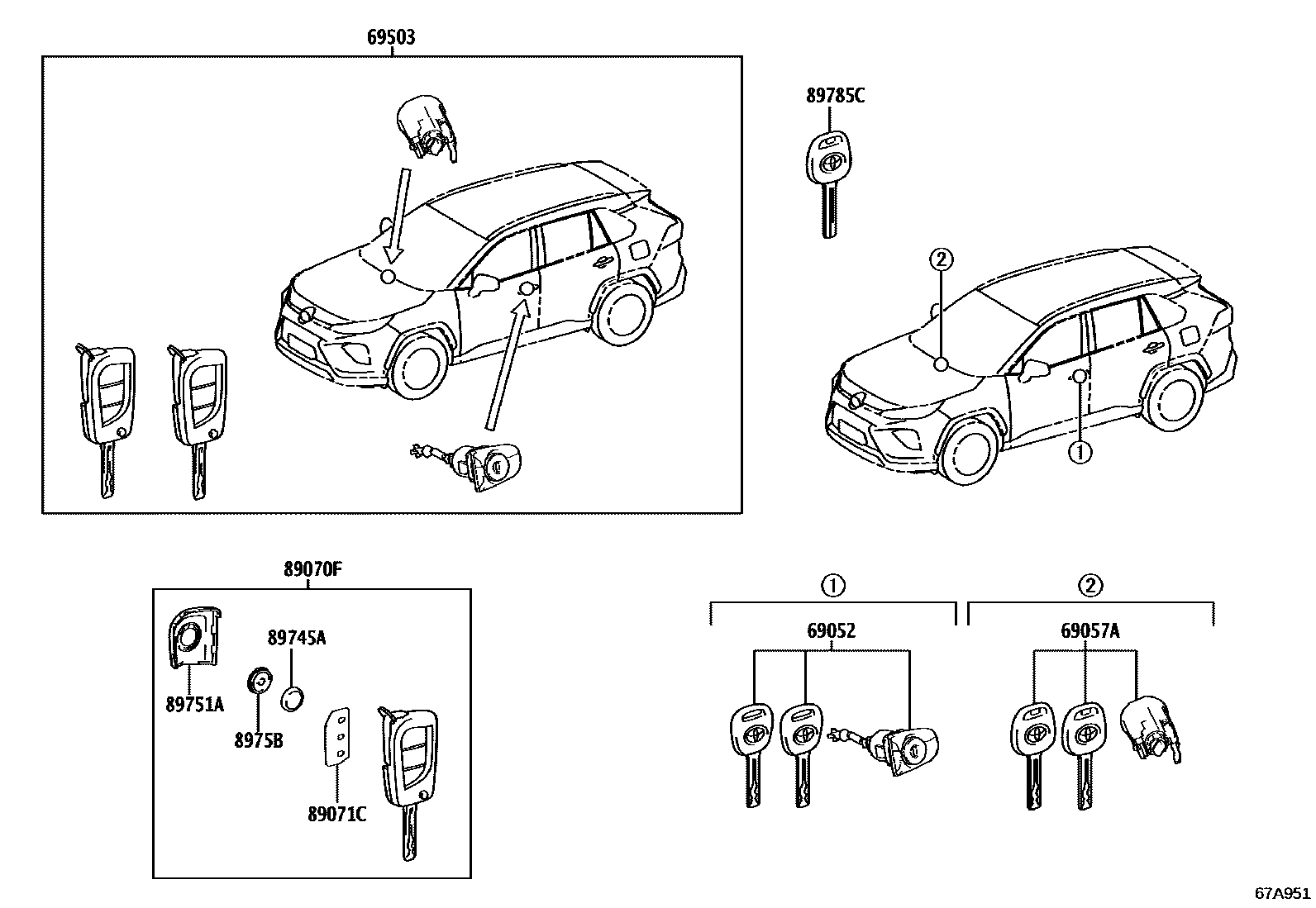

Toyota WILDLANDER (GTMC) — LOCK CYLINDER SET

0001 1WITHOUT(SMART ENTRY) 0002 1WITH(SMART ENTRY)

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-0R130iMXAA52..X202004-202405

main69052-0R160iAXAL5#,MXAA5#..G,M202004-202405

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-06350iMXAA52..X202004-202405

69503CYLINDER SET, LOCK

main69005-0R200iAXAL5#,MXAA5#..G,M202004-202405

main69005-0R250iAXAL5#,MXAA5#..G,M202405

main89704-0R210iMXAA52..X202004-202405

89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)

main89070-0R290iMXAA52..X202004-202405

89071CTRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-F4010iMXAA52..X202004-202405

89745ABATTERY, TRANSMITTER

main89745-06010iMXAA52..X202004-202405

CR2032

89751ACOVER, TRANSMITTER HOUSING

main89751-06130iMXAA52..X202004-202405

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-33050iMXAA52..X¥170202004-202405

89785CTRANSMITTER, TRANSPONDER KEY MASTER

main89785-06060iMXAA52..X202004-202405

9 parts on this diagram · 2 diagrams in section
