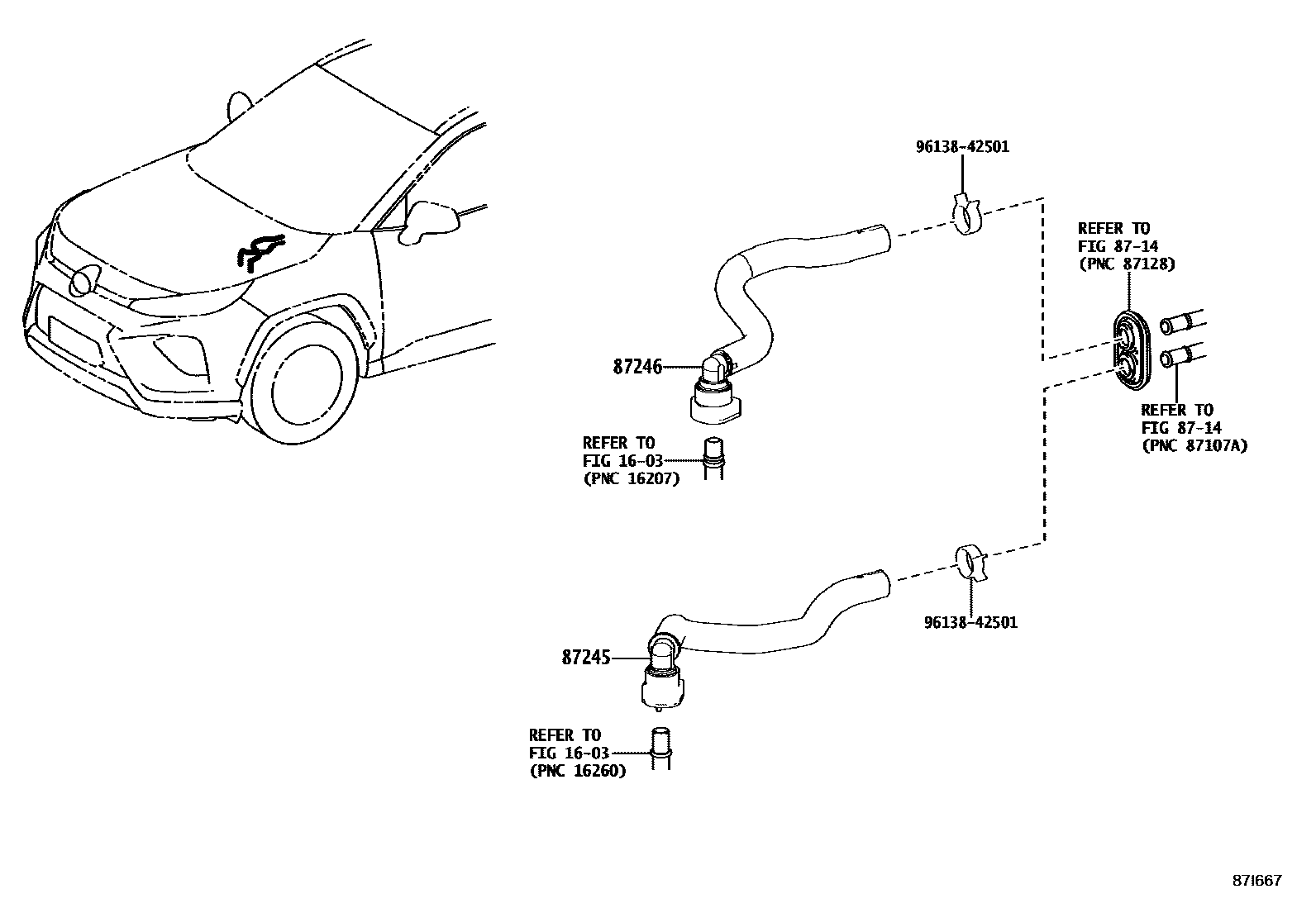

Toyota WILDLANDER (GTMC) — HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1603

8714

87245HOSE, HEATER WATER, INLET

main87209-0R200iMXAA5#202304-202405

main87209-0R200iMXAA5#202004-202303

main87209-0R200iMXAA5#202405

main87209-0R220iAXAL52..X202304

main87209-0R220iAXAH5#202004-202303

main87209-0R220iAXAL5#..G,M202405

main87209-0R220iAXAL5#..G,M202304-202405

87246HOSE, HEATER WATER, OUTLET

main87209-0R210iMXAA5#202405

main87209-0R210iMXAA5#202004-202303

main87209-0R210iMXAA5#202304-202405

main87209-0R230iAXAH5#202004-202303

main87209-0R230iAXAL52..X202304

main87209-0R230iAXAL5#..G,M202405

main87209-0R230iAXAL5#..G,M202304-202405

9613842501

main96138-42501¥180

5 parts on this diagram · 2 diagrams in section
