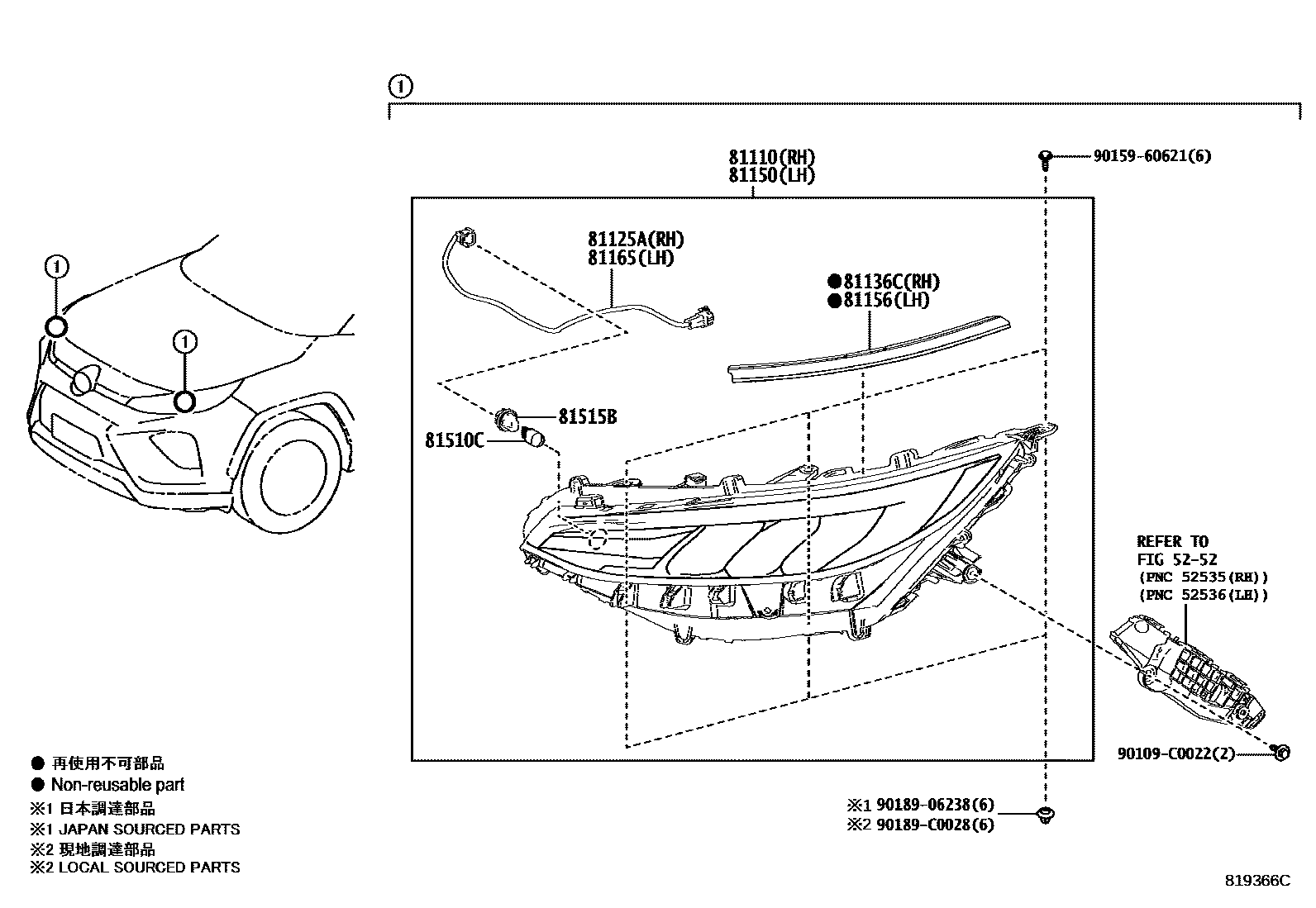

Toyota WILDLANDER (GTMC) — HEADLAMP

0001 1MULTI REFLECTOR TYPE 0002 1PROJECTOR TYPE 0003 1MULTI REFLECTOR TYPE 0004 1PROJECTOR TYPE

5252

81110HEADLAMP ASSY, RH

main81110-0R210iAXAH5#,MXAA5#..A,M,X202004-202105

main81110-0R211iAXAH5#,MXAA5#..A,M,X202105-202303

main81110-0R220iAXAH52,MXAA5#..G202004-202101

main81110-0R221iAXAH52,MXAA5#..G202101-202303

main81110-0R400iMXAA52..M,X;AXAL5#,MXAA54..M202304-202405

main81110-0R410iAXAL5#,MXAA5#..M202304-202405

MID & PACKAGE

main81110-0R410iAXAL5#,MXAA5#..G202405

main81110-0R590iAXAL5#,MXAA5#..M202405

81125ACORD, HEADLAMP, RH

main81125-0R210iAXAH52,MXAA5#..G202004-202303

main81125-0R400iMXAA52;AXAL5#,MXAA54..G,M202304-202405

81136CRIM, HEADLAMP, RH

main81116-0R210iAXAH5#,MXAA5#202004-202303

81150HEADLAMP ASSY, LH

main81150-0R210iAXAH5#,MXAA5#..A,M,X202004-202105

main81150-0R211iAXAH5#,MXAA5#..A,M,X202105-202303

main81150-0R220iAXAH52,MXAA5#..G202004-202101

main81150-0R221iAXAH52,MXAA5#..G202101-202303

main81150-0R330iAXAL5#,MXAA5#..M202405

main81150-0R400iMXAA52..X202304-202405

main81150-0R410iAXAL5#,MXAA5#..G202304-202405

MID & PACKAGE

main81150-0R410iAXAL5#,MXAA5#..G202405

81156RIM, HEADLAMP, LH

main81156-0R210iAXAH5#,MXAA5#202004-202303

81165CORD, HEADLAMP, LH

main81125-0R210iAXAH52,MXAA5#..G202004-202303

main81125-0R400iMXAA52;AXAL5#,MXAA54..G,M202304-202405

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011iAXAH5#,MXAA5#¥300202004-202405

12V 21W,AMBER

main90981-CB004iAXAH5#,MXAA5#202109-202405

12V 21W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iAXAH5#,MXAA5#¥610202004-202303

90109C0022

main90109-C0022

9015960621

main90159-60621¥60

9018906238

main90189-06238¥100

90189C0028

main90189-C0028

13 parts on this diagram · 4 diagrams in section
