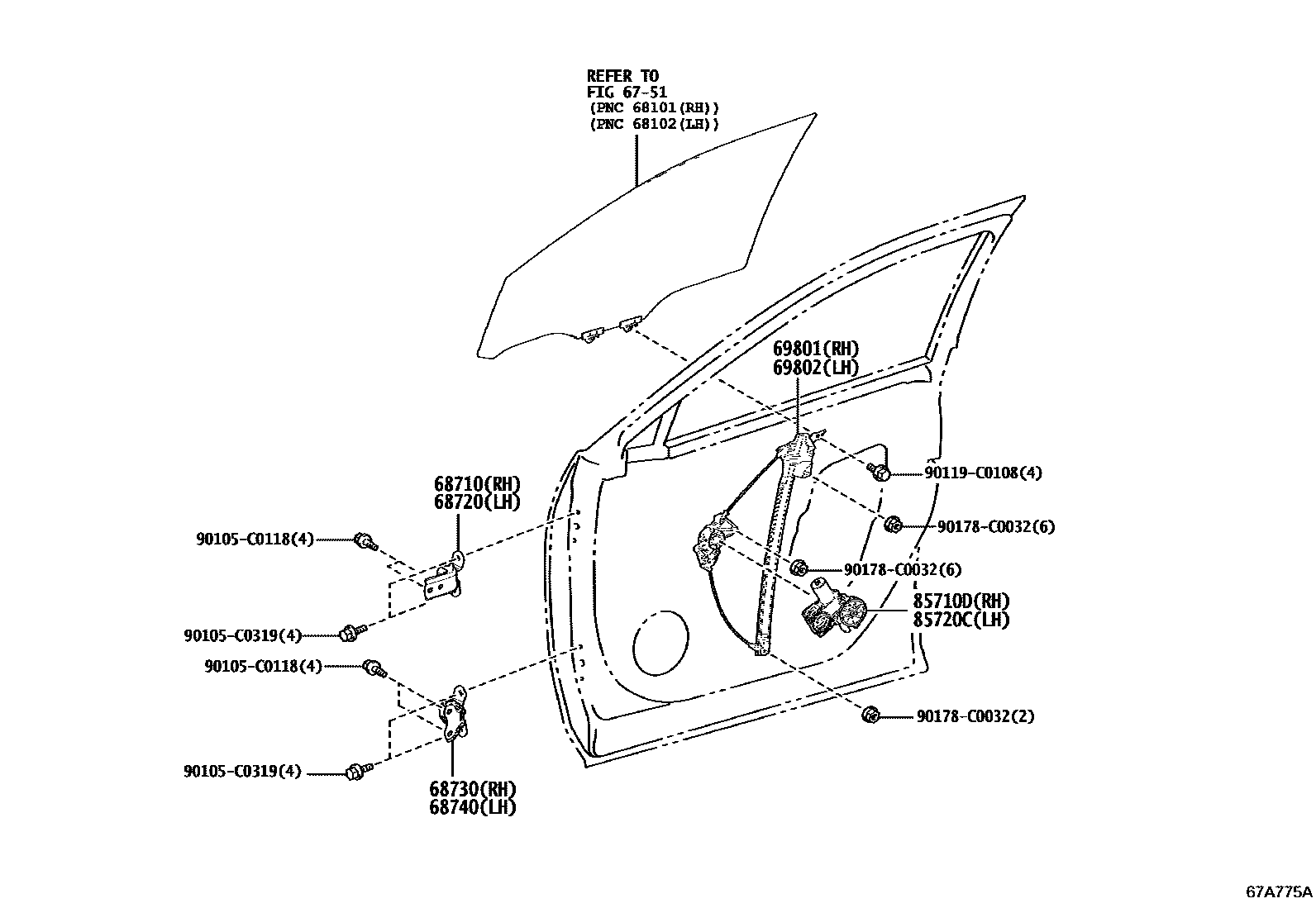

Toyota WILDLANDER (GTMC) — FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02031iMXAA52;AXAL5#,MXAA54..G,M202405

main68710-02031iAXAH5#,MXAA5#202004-202303

main68710-02031iMXAA52;AXAL5#,MXAA54..G,M202304-202405

main68710-02031iAXAL52..X202304

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02031iMXAA52;AXAL5#,MXAA54..G,M202405

main68720-02031iAXAH5#,MXAA5#202004-202303

main68720-02031iMXAA52;AXAL5#,MXAA54..G,M202304-202405

main68720-02031iAXAL52..X202304

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02061iMXAA52;AXAL5#,MXAA54..G,M202405

main68730-02061iAXAH5#,MXAA5#202004-202303

main68730-02061iMXAA52;AXAL5#,MXAA54..G,M202304-202405

main68730-02061iAXAL52..X202304

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02061iMXAA52;AXAL5#,MXAA54..G,M202405

main68740-02061iAXAH5#,MXAA5#202004-202303

main68740-02061iMXAA52;AXAL5#,MXAA54..G,M202304-202405

main68740-02061iAXAL52..X202304

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0R070iAXAH5#,MXAA5#202004-202206

sub69801-0R140

main69801-0R140iMXAA52;AXAL5#,MXAA54..G,M202304-202405

main69801-0R140iAXAL52..X202304

main69801-0R140iMXAA52;AXAL5#,MXAA54..G,M202405

main69801-0R140iAXAH5#,MXAA5#202206-202303

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0R070iAXAH5#,MXAA5#202004-202206

sub69802-0R120

main69802-0R120iAXAL52..X202304

main69802-0R120iMXAA52;AXAL5#,MXAA54..G,M202405

main69802-0R120iAXAH5#,MXAA5#202206-202303

main69802-0R120iMXAA52;AXAL5#,MXAA54..G,M202304-202405

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0R050iMXAA52;AXAL5#,MXAA54..G,M202405

main85710-0R050iAXAH5#,MXAA5#202004-202303

main85710-0R050iMXAA52;AXAL5#,MXAA54..G,M202304-202405

main85710-0R050iAXAL52..X202304

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0R110iMXAA52;AXAL5#,MXAA54..G,M202405

main85720-0R110iAXAH5#,MXAA5#202004-202303

main85720-0R110iMXAA52;AXAL5#,MXAA54..G,M202304-202405

main85720-0R110iAXAL52..X202304

90105C0118

main90105-C0118

90105C0319

main90105-C0319

90119C0108

main90119-C0108

90178C0032

main90178-C0032

13 parts on this diagram · 1 diagram in section
