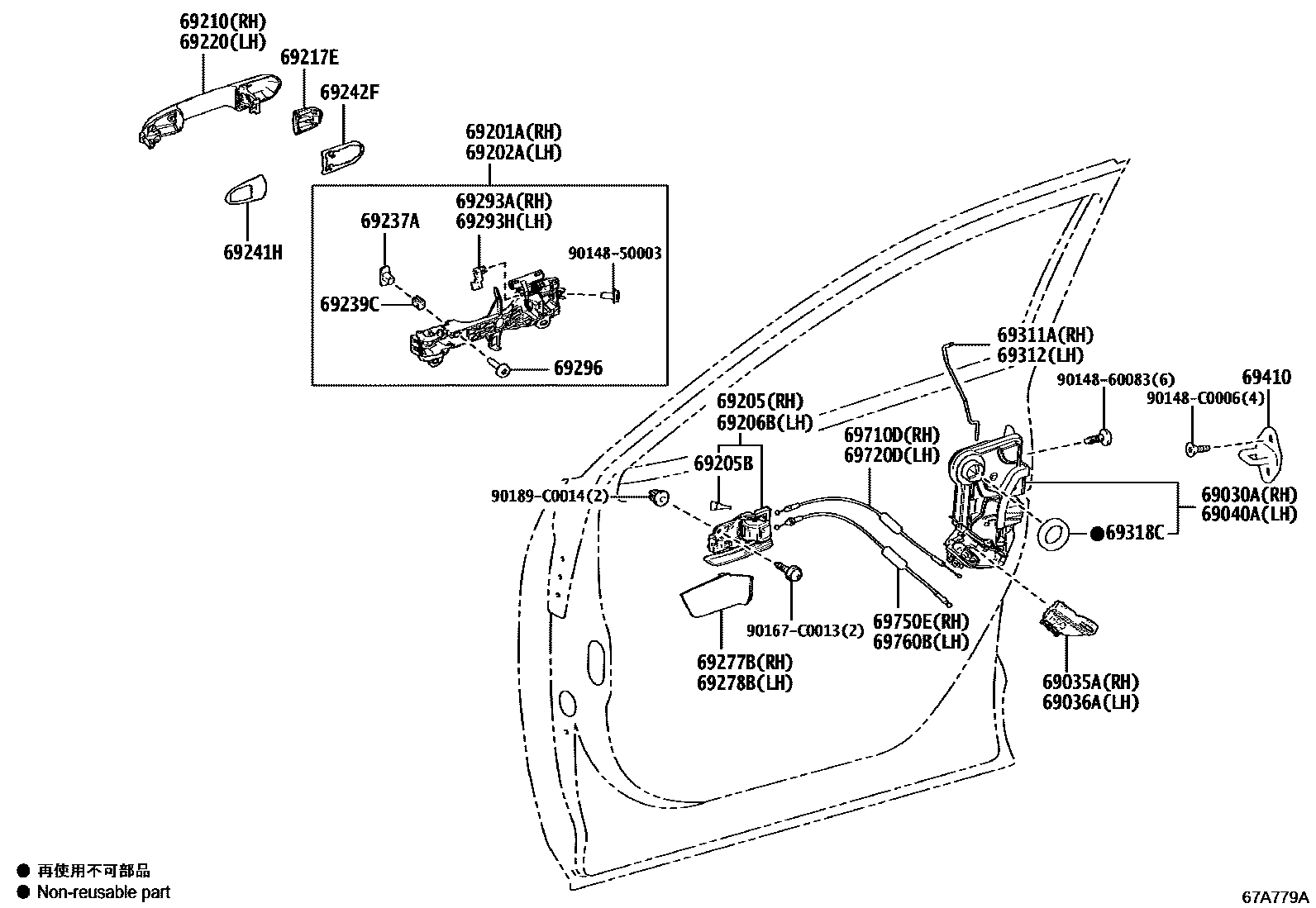

Toyota WILDLANDER (GTMC) — FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-02540iAXAL52..X202304

main69030-02540iMXAA52;AXAL5#,MXAA54..G,M202304-202405

main69030-02540iMXAA52;AXAL5#,MXAA54..G,M202405

main69030-02640iAXAH5#,MXAA5#202004-202303

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-02070iAXAH5#,MXAA5#202004-202303

main69035-02090iMXAA52;AXAL5#,MXAA54..G,M202304-202405

main69035-02090iAXAL52..X202304

main69035-02090iMXAA52;AXAL5#,MXAA54..G,M202405

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-02070iAXAH5#,MXAA5#202004-202303

main69036-02090iMXAA52;AXAL5#,MXAA54..G,M202304-202405

main69036-02090iMXAA52;AXAL5#,MXAA54..G,M202405

main69036-02090iAXAL52..X202304

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-02540iMXAA52;AXAL5#,MXAA54..G,M202304-202405

main69040-02540iAXAL52..X202304

main69040-02540iMXAA52;AXAL5#,MXAA54..G,M202405

main69040-02600iAXAH5#,MXAA5#202004-202303

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-0R100iAXAL52..X202304

main69201-0R100iMXAA52..X202405

main69201-0R100iMXAA52..X202304-202405

main69201-0R100iAXAH52,MXAA52..X202004-202303

main69201-0R130iAXAL5#,MXAA5#..G,M202304-202405

main69201-0R130iAXAL5#,MXAA5#..G,M202405

main69201-0R130iAXAH5#,MXAA5#..A,G,M202004-202303

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-0R080iMXAA52..X202304-202405

main69202-0R080iAXAH52,MXAA52..X202004-202303

main69202-0R080iAXAL52..X202304

main69202-0R080iMXAA52..X202405

main69202-0R110iAXAH5#,MXAA5#..A,G,M202004-202303

main69202-0R110iAXAL5#,MXAA5#..G,M202405

main69202-0R110iAXAL5#,MXAA5#..G,M202304-202405

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-02470-C0iAXAH5#,MXAA5#..A,G,M202207-202303

BLACK,TRIM1#,2#

main69205-02470-C0iAXAL5#,MXAA5#..G,M202405

BLACK,TRIM0#,2#

main69205-02470-C0iAXAL5#,MXAA5#..G,M202304-202405

BLACK,TRIM0#,1#,2#

main69205-02500-C0iAXAL5#,MXAA5#..G,M202304-202405

BLACK,TRIM0#,2#,MARK = WHITE

main69205-02500-C0iAXAL5#,MXAA5#..G,M202405

BLACK,TRIM0#,2#,MARK = WHITE

main69205-06170-C0iAXAH5#,MXAA5#..A,G,M202004-202207

BLACK,TRIM1#,2#

main69205-0R070-C0iMXAA52..X202405

BLACK,TRIM2#

main69205-0R070-C0iAXAH52,MXAA52..X202004-202303

BLACK,TRIM2#

main69205-0R070-C0iMXAA52..X202304-202405

BLACK,TRIM2#

main69205-0R070-C0iAXAL52..X202304

BLACK,TRIM2#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90080-54005iAXAL5#,MXAA5#..G,M¥60202405

TYPE B

main90080-54005iAXAL5#,MXAA5#..G,M¥60202304-202405

TYPE B

main90541-04014iMXAA52..X¥100202304-202405

TYPE A

main90541-04014iMXAA52..X¥100202405

TYPE A

main90541-04014iAXAH5#,MXAA5#¥100202004-202303

main90541-04014iAXAL52..X¥100202304

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-02450-C0iAXAL5#,MXAA5#..G,M202405

BLACK,TRIM0#,2#

main69206-02450-C0iAXAH5#,MXAA5#..A,G,M202207-202303

BLACK,TRIM1#,2#

main69206-02450-C0iAXAL5#,MXAA5#..G,M202304-202405

BLACK,TRIM0#,1#,2#

main69206-02480-C0iAXAL5#,MXAA5#..G,M202304-202405

BLACK,TRIM0#,2#,MARK = WHITE

main69206-02480-C0iAXAL5#,MXAA5#..G,M202405

BLACK,TRIM0#,2#,MARK = WHITE

main69206-06170-C0iAXAH5#,MXAA5#..A,G,M202004-202207

BLACK,TRIM1#,2#

main69206-0R070-C0iMXAA52..X202405

BLACK,TRIM2#

main69206-0R070-C0iAXAL52..X202304

BLACK,TRIM2#

main69206-0R070-C0iAXAH52,MXAA52..X202004-202303

BLACK,TRIM2#

main69206-0R070-C0iMXAA52..X202304-202405

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-0R170-A1iAXAH5#,MXAA5#..A,M202004-202303

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-0R170-A1iAXAL5#,MXAA5#..M202304-202405

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-0R170-B0iAXAL5#,MXAA5#..M202304-202405

METAL STREAM ME,1K0 ,2UY

main69210-0R170-C0iAXAH5#,MXAA5#..A,M202004-202303

BLACK MC.,209 ,2TG

main69210-0R170-C0iAXAL5#,MXAA5#..M202304-202405

BLACK MC.,209 ,2TG

main69210-0R170-C1iAXAL5#,MXAA5#..M202304-202405

BLACKISH AGEHA GF.,221 ,2TE

main69210-0R170-C1iAXAH5#,MXAA5#..A,M202004-202303

BLACKISH AGEHA GF.,221 ,2TE

main69210-0R170-E0iAXAL5#,MXAA5#..M202304-202405

STEEL BLONDE ME.,2TL ,4X1

main69210-0R170-E0iAXAH5#,MXAA5#..A,M202004-202303

STEEL BLONDE ME.,2TL ,4X1

main69210-0R170-E1iAXAH5#,MXAA5#..A,M202004-202303

BLACKISH BROWN MC.,2TF ,4X9

main69210-0R170-J0iAXAH5#,MXAA5#..A,M202004-202303

DK.BLUE M.M.,2TT ,8W7

main69210-0R190-A1iAXAH52,MXAA5#..G202004-202303

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-0R190-A1iAXAL5#,MXAA5#..G202304-202405

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-0R190-B0iAXAL5#,MXAA5#..G202304-202405

METAL STREAM ME,1K0 ,2UY

main69210-0R190-C0iAXAL5#,MXAA5#..G202304-202405

BLACK MC.,209 ,2TG

main69210-0R190-C0iAXAH52,MXAA5#..G202004-202303

BLACK MC.,209 ,2TG

main69210-0R190-C1iAXAL5#,MXAA5#..G202304-202405

BLACKISH AGEHA GF.,221 ,2TE

main69210-0R190-C1iAXAH52,MXAA5#..G202004-202303

BLACKISH AGEHA GF.,221 ,2TE

main69210-0R190-E0iAXAL5#,MXAA5#..G202304-202405

STEEL BLONDE ME.,2TL ,4X1

main69210-0R190-E0iAXAH52,MXAA5#..G202004-202303

STEEL BLONDE ME.,2TL ,4X1

main69210-0R190-E1iAXAH52,MXAA5#..G202004-202303

BLACKISH BROWN MC.,2TF ,4X9

main69210-0R190-J0iAXAH52,MXAA5#..G202004-202303

DK.BLUE M.M.,2TT ,8W7

main69210-0R261-A1iAXAL52,MXAA5#..M202405

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-0R261-B0iAXAL52,MXAA5#..M202405

METAL STREAM ME,1K0 ,2UY

main69210-0R261-C0iAXAL52,MXAA5#..M202405

BLACK MC.,209

main69210-0R261-C1iAXAL52,MXAA5#..M202405

BLACKISH AGEHA GF.,221

main69210-0R261-E0iAXAL52,MXAA5#..M202405

STEEL BLONDE ME.,2TL ,4X1

main69210-0R290-A0iAXAL5#,MXAA5#..G202405

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-0R290-B0iAXAL5#,MXAA5#..G202405

METAL STREAM ME,1K0 ,2UY

main69210-0R290-C0iAXAL5#,MXAA5#..G202405

BLACK MC.,209

main69210-0R290-C1iAXAL5#,MXAA5#..G202405

BLACKISH AGEHA GF.,221

main69210-0R290-E0iAXAL5#,MXAA5#..G202405

STEEL BLONDE ME.,2TL ,4X1

main69210-0R310-A0iAXAL52,MXAA5#..M202405

MID & PACKAGE,PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-0R310-A0iAXAL54..M202405

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-0R310-B0iAXAL54..M202405

METAL STREAM ME,1K0 ,2UY

main69210-0R310-B0iAXAL54..M202405

MID & PACKAGE,METAL STREAM ME,1K0 ,2UY

main69210-0R310-C0iAXAL52,MXAA5#..M202405

BLACK MC.,209

main69210-0R310-C0iAXAL52,MXAA5#..M202405

MID & PACKAGE,BLACK MC.,209

main69210-0R310-C1iAXAL54..M202405

BLACKISH AGEHA GF.,221

main69210-0R310-C1iAXAL54..M202405

MID & PACKAGE,BLACKISH AGEHA GF.,221

main69210-0R310-E0iAXAL54..M202405

MID & PACKAGE,STEEL BLONDE ME.,2TL ,4X1

main69210-0R310-E0iAXAL52,MXAA5#..M202405

STEEL BLONDE ME.,2TL ,4X1

main69211-0R130-A1iMXAA52..X202304-202405

PLATINUM WHITE PEARL MC.,089

main69211-0R130-A1iMXAA52..X202405

PLATINUM WHITE PEARL MC.,089

main69211-0R130-A1iAXAH52,MXAA52..X202004-202303

PLATINUM WHITE PEARL MC.,089

main69211-0R130-A1iAXAL52..X202304

PLATINUM WHITE PEARL MC.,089

main69211-0R130-B0iMXAA52..X202405

METAL STREAM ME,1K0

main69211-0R130-B0iAXAL52..X202304

METAL STREAM ME,1K0

main69211-0R130-B0iMXAA52..X202304-202405

METAL STREAM ME,1K0

main69211-0R130-C0iMXAA52..X202304-202405

BLACK MC.,209

main69211-0R130-C0iAXAH52,MXAA52..X202004-202303

BLACK MC.,209

main69211-0R130-C0iAXAL52..X202304

BLACK MC.,209

main69211-0R130-C0iMXAA52..X202405

BLACK MC.,209

main69211-0R130-C1iAXAL52..X202304

BLACKISH AGEHA GF.,221

main69211-0R130-C1iMXAA52..X202405

BLACKISH AGEHA GF.,221

main69211-0R130-C1iAXAH52,MXAA52..X202004-202303

BLACKISH AGEHA GF.,221

main69211-0R130-C1iMXAA52..X202304-202405

BLACKISH AGEHA GF.,221

main69211-0R130-E0iMXAA52..X202304-202405

STEEL BLONDE ME.,4X1

main69211-0R130-E0iMXAA52..X202405

STEEL BLONDE ME.,4X1

main69211-0R130-E0iAXAH52,MXAA52..X202004-202303

STEEL BLONDE ME.,4X1

main69211-0R130-E0iAXAL52..X202304

STEEL BLONDE ME.,4X1

main69211-0R130-E1iAXAH52,MXAA52..X202004-202303

BLACKISH BROWN MC.,4X9

main69211-0R130-J0iAXAH52,MXAA52..X202004-202303

DK.BLUE M.M.,8W7

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-0R200iMXAA52..X202304-202405

BLACK

main69217-0R200iAXAH52,MXAA52..X202004-202303

BLACK

main69217-0R200iAXAL52..X202304

BLACK

main69217-0R200iMXAA52..X202405

BLACK

main69217-0R220iAXAH5#,MXAA5#..A,G,M202004-202303

BLACK

main69217-0R220iAXAL5#,MXAA5#..G,M202405

BLACK

main69217-0R220iAXAL5#,MXAA5#..G,M202304-202405

BLACK

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-0R180-A1iAXAH5#,MXAA5#..A,M202004-202303

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-0R180-A1iAXAL5#,MXAA5#..M202304-202405

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-0R180-B0iAXAL5#,MXAA5#..M202304-202405

METAL STREAM ME,1K0 ,2UY

main69210-0R180-C0iAXAL5#,MXAA5#..M202304-202405

BLACK MC.,209 ,2TG

main69210-0R180-C0iAXAH5#,MXAA5#..A,M202004-202303

BLACK MC.,209 ,2TG

main69210-0R180-C1iAXAH5#,MXAA5#..A,M202004-202303

BLACKISH AGEHA GF.,221 ,2TE

main69210-0R180-C1iAXAL5#,MXAA5#..M202304-202405

BLACKISH AGEHA GF.,221 ,2TE

main69210-0R180-E0iAXAL5#,MXAA5#..M202304-202405

STEEL BLONDE ME.,2TL ,4X1

main69210-0R180-E0iAXAH5#,MXAA5#..A,M202004-202303

STEEL BLONDE ME.,2TL ,4X1

main69210-0R180-E1iAXAH5#,MXAA5#..A,M202004-202303

BLACKISH BROWN MC.,2TF ,4X9

main69210-0R180-J0iAXAH5#,MXAA5#..A,M202004-202303

DK.BLUE M.M.,2TT ,8W7

main69210-0R200-A1iAXAH52,MXAA5#..G202004-202303

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-0R200-A1iAXAL5#,MXAA5#..G202304-202405

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-0R200-B0iAXAL5#,MXAA5#..G202304-202405

METAL STREAM ME,1K0 ,2UY

main69210-0R200-C0iAXAL5#,MXAA5#..G202304-202405

BLACK MC.,209 ,2TG

main69210-0R200-C0iAXAH52,MXAA5#..G202004-202303

BLACK MC.,209 ,2TG

main69210-0R200-C1iAXAH52,MXAA5#..G202004-202303

BLACKISH AGEHA GF.,221 ,2TE

main69210-0R200-C1iAXAL5#,MXAA5#..G202304-202405

BLACKISH AGEHA GF.,221 ,2TE

main69210-0R200-E0iAXAH52,MXAA5#..G202004-202303

STEEL BLONDE ME.,2TL ,4X1

main69210-0R200-E0iAXAL5#,MXAA5#..G202304-202405

STEEL BLONDE ME.,2TL ,4X1

main69210-0R200-E1iAXAH52,MXAA5#..G202004-202303

BLACKISH BROWN MC.,2TF ,4X9

main69210-0R200-J0iAXAH52,MXAA5#..G202004-202303

DK.BLUE M.M.,2TT ,8W7

main69210-0R271-A1iAXAL52,MXAA5#..M202405

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-0R271-B0iAXAL52,MXAA5#..M202405

METAL STREAM ME,1K0 ,2UY

main69210-0R271-C0iAXAL52,MXAA5#..M202405

BLACK MC.,209

main69210-0R271-C1iAXAL52,MXAA5#..M202405

BLACKISH AGEHA GF.,221

main69210-0R271-E0iAXAL52,MXAA5#..M202405

STEEL BLONDE ME.,2TL ,4X1

main69210-0R300-A0iAXAL5#,MXAA5#..G202405

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-0R300-B0iAXAL5#,MXAA5#..G202405

METAL STREAM ME,1K0 ,2UY

main69210-0R300-C0iAXAL5#,MXAA5#..G202405

BLACK MC.,209

main69210-0R300-C1iAXAL5#,MXAA5#..G202405

BLACKISH AGEHA GF.,221

main69210-0R300-E0iAXAL5#,MXAA5#..G202405

STEEL BLONDE ME.,2TL ,4X1

main69210-0R320-A0iAXAL52,MXAA5#..M202405

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-0R320-A0iAXAL54..M202405

MID & PACKAGE,PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-0R320-B0iAXAL54..M202405

MID & PACKAGE,METAL STREAM ME,1K0 ,2UY

main69210-0R320-B0iAXAL52,MXAA5#..M202405

METAL STREAM ME,1K0 ,2UY

main69210-0R320-C0iAXAL54..M202405

BLACK MC.,209

main69210-0R320-C0iAXAL52,MXAA5#..M202405

MID & PACKAGE,BLACK MC.,209

main69210-0R320-C1iAXAL54..M202405

BLACKISH AGEHA GF.,221

main69210-0R320-C1iAXAL54..M202405

MID & PACKAGE,BLACKISH AGEHA GF.,221

main69210-0R320-E0iAXAL52,MXAA5#..M202405

MID & PACKAGE,STEEL BLONDE ME.,2TL ,4X1

main69210-0R320-E0iAXAL52,MXAA5#..M202405

STEEL BLONDE ME.,2TL ,4X1

main69211-0R140-A1iAXAH52,MXAA52..X202004-202303

PLATINUM WHITE PEARL MC.,089

main69211-0R140-A1iMXAA52..X202304-202405

PLATINUM WHITE PEARL MC.,089

main69211-0R140-A1iMXAA52..X202405

PLATINUM WHITE PEARL MC.,089

main69211-0R140-A1iAXAL52..X202304

PLATINUM WHITE PEARL MC.,089

main69211-0R140-B0iMXAA52..X202405

METAL STREAM ME,1K0

main69211-0R140-B0iAXAL52..X202304

METAL STREAM ME,1K0

main69211-0R140-B0iMXAA52..X202304-202405

METAL STREAM ME,1K0

main69211-0R140-C0iMXAA52..X202405

BLACK MC.,209

main69211-0R140-C0iAXAH52,MXAA52..X202004-202303

BLACK MC.,209

main69211-0R140-C0iMXAA52..X202304-202405

BLACK MC.,209

main69211-0R140-C0iAXAL52..X202304

BLACK MC.,209

main69211-0R140-C1iMXAA52..X202304-202405

BLACKISH AGEHA GF.,221

main69211-0R140-C1iMXAA52..X202405

BLACKISH AGEHA GF.,221

main69211-0R140-C1iAXAH52,MXAA52..X202004-202303

BLACKISH AGEHA GF.,221

main69211-0R140-C1iAXAL52..X202304

BLACKISH AGEHA GF.,221

main69211-0R140-E0iMXAA52..X202405

STEEL BLONDE ME.,4X1

main69211-0R140-E0iMXAA52..X202304-202405

STEEL BLONDE ME.,4X1

main69211-0R140-E0iAXAL52..X202304

STEEL BLONDE ME.,4X1

main69211-0R140-E0iAXAH52,MXAA52..X202004-202303

STEEL BLONDE ME.,4X1

main69211-0R140-E1iAXAH52,MXAA52..X202004-202303

BLACKISH BROWN MC.,4X9

main69211-0R140-J0iAXAH52,MXAA52..X202004-202303

DK.BLUE M.M.,8W7

69237ANUT, FRONT DOOR HANDLE

main69237-0R040iAXAH52,MXAA52..X202004-202303

main69237-0R040iMXAA52..X202405

main69237-0R040iMXAA52..X202304-202405

main69237-0R040iAXAL52..X202304

main69237-F4050iAXAL5#,MXAA5#..G,M202304-202405

main69237-F4050iAXAL5#,MXAA5#..G,M202405

main69237-F4050iAXAH5#,MXAA5#..A,G,M202004-202303

69239CBUSH, FRONT DOOR HANDLE

main69239-06050iAXAL5#,MXAA5#..G,M202304-202405

main69239-06050iAXAH5#,MXAA5#..A,G,M202004-202303

main69239-06050iAXAL5#,MXAA5#..G,M202405

main69239-0R040iMXAA52..X202304-202405

main69239-0R040iMXAA52..X202405

main69239-0R040iAXAH52,MXAA52..X202004-202303

main69239-0R040iAXAL52..X202304

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-0R050iAXAH5#,MXAA5#202004-202303

main69241-0R050iMXAA52;AXAL5#,MXAA54..G,M202304-202405

main69241-0R050iMXAA52;AXAL5#,MXAA54..G,M202405

main69241-0R050iAXAL52..X202304

69242FPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-0R050iAXAL52..X202304

main69242-0R050iMXAA52;AXAL5#,MXAA54..G,M202405

main69242-0R050iAXAH5#,MXAA5#202004-202303

main69242-0R050iMXAA52;AXAL5#,MXAA54..G,M202304-202405

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-0R040-C0iMXAA52;AXAL5#,MXAA54..G,M202405

BLACK

main69277-0R040-C0iAXAH52,MXAA52..X202004-202303

BLACK,TRIM2#

main69277-0R040-C0iAXAH52,MXAA52..X202004-202303

BLACK

main69277-0R040-C0iAXAH52,MXAA52..X202004-202303

BLACK,TRIM1#,2#

main69277-0R040-C0iMXAA52;AXAL5#,MXAA54..G,M202304-202405

BLACK

main69277-0R040-C0iAXAL52..X202304

BLACK

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-0R040-C0iMXAA52;AXAL5#,MXAA54..G,M202304-202405

BLACK

main69278-0R040-C0iMXAA52;AXAL5#,MXAA54..G,M202405

BLACK

main69278-0R040-C0iAXAH52,MXAA52..X202004-202303

BLACK,TRIM2#

main69278-0R040-C0iAXAH52,MXAA52..X202004-202303

BLACK

main69278-0R040-C0iAXAH52,MXAA52..X202004-202303

BLACK,TRIM1#,2#

main69278-0R040-C0iAXAL52..X202304

BLACK

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-0R070iMXAA52..X202304-202405

main69293-0R070iAXAH52,MXAA52..X202004-202303

main69293-0R070iAXAL52..X202304

main69293-0R070iMXAA52..X202405

main69293-33030iAXAL5#,MXAA5#..G,M¥90202304-202405

main69293-33030iAXAL5#,MXAA5#..G,M¥90202405

main69293-33030iAXAH5#,MXAA5#..A,G,M¥90202004-202303

69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-0R080iMXAA52..X202405

main69293-0R080iMXAA52..X202304-202405

main69293-0R080iAXAH52,MXAA52..X202004-202303

main69293-0R080iAXAL52..X202304

main69293-33040iAXAL5#,MXAA5#..G,M¥90202304-202405

main69293-33040iAXAL5#,MXAA5#..G,M¥90202405

main69293-33040iAXAH5#,MXAA5#..A,G,M¥90202004-202303

69296SCREW, DOOR INSIDE HANDLE

main69296-0R040iAXAH52,MXAA52..X202004-202208

sub90148-C0013

main69296-30010iAXAH5#,MXAA5#..A,G,M¥90202004-202208

main90148-C0013iMXAA52;AXAL5#,MXAA54..G,M202304-202405

main90148-C0013iAXAL52..X202304

main90148-C0013iMXAA52;AXAL5#,MXAA54..G,M202405

main90148-C0013iAXAH5#,MXAA5#202209-202303

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-0R070iMXAA52;AXAL5#,MXAA54..G,M202405

main69311-0R070iAXAH5#,MXAA5#202004-202303

main69311-0R070iMXAA52;AXAL5#,MXAA54..G,M202304-202405

main69311-0R070iAXAL52..X202304

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-0R070iMXAA52;AXAL5#,MXAA54..G,M202304-202405

main69312-0R070iMXAA52;AXAL5#,MXAA54..G,M202405

main69312-0R070iAXAH5#,MXAA5#202004-202303

main69312-0R070iAXAL52..X202304

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-02030iMXAA52;AXAL5#,MXAA54..G,M202304-202405

main69318-02030iMXAA52;AXAL5#,MXAA54..G,M202405

main69318-02030iAXAL52..X202304

main69318-51010iAXAH5#,MXAA5#¥120202004-202303

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0D020iMXAA52;AXAL5#,MXAA54..G,M202304-202405

main69410-0D020iMXAA52;AXAL5#,MXAA54..G,M202405

main69410-0D020iAXAH5#,MXAA5#202004-202303

main69410-0D020iAXAL52..X202304

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-0R080iAXAH5#,MXAA5#202004-202303

main69710-0R110iMXAA52;AXAL5#,MXAA54..G,M202405

main69710-0R110iMXAA52;AXAL5#,MXAA54..G,M202304-202405

main69710-0R110iAXAL52..X202304

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-0R080iAXAH5#,MXAA5#202004-202303

main69710-0R110iMXAA52;AXAL5#,MXAA54..G,M202405

main69710-0R110iMXAA52;AXAL5#,MXAA54..G,M202304-202405

main69710-0R110iAXAL52..X202304

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-0R080iAXAH5#,MXAA5#202004-202303

main69750-0R110iMXAA52;AXAL5#,MXAA54..G,M202304-202405

main69750-0R110iMXAA52;AXAL5#,MXAA54..G,M202405

main69750-0R110iAXAL52..X202304

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-0R080iAXAH5#,MXAA5#202004-202303

main69750-0R110iMXAA52;AXAL5#,MXAA54..G,M202304-202405

main69750-0R110iMXAA52;AXAL5#,MXAA54..G,M202405

main69750-0R110iAXAL52..X202304

9014850003

main90148-50003¥60

9014860083

main90148-60083¥60

90148C0006

main90148-C0006

90167C0013

main90167-C0013

90189C0014

main90189-C0014

34 parts on this diagram · 2 diagrams in section
