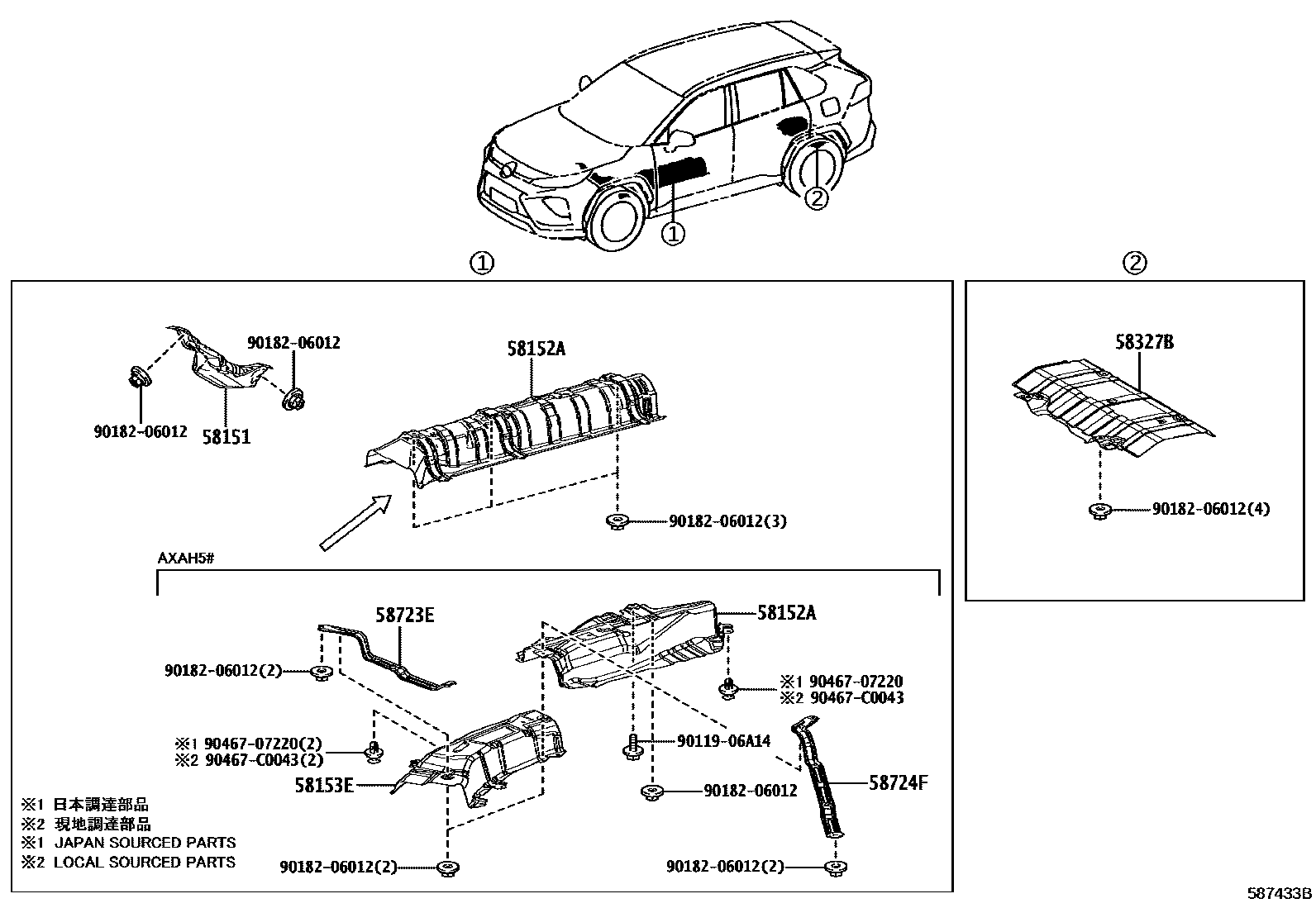

Toyota WILDLANDER (GTMC) — FLOOR INSULATOR

0001 1 0002 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-0R040iMXAA52;AXAL5#,MXAA54..G,M202004-202405

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-0R100iAXAH5#202004-202405

main58720-0R040iMXAA5#202004-202108

sub58720-0R041

main58720-0R041iMXAA5#202109-202209

sub58720-0R042

main58720-0R042iMXAA5#202209-202405

58153EINSULATOR, FRONT FLOOR HEAT, NO.2

main58153-0R040iAXAH5#202004-202206

main58153-0R041iAXAH5#202206-202405

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0R050iMXAA52;AXAL5#,MXAA54..G,M202004-202405

58723ECUSHION, ENGINE SERVICE COVER

main58723-0R110iAXAL5#..G,M202004-202405

58724FCUSHION, ENGINE SERVICE COVER, NO.2

main58724-0R110iAXAL5#..G,M202004-202405

9011906A14

main90119-06A14¥60

9018206012

main90182-06012¥60

9046707220

main90467-07220¥80

90467C0043

main90467-C0043

10 parts on this diagram · 2 diagrams in section
