Toyota WILDLANDER (GTMC) — ELECTRONIC FUEL INJECTION SYSTEM

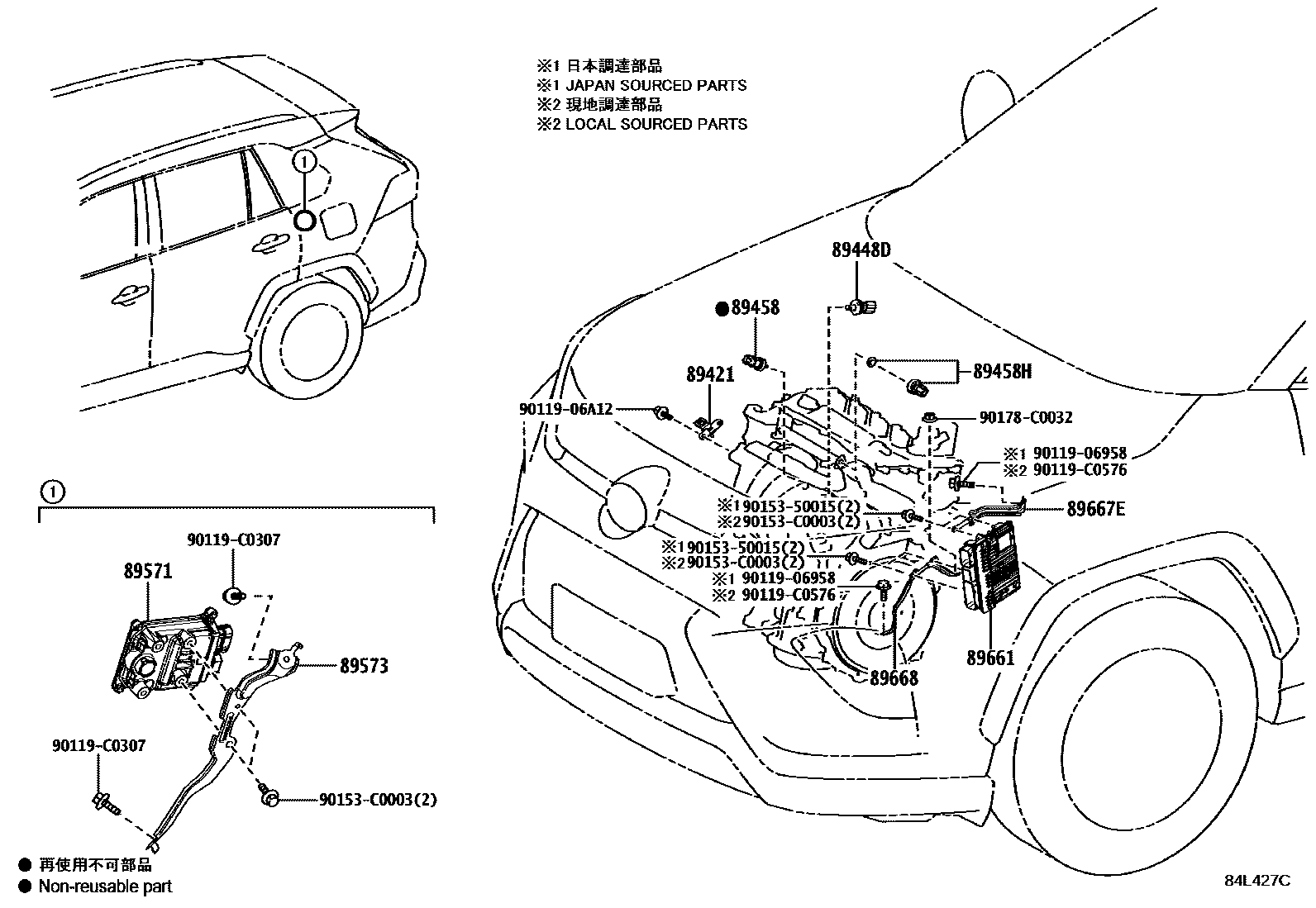

Parts diagram
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
main89421-33010i¥5,900202004-202405
89448DSENSOR, OIL PRESSURE & TEMPERATURE
main89448-0R010i202403
(L)
main89448-33010i¥5,700202403
(J)
main89448-33010i¥5,700202004-202403
89458SENSOR, FUEL PRESSURE
main89458-0R010i202403
(L)
main89458-33030i¥4,320202403
(J)
main89458-33030i¥4,320202004-202403
89458HSENSOR, FUEL PRESSURE, NO.2
main89458-0R020i202403
(L)
main89458-33041i¥4,760202004-202212
main89458-33042i¥4,320202301-202403
main89458-33042i¥4,320202403
(J)
89571COMPUTER, FUEL PUMP CONTROL
main89571-10010i¥9,900202206-202405
main89571-12010i¥10,900202004-202009
P/N LABEL=8957112010
main89571-48010i¥9,900202010-202206
P/N LABEL=8957148010
89573BRACKET, FUEL PUMP CONTROL COMPUTER
main89573-0R030i202004-202405
89661COMPUTER, ENGINE CONTROL
main89661-0R440i202004-202108
DENSO
main89661-0R780i202004-202303
DENSO
main89661-0R790i202004-202303
DENSO
main89661-0RB70i202108-202303
DENSO
main89661-0RE40i202304-202405
DENSO
main89661-0RE50i202304-202405
DENSO
main89661-0RE80i202304-202405
DENSO
main89661-0RG50i202405
DENSO,*614
main89661-0RG80i202405
DENSO,*614
main89661-0RG90i202405
DENSO,*614
89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1
main89667-06290i202004-202405
main89667-0R080i202004-202312
sub89667-0R081
main89667-0R081i202401-202405
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
main89668-0R070i202004-202405
main89668-0R080i202004-202405
9011906958
main90119-06958¥60
9011906A12
main90119-06A12¥60
90119C0307
main90119-C0307
90119C0576
main90119-C0576
9015350015
main90153-50015¥60
90153C0003
main90153-C0003
90178C0032
main90178-C0032

16 parts on this diagram · 2 diagrams in section
