Toyota WILDLANDER (GTMC) — CYLINDER BLOCK

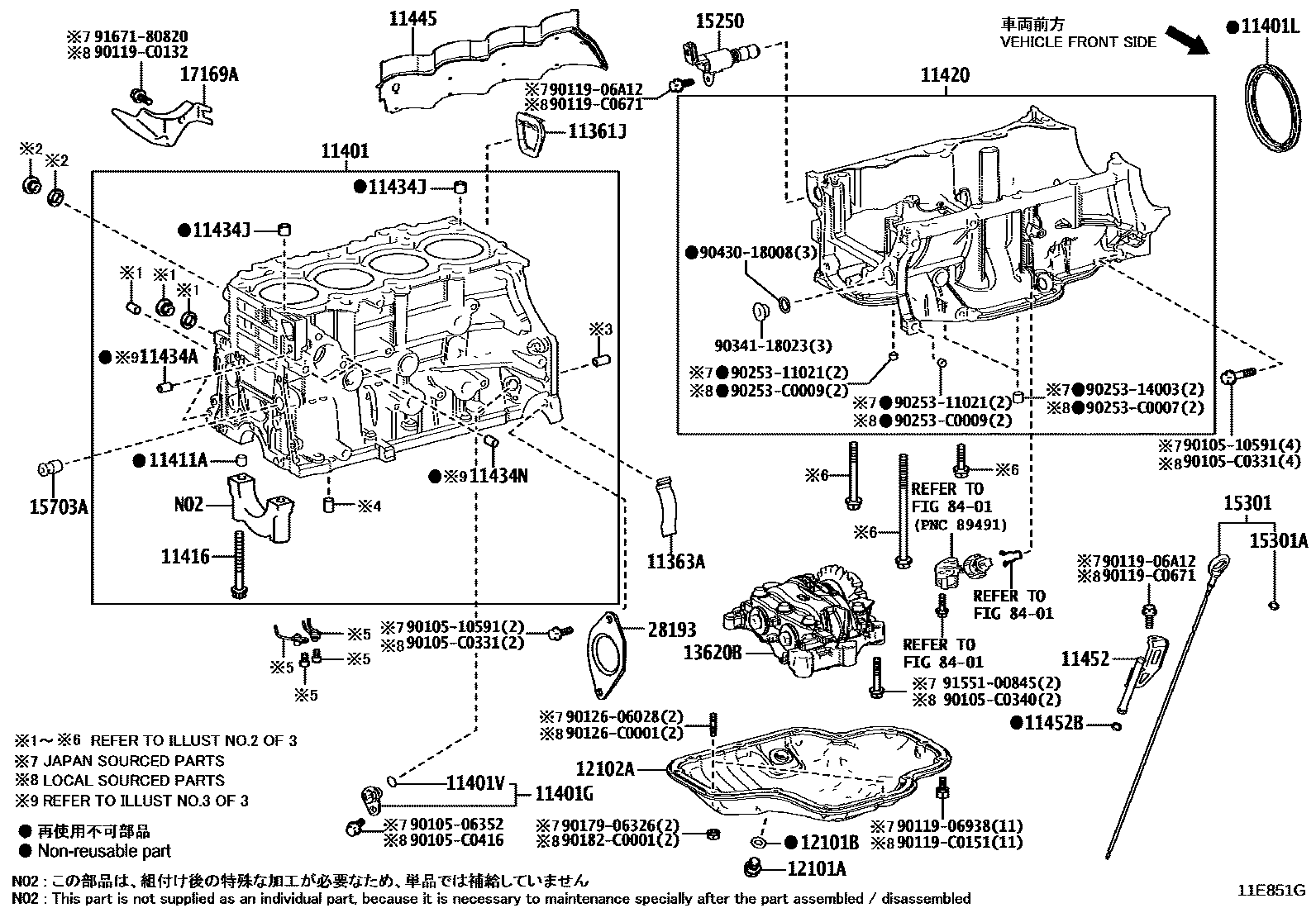

Parts diagram
11361JCOVER, FLYWHEEL HOUSING UNDER
main11361-25010i¥700202004-202405
(J)
main11361-F2020i202004-202405
(L)
11363ACOVER, FLYWHEEL HOUSING SIDE
main11363-33010i¥200202004-202405
(J)
main11363-F2020i202004-202405
(L)
11401BLOCK SUB-ASSY, CYLINDER
main11410-29565i202004-202105
*636
main11410-29615i202405
*636
main11410-F9190i202004-202405
main11410-F9240i202105-202405
*634
11401GSENSOR, CRANK POSITION
main90919-05094i¥4,130202004-202408
main90919-05094i¥4,130202408
(J)
main90919-05095i¥4,130202105-202408
*634
main90919-05095i¥4,130202105-202405
ENGINE-A25B-FXS,*636
main90919-05095i¥4,130202004-202105
*636
main90919-05095i¥4,130202408
(J),*634
main90919-C5005i202408
(L)
main90919-C5006i202408
(L),*634
11401LSEAL, ENGINE REAR OIL
main90311-90010i¥1,390202004-202105
*636
main90311-C0055i202105-202405
*634
main90311-C0055i202004-202303
11401VO-RING, CRANK POSITION SENSOR
main90301-11039i¥0202405
*634,*636
main90301-11039i¥0202004-202105
*636
main90301-11039i¥0202004-202303
main90301-11039i¥0202105-202405
*634
main90301-11039i¥0202105-202405
ENGINE-A25B-FXS,*636
11411APIN, RING(FOR CYLINDER BLOCK NO.1 )
main90253-14003i¥140202004-202105
*636
main90253-C0007i202105-202405
*634
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
main90910-02197i¥240202004-202303
main90910-02197i¥240202105-202405
*634
main90910-02197i¥240202105-202405
ENGINE-A25B-FXS,*636
main90910-02197i¥240202405
*634,*636
main90910-02197i¥240202004-202105
*636
11420CRANKCASE ASSY, STIFFENING
main11420-24020i¥33,400202112-202405
(J)
main11420-25010i¥33,500202004-202105
*636
main11420-F0030i202105-202405
*634
main11420-F2040i202004-202405
(L)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
main90250-06003i¥90202004-202405
L=14,OD=6
main90250-06003i¥90202004-202105
L=14,OD=6,*636
main90250-06003i¥90202105-202106
L=14,OD=6,*634T/P A:REF.ILLUST
main90250-06003i¥90202304-202405
L=14,OD=6,ENGINE-A25B-FXS,*636
main90250-C0010i202106-202303
L=14,OD=6,*634T/P B:REF.ILLUST
main90250-C0010i202304-202405
L=14,OD=6,*634
11434JPIN, RING (FOR CYLINDER HEAD SET)
main90253-14003i¥140202004-202105
*636
main90253-C0006i202004-202405
main90253-C0007i202105-202405
*634
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
main90250-06003i¥90202004-202105
*636
main90250-06003i¥90202105-202106
*634T/P A:REF.ILLUST
main90250-06003i¥90202004-202303
main90250-06003i¥90202304-202405
ENGINE-A25B-FXS,*636
main90250-C0010i202304-202405
*634
main90250-C0010i202106-202303
*634T/P B:REF.ILLUST
11445SPACER, CYLINDER BLOCK WATER JACKET
main11445-25010i¥3,590202004-202105
*636
main11445-F0020i202105-202405
*634
main11445-F2030i202004-202405
11452GUIDE, OIL LEVEL GAGE
main11452-25010i¥780202004-202105
*636
main11452-F0030i202105-202405
*634
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
main90301-C0037i202210-202303
(L),*634
main96741-19010i¥250202304
ENGINE-A25B-FXS,*636
main96741-19010i¥250202405
*636,(J),*634
main96741-19010i¥250202004-202105
*636
main96741-19010i¥250202105-202210
*634
main96741-19010i¥250202210-202303
(J),*634
12101PAN SUB-ASSY, OIL
main12102-F2050i202004-202405
12101APLUG(FOR OIL PAN DRAIN)
main90341-12012i¥160202004-202105
*636
main90341-C0013i202105-202405
*634
main90341-C0013i202004-202303
12101BGASKET(FOR OIL PAN DRAIN PLUG)
main90430-12031i¥90202004-202105
*636
main90430-C0005i202105-202405
*634
main90430-C0005i202004-202303
12102APAN SUB-ASSY, OIL, NO.2
main12102-25010i¥6,200202004-202105
*636
main12102-F0020i202105-202405
*634
13620BBALANCER ASSY, ENGINE
main13620-25010i¥31,300202004-202105
*636
main13620-F0020i202105-202405
*634
main13620-F2010i202004-202405
15250VALVE ASSY, OIL PRESSURE CONTROL
main15250-25010i¥3,980202105-202111
*634
main15250-25010i¥3,980202111-202405
(J)
main15250-25010i¥3,980202405
*636,(J),*634
main15250-25010i¥3,980202004-202105
*636
main15250-25010i¥3,980202004-202111
main15250-25010i¥3,980202111-202405
(J),*634
main15250-25010i¥3,980202304-202405
ENGINE-A25B-FXS,*636
main15250-F2010i202111-202405
(L),*634
main15250-F2010i202111-202405
(L)
15301GAGE SUB-ASSY, OIL LEVEL
main15301-25030i¥750202004-202105
*636
main15301-F0030i202105-202405
*634
15301ARING, O(FOR OIL LEVEL GAGE)
main90301-C0083i202304
(L),*634
main90301-C0083i202105-202303
*634
main96741-19005i¥140202304
(J),*634
main96741-19005i¥140202304
ENGINE-A25B-FXS,*636
main96741-19005i¥140202405
*636,(J),*634
main96741-19005i¥140202004-202105
*636
15703AVALVE SUB-ASSY, OIL NOZZLE
main15703-25011i¥780202207-202405
(J),*634
main15703-25011i¥780202211-202405
(J)
main15703-25011i¥780202405
*636,(J),*634
main15703-25011i¥780202004-202105
*636
main15703-25011i¥780202105-202207
*634
main15703-25011i¥780202004-202211
main15703-25011i¥780202304-202405
ENGINE-A25B-FXS,*636
main15703-F2010i202211-202405
(L)
main15703-F2010i202207-202405
(L),*634
17169AINSULATOR, EXHAUST MANIFOLD HEAT, NO.3
main17169-25030i¥1,390202004-202105
*636
main17169-F0030i202105-202405
*634
main17169-F2030i202004-202405
28193INSULATOR, STARTER HOLE
main28193-F0020i202004-202405
8401
9010506352
main90105-06352¥60
9010510591
main90105-10591¥120
90105C0331
main90105-C0331
90105C0340
main90105-C0340
90105C0416
main90105-C0416
9011906938
main90119-06938¥60
9011906A12
main90119-06A12¥60
90119C0132
main90119-C0132
90119C0151
main90119-C0151
90119C0671
main90119-C0671
9012606028
main90126-06028¥60
90126C0001
main90126-C0001
9017906326
main90179-06326¥60
90182C0001
main90182-C0001
9025311021
main90253-11021¥120
9025314003
main90253-14003¥140
90253C0007
main90253-C0007
90253C0009
main90253-C0009
9034118023
main90341-18023¥190
9043018008
main90430-18008¥110
9155100845
main91551-00845¥100
9167180820
main91671-80820¥80

49 parts on this diagram · 6 diagrams in section
