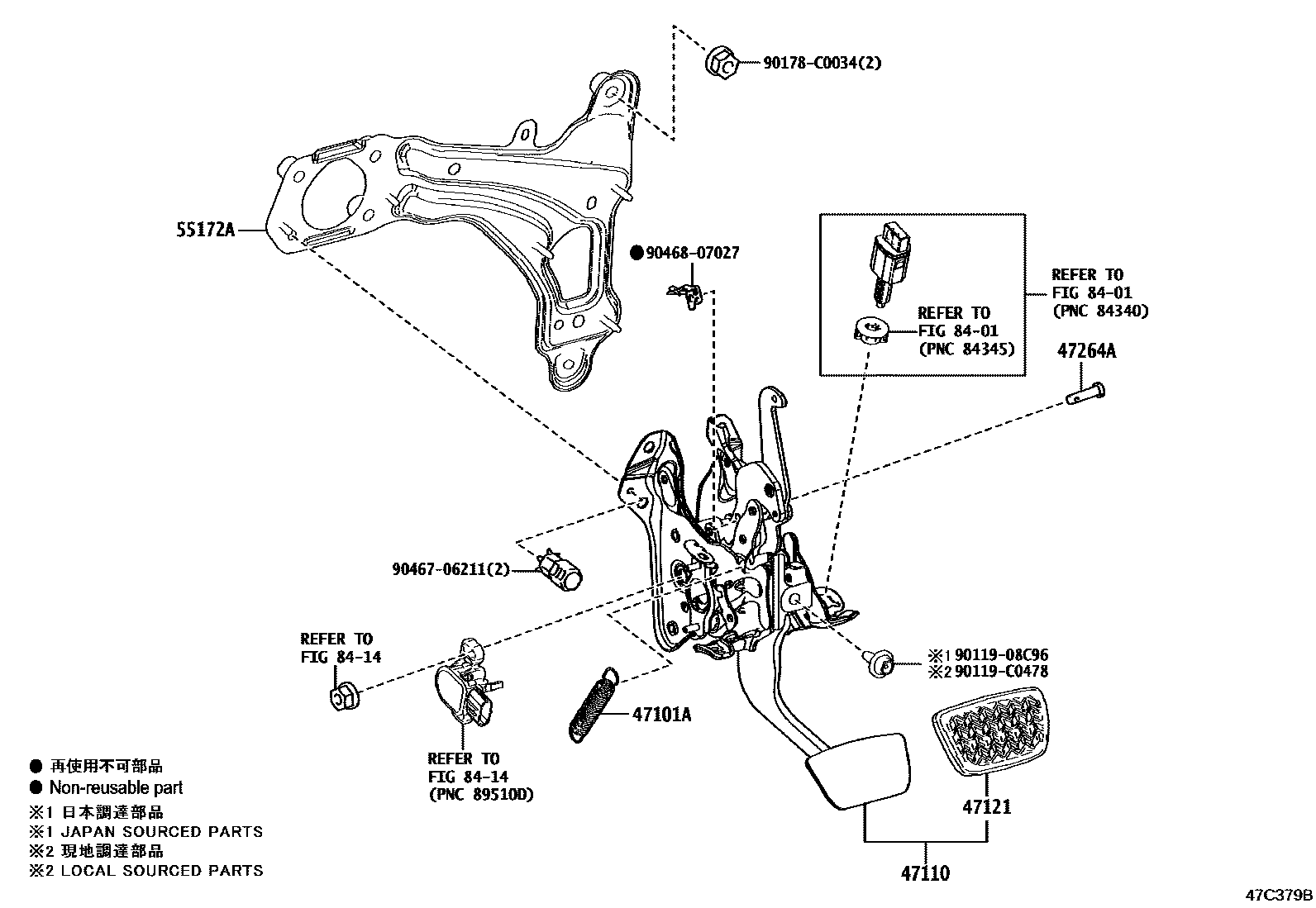

Toyota WILDLANDER (GTMC) — BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iMXAA52;AXAL5#,MXAA54..G,M¥120202004-202405

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0R150iMXAA5#202004-202405

main47110-0R160iAXAH5#202004-202303

main47110-0R180iAXAL5#..G,M202304-202405

47121PAD, BRAKE PEDAL

main47121-48010iMXAA52;AXAL5#,MXAA54..G,M¥520202004-202405

47264APIN(FOR PUSH ROD)

main90240-06028iMXAA5#¥90202004-202405

main90240-08078iAXAL5#..G,M¥120202004-202405

(J)

main90240-C0001iAXAL5#..G,M202012-202405

(L)

55172ABASE, BRAKE PEDAL SUPPORT

main55172-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

8401

8414

9011908C96

main90119-08C96¥80

90119C0478

main90119-C0478

90178C0034

main90178-C0034

9046706211

main90467-06211¥80

9046807027

main90468-07027¥60

12 parts on this diagram · 2 diagrams in section
