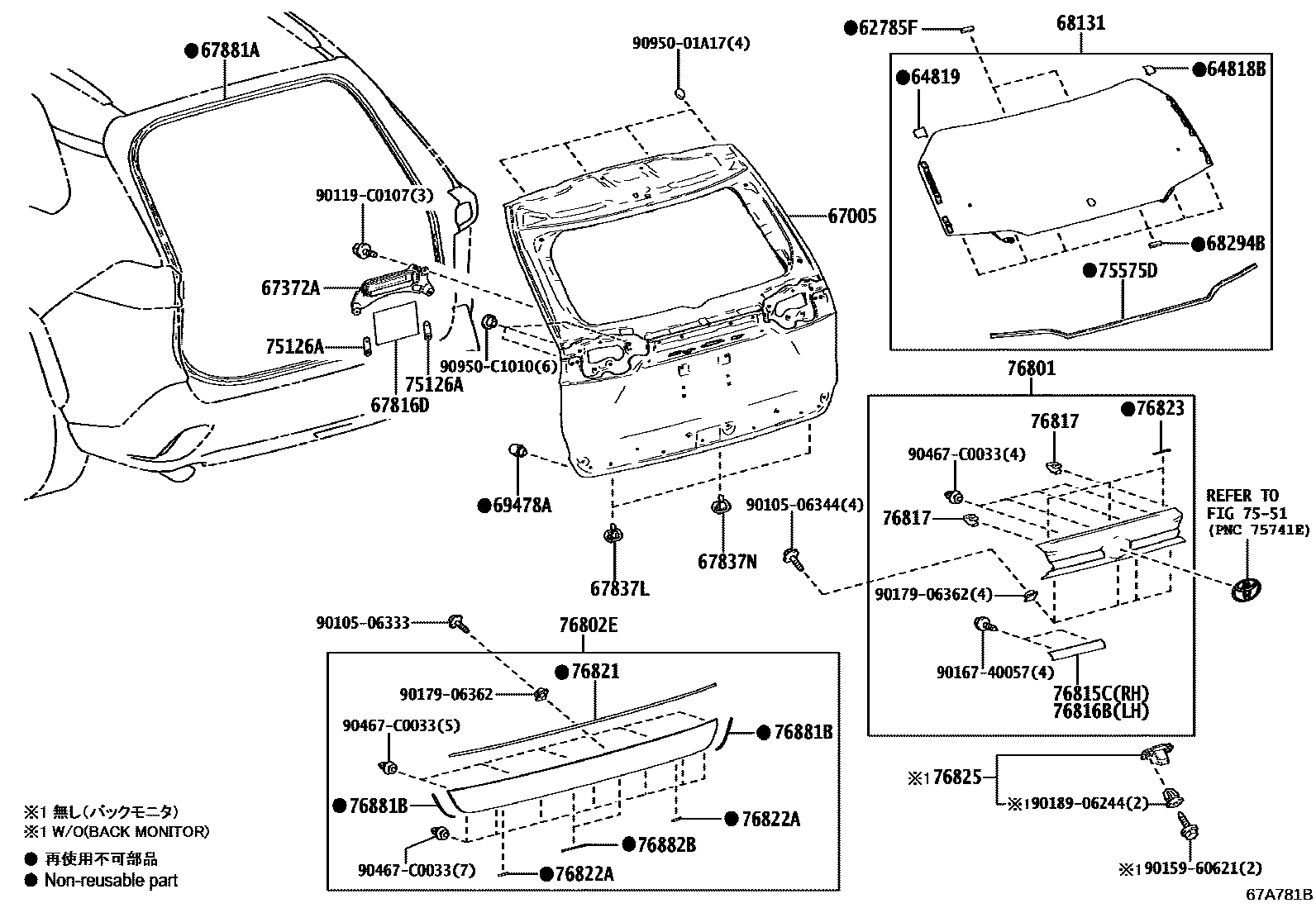

Toyota WILDLANDER (GTMC) — BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

62785FSPACER, BACK DOOR GLASS

main62785-60030iMXAA52;AXAL5#,MXAA54..G,M¥200202004-202405

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-0R070iAXAL52..X202004-202405

64819SPACER, BACK WINDOW GLASS, NO.2

main64819-0R070iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67005PANEL SUB-ASSY, BACK DOOR

main67005-0R350iAXAH52,MXAA5#..G202004-202405

main67005-0R360iMXAA52..M,X;AXAL5#,MXAA54..M202004-202405

67372AWEIGHT, BACK DOOR

main67372-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67816DSHEET, BACK DOOR PANEL SILENCER

main67816-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

NO.2,(L)

67837LSEAL, DOOR DUST PROOF

main67837-0R130iAXAL52..X202004-202405

67837NSEAL, BACK DOOR DUST PROOF

main67837-0R140iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67881AWEATHERSTRIP, BACK DOOR

main67881-0R070iAXAH5#,MXAA5#202004-202012

sub67881-0R071

main67881-0R071iMXAA52;AXAL5#,MXAA54..G,M202101-202405

68131GLASS, BACK DOOR

main68105-0R160iMXAA52;AXAL5#,MXAA54..G,M202004-202409

sub68105-0R161

main68105-0R161iMXAA52;AXAL5#,MXAA54..G,M202410

68294BDAM, BACK DOOR GLASS ADHESIVE

main68294-26030iMXAA52;AXAL5#,MXAA54..G,M¥200202004-202405

69478ACUSHION, BACK DOOR LOWER STOPPER

main69478-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

75126APLATE, REAR LICENSE PLATE BRACKET SUPPORT

main75126-06010iMXAA52;AXAL5#,MXAA54..G,M202004-202405

7551

75575DMOULDING, BACK WINDOW, LOWER

main75575-0R080iMXAA52;AXAL5#,MXAA54..G,M202004-202405

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-0R140iMXAA52;AXAL5#,MXAA54..G,M202004-202405

PLATED

main76801-0R200iAXAL5#,MXAA5#..M202405

PLATED

76802EGARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER

main76802-0R060iMXAA52..G,X;AXAL5#,MXAA54..G202004-202405

main76802-0R090iAXAL5#,MXAA5#..M202405

76815CMOULDING, BACK DOOR OUTSIDE GARNISH, LWR RH

main76815-0R070iAXAL52..X202004-202405

main76815-0R090iAXAL5#,MXAA5#..M202405

76816BMOULDING, BACK DOOR OUTSIDE GARNISH, LWR LH

main76816-0R070iMXAA52;AXAL5#,MXAA54..G,M202004-202405

main76816-0R090iAXAL5#,MXAA5#..M202405

76817CLIP, BACK DOOR OUTSIDE GARNISH

main90467-05171iAXAH5#,MXAA5#¥60202004-202405

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-0R080iAXAH5#,MXAA5#202004-202405

76822APROTECTOR, BACK DOOR GARNISH MOULDING, LWR

main76822-0R040iMXAA52;AXAL5#,MXAA54..G,M202004-202405

76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH

main76823-0R060iMXAA52;AXAL5#,MXAA54..G,M202004-202405

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-0R090iMXAA52..M,X;AXAL52,MXAA54..M202004-202405

76881BPROTECTOR, BACK DOOR LOWER MOULDING, RH

main76881-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

76882BPROTECTOR, BACK DOOR LOWER MOULDING, LH

main76882-0R020iMXAA52;AXAL5#,MXAA54..G,M202004-202405

9010506333

main90105-06333¥60

9010506344

main90105-06344¥60

90119C0107

main90119-C0107

9015960621

main90159-60621¥60

9016740057

main90167-40057¥60

9017906362

main90179-06362¥60

9018906244

main90189-06244¥100

90467C0033

main90467-C0033

9095001A17

main90950-01A17¥100

90950C1010

main90950-C1010

36 parts on this diagram · 2 diagrams in section
