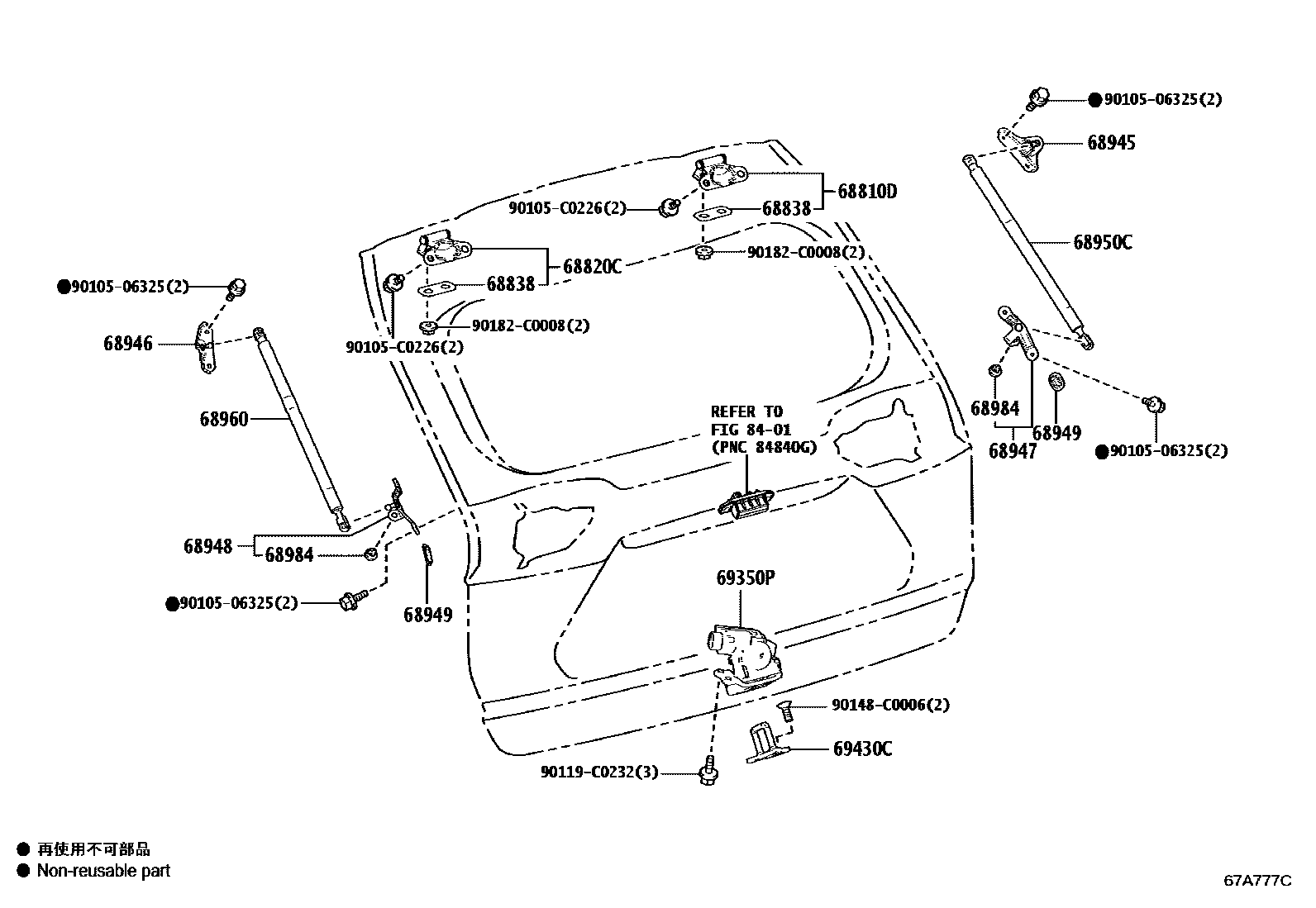

Toyota WILDLANDER (GTMC) — BACK DOOR LOCK & HINGE

0001 1W/O(POWER BACK DOOR) 0002 1W(POWER BACK DOOR)

68810DHINGE ASSY, BACK DOOR, RH

main68810-0R130iMXAA52;AXAL5#,MXAA54..G,M202004-202405

PAD T=1.0

main68810-0R140iAXAL52..X202004-202405

PAD T=1.5

main68810-0R150iAXAL52..X202004-202405

PAD T=2.0

68820CHINGE ASSY, BACK DOOR, LH

main68810-0R130iMXAA52;AXAL5#,MXAA54..G,M202004-202405

PAD T=1.0

main68810-0R140iAXAL52..X202004-202405

PAD T=1.5

main68810-0R150iAXAL52..X202004-202405

PAD T=2.0

68838PAD, BACK DOOR HINGE, NO.1

main68838-F4100iMXAA52;AXAL5#,MXAA54..G,M202004-202405

T=1.0

main68838-F4110iAXAH5#,MXAA5#202004-202405

T=1.5

main68838-F4120iAXAH5#,MXAA5#202004-202405

T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-0R090iAXAH5#,MXAA5#..A,M,X202004-202405

main68945-0R100iAXAL5#,MXAA5#..G202004-202405

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-0R090iMXAA52..M,X;AXAL5#,MXAA54..M202004-202405

main68946-0R100iAXAH52,MXAA5#..G202004-202405

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-0R070iMXAA52;AXAL5#,MXAA54..G,M202004-202405

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-0R070iMXAA52;AXAL5#,MXAA54..G,M202004-202405

68949SEAL, BACK DOOR STAY BRACKET

main68949-0R030iAXAH5#,MXAA5#..A,M,X202004-202405

68950CSTAY ASSY, BACK DOOR, RH

main68950-0R090iMXAA52..M,X;AXAL5#,MXAA54..M202004-202407

main68950-0R220iMXAA52..M,X;AXAL5#,MXAA54..M202407

68960STAY ASSY, BACK DOOR, LH

main68960-0R090iAXAL52..X202004-202407

main68960-0R210iMXAA52..M,X;AXAL5#,MXAA54..M202407

68984STOPPER, BACK DOOR STAY

main68984-0R040iMXAA52;AXAL5#,MXAA54..G,M202004-202405

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-0R080iAXAH52,MXAA5#..G202004-202104

main69350-0R081iAXAH52,MXAA5#..G202105-202212

main69350-0R082iAXAH52,MXAA5#..G202301-202405

main69350-0R090iAXAL52..X202004-202405

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0E060iAXAL52..X202004-202405

8401

9010506325

main90105-06325¥80

90105C0226

main90105-C0226

90119C0232

main90119-C0232

90148C0006

main90148-C0006

90182C0008

main90182-C0008

19 parts on this diagram · 2 diagrams in section
