Toyota WILDLANDER (GTMC) — ANTENNA

86077COVER KIT, ANTENNA

main86077-12040-A1iMXAA52;AXAL5#,MXAA54..G,M202304-202405

PLATINUM WHITE PEARL MC.,089

sub86077-42020¥1,570

main86077-12040-B7iMXAA52;AXAL5#,MXAA54..G,M202304-202405

METAL STREAM ME,1K0

sub86077-42020¥1,570

main86077-12040-C4iMXAA52..X202304-202405

BLACK MC.,209

sub86077-42020¥1,570

main86077-12040-C4iMXAA52..X202304-202405

BLACK MC.,209 ,2PU ,2TL ,2UY

sub86077-42020¥1,570

main86077-12040-C6iMXAA52;AXAL5#,MXAA54..G,M202304-202405

BLACKISH AGEHA GF.,221

sub86077-42020¥1,570

main86077-12040-E2iMXAA52;AXAL5#,MXAA54..G,M202304-202405

STEEL BLONDE ME.,4X1

sub86077-42020¥1,570

main86077-47010-A3iAXAH5#,MXAA5#202004-202303

PLATINUM WHITE PEARL MC.,089

sub86077-47010¥2,500

main86077-47010-C2iAXAH52,MXAA52..A,G202004-202303

BLACK MC.,209 ,2KR ,2PU ,2TL ,2TT

sub86077-47010¥2,500

main86077-47010-C2iAXAH52,MXAA52..X202004-202303

BLACK MC.,209

sub86077-47010¥2,500

main86077-47010-C2iAXAH52,MXAA52..X202004-202303

BLACK MC.,209 ,2PU ,2TL ,2TT

sub86077-47010¥2,500

main86077-47010-C3iAXAH5#,MXAA5#202004-202303

BLACKISH AGEHA GF.,221

sub86077-47010¥2,500

main86077-47010-E0iAXAH5#,MXAA5#..A,G,M202004-202303

STEEL BLONDE,2TE ,2TF ,2TG ,4X1

sub86077-47010¥2,500

main86077-47010-E0iAXAH5#,MXAA5#..A,G,M202004-202303

STEEL BLONDE,4X1

sub86077-47010¥2,500

main86077-47010-E6iAXAH5#,MXAA5#202004-202303

BLACKISH BROWN MC.,4X9

sub86077-47010¥2,500

main86077-47010-J0iAXAH5#,MXAA5#202004-202303

DK.BLUE M.M.,8W7

sub86077-47010¥2,500

86101CORD SUB-ASSY, ANTENNA

main86101-0R640iAXAH5#,MXAA5#202004-202303

sub86101-0R600

main86101-0RB50iMXAA52;AXAL5#,MXAA54..G,M202304-202405

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-0R630iAXAH5#,MXAA5#202004-202303

sub86101-0R590

main86101-0RB70iMXAA52;AXAL5#,MXAA54..G,M202304-202405

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0R620iAXAH5#,MXAA5#202004-202303

sub86101-0R580

main86101-0RB60iMXAA52;AXAL5#,MXAA54..G,M202304-202405

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-0R650iMXAA52;AXAL5#,MXAA54..G,M202004-202405

86300JANTENNA ASSY, ROOF

main86300-02470iAXAH5#,MXAA5#202004-202303

main86300-0A070iMXAA52;AXAL5#,MXAA54..G,M202304-202405

86769HOUSING, ROOF ANTENNA

main86769-0E030iMXAA52;AXAL5#,MXAA54..G,M202304-202405

main86769-12010iAXAH5#,MXAA5#¥500202004-202303

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790¥120

827150R390BRACKET,WIRING HARNESS CLAMP

main82715-0R390

90119C0307

main90119-C0307

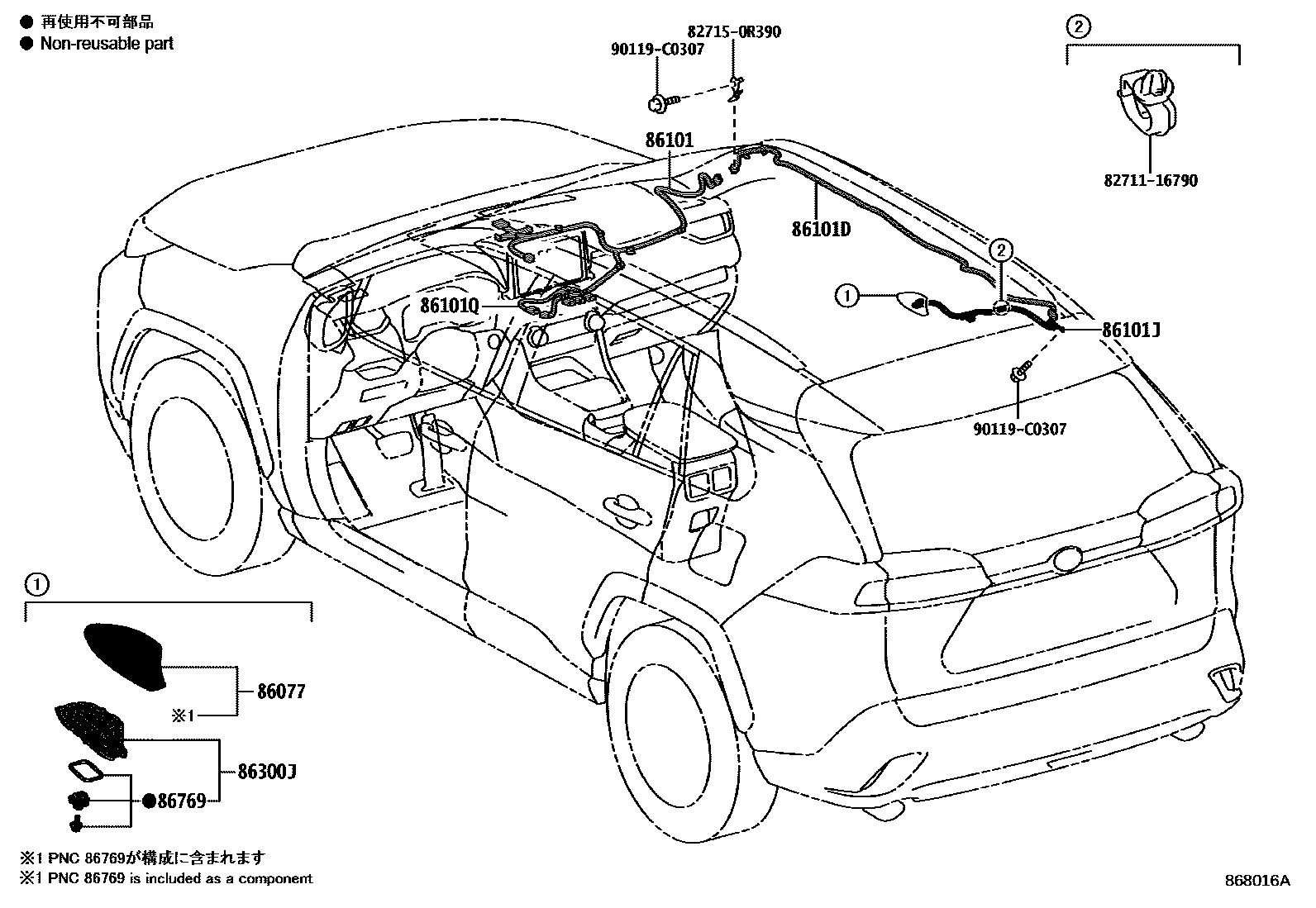

10 parts on this diagram · 1 diagram in section
