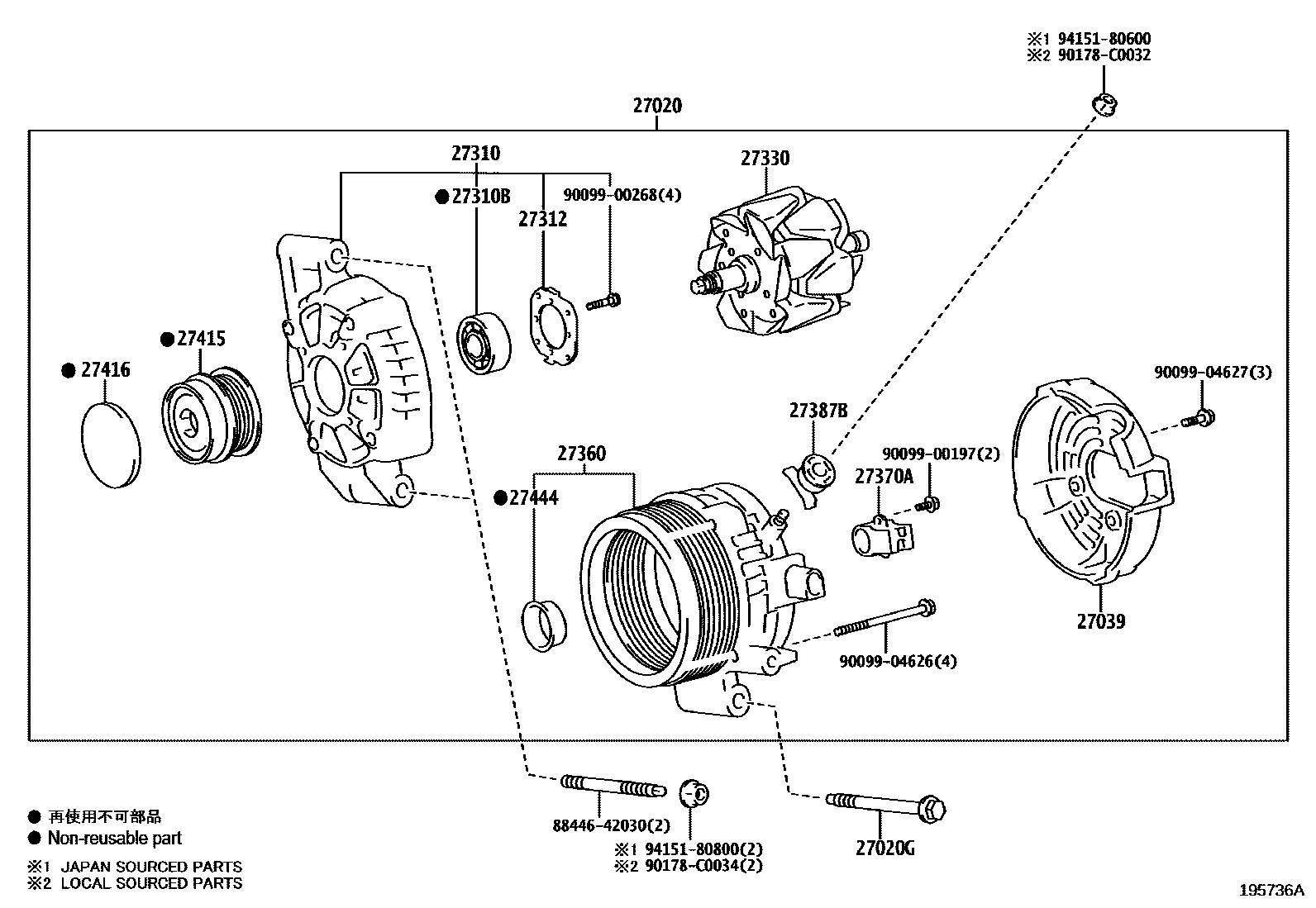

Toyota WILDLANDER (GTMC) — ALTERNATOR

0001 112V 130A 0003 112V 130A

27020ALTERNATOR ASSY

main27060-F2050iM20CFKS..MXAA5#202004-202303

12V 130A

main27060-F2200iM20CFKS..MXAA5#202304-202405

12V 130A

27020GBOLT, NO.2(FOR ALTERNATOR)

main90119-08C78iM20CFKS..MXAA5#¥0202004-202405

27039COVER, ALTERNATOR REAR END

main27039-0C180iM20CFKS..MXAA5#202004-202405

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-F2040iM20CFKS..MXAA5#202004-202303

main27310-F2160iM20CFKS..MXAA5#202304-202405

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10033iM20CFKS..MXAA5#202304-202405

main90068-10050iM20CFKS..MXAA5#202004-202303

sub90068-10033

27312PLATE, RETAINER

main27312-0M070iM20CFKS..MXAA5#202004-202405

27330ROTOR ASSY, ALTERNATOR

main27330-F2040iM20CFKS..MXAA5#202004-202405

27360COIL ASSY, ALTERNATOR

main27360-F2040iM20CFKS..MXAA5#202004-202405

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-0T030iM20CFKS..MXAA5#202004-202405

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-0H110iM20CFKS..MXAA5#202004-202405

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-F2040iM20CFKS..MXAA5#202004-202303

27416CAP, ALTERNATOR PULLEY

main27416-0W050iM20CFKS..MXAA5#¥340202004-202107

main27416-F0010iM20CFKS..MXAA5#202107-202303

27444PACKING, ALTERNATOR BEARING COVER

main27444-0Y180iM20CFKS..MXAA5#202004-202405

8844642030BOLT, IDLE PULLEY

main88446-42030¥0

9009900197

main90099-00197

9009900268

main90099-00268¥0

9009904626

main90099-04626¥0

9009904627

main90099-04627¥0

90178C0032

main90178-C0032

90178C0034

main90178-C0034

9415180600

main94151-80600¥60

9415180800

main94151-80800¥80

22 parts on this diagram · 2 diagrams in section
