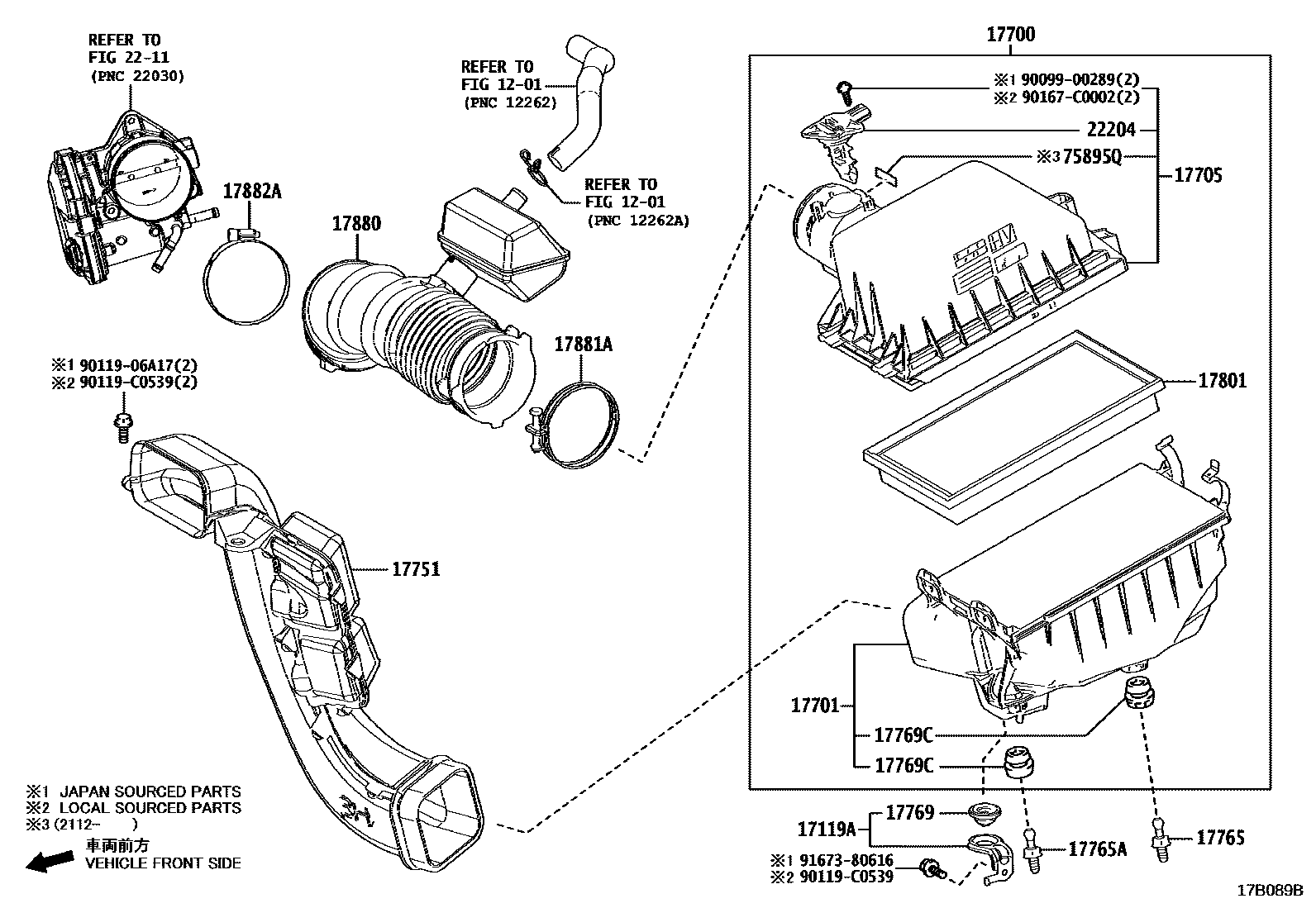

Toyota WILDLANDER (GTMC) — AIR CLEANER

0001 1 0002 1 0003 1

1201

17119ABRACKET, AIR CLEANER

main17119-F0030iM20CFKS..MXAA5#202004-202405

17700CLEANER ASSY, AIR

main17700-F0101iA25..AXAL5#..G,M202004-202405

main17700-F0261iM20CFKS..MXAA5#202004-202405

17701CASE SUB-ASSY, AIR CLEANER

main17701-25101iM20CFKS..MXAA5#202103-202405

MARK=17785-25020

main17701-F0041iA25..AXAL5#..G,M202004-202405

main17701-F0151iM20CFKS..MXAA5#202304-202405

MARK=17785-F0020

main17701-F0151iM20CFKS..MXAA5#202004-202103

main17701-F0151iM20CFKS..MXAA5#202103-202303

MARK=17301-F0010

17705CAP SUB-ASSY, AIR CLEANER

main17705-F0030iM20CFKS..MXAA5#202004-202405

main17705-F0050iA25..AXAL52..X202004-202405

17751INLET, AIR CLEANER, NO.1

main17750-F0260iM20CFKS..MXAA5#202304-202410

sub17750-F0261

main17750-F0261iM20CFKS..MXAA5#202411

main17751-F0150iM20CFKS..MXAA5#202004-202303

main17751-F0160iA25..AXAH5#202004-202405

17765STAY, AIR CLEANER, NO.1

main17765-25010iA25..AXAL5#..G,M¥230202004-202412

main17765-25010iA25..AXAL5#..G,M¥230202412

(J)

main17765-F2010iA25..AXAL5#..G,M202412

(L)

17765ASTAY, AIR CLEANER, NO.1

main17765-25010iA25..AXAL5#..G,M¥230202004-202405

17769SUPPORT, AIR CLEANER

main17769-25020iA25..AXAL5#..G,M¥160202004-202405

17769CSUPPORT, AIR CLEANER, NO.1

main17769-25020iM20CFKS..MXAA5#¥160202004-202405

main17769-25030iA25..AXAL52..X¥200202004-202405

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-25020iM20CFKS..MXAA5#¥4,500202004-202405

(J)

main17801-77050iA25..AXAL5#..G,M¥2,700202304-202405

main17801-77050iA25..AXAH5#¥2,700202004-202303

(J)

main17801-F0040iA25..AXAH5#202004-202303

(L)

main17801-F0060iM20CFKS..MXAA5#202004-202405

(L)

17880HOSE ASSY, AIR CLEANER

main17880-F0150iA25..AXAL5#..G,M202004-202405

main17880-F0170iM20CFKS..MXAA5#202004-202405

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850iA25..AXAL52..X¥240202004-202405

main96111-10880iM20CFKS..MXAA5#¥520202004-202405

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main17891-31010iA25..AXAL5#..G,M¥710202004-202405

main96111-10800iM20CFKS..MXAA5#¥160202004-202405

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75040iM20CFKS..MXAA5#¥9,400202004-202405

75895QTAPE, MOULDING, NO.1

main75895-52050iMXAA5#¥260202112-202405

9009900289

main90099-00289¥60

9011906A17

main90119-06A17¥60

90119C0539

main90119-C0539

90167C0002

main90167-C0002

9167380616

main91673-80616¥60

22 parts on this diagram · 3 diagrams in section
