Toyota VITZ — PARTIAL ENGINE ASSEMBLY

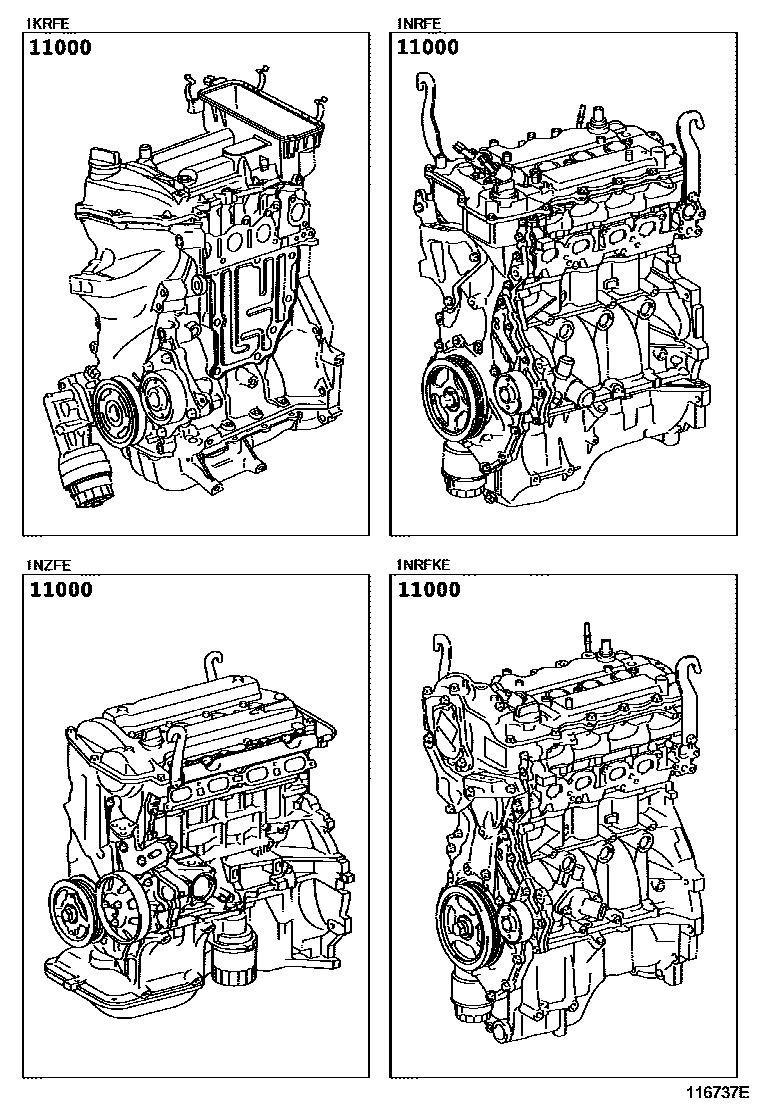

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-21851i201709-202001
main19000-21D50i201709-202001
main19000-21E20i201701-202001
main19000-47160i201012-201301
main19000-47161i201301-201304
main19000-47220i201012-201212
main19000-47221i201301-201304
main19000-47280i201304-201404
main19000-47290i201404-201701
main19000-47350i201404-201412
sub11285-33030
sub16572-47120
sub17168-47041
main19000-47351i201412-201505
main19000-47352i201701-201805
sub19000-47353
main19000-47500i201805-201903
main19000-47501i201903-202001
main00000-00000supersedes 19000-21851i201309-201402
main19000-21D60supersedes 19000-21D50i201404-201701
main19000-40270supersedes 19000-40281i201404-201505
main19000-40271supersedes 19000-40281i201701-202001
main19000-47210i201012-201301
main19000-47211i201301-201304
main19000-47270i201304-201404

1 parts on this diagram · 2 diagrams in section
