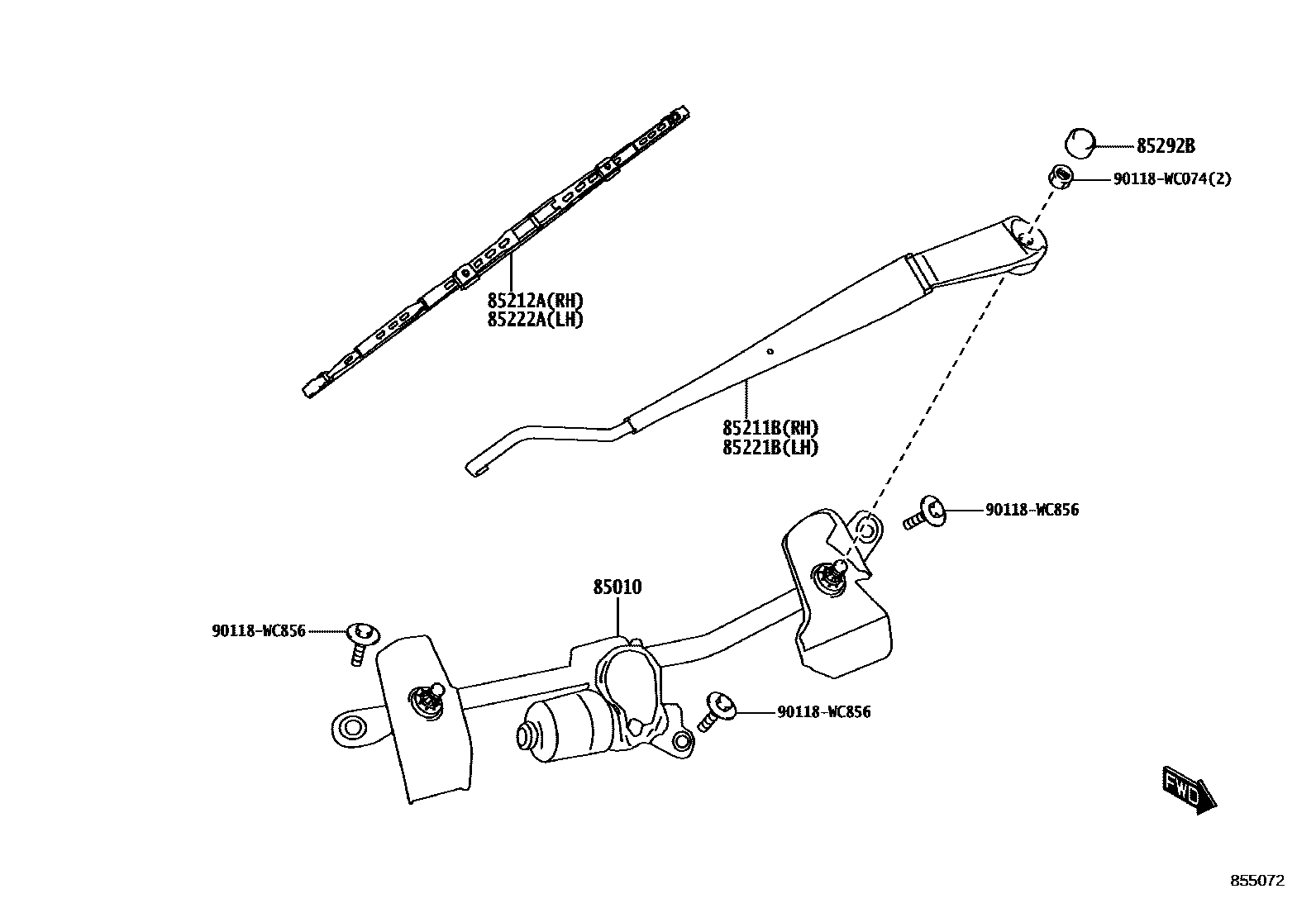

Toyota VITZ — WINDSHIELD WIPER

0001 1 0002 1

85010MOTOR & LINK ASSY, FR WIPER

main85010-WC012

main85010-WC013

main85010-WC014

main85010-WC015

85211BARM, FRONT WIPER, RH

85212ABLADE, FR WIPER, RH

85221BARM, FRONT WIPER, LH

85222ABLADE, FR WIPER, LH

85292BCAP, FRONT WIPER ARM HEAD

90118WC074

main90118-WC074

90118WC856

main90118-WC856

8 parts on this diagram · 2 diagrams in section
