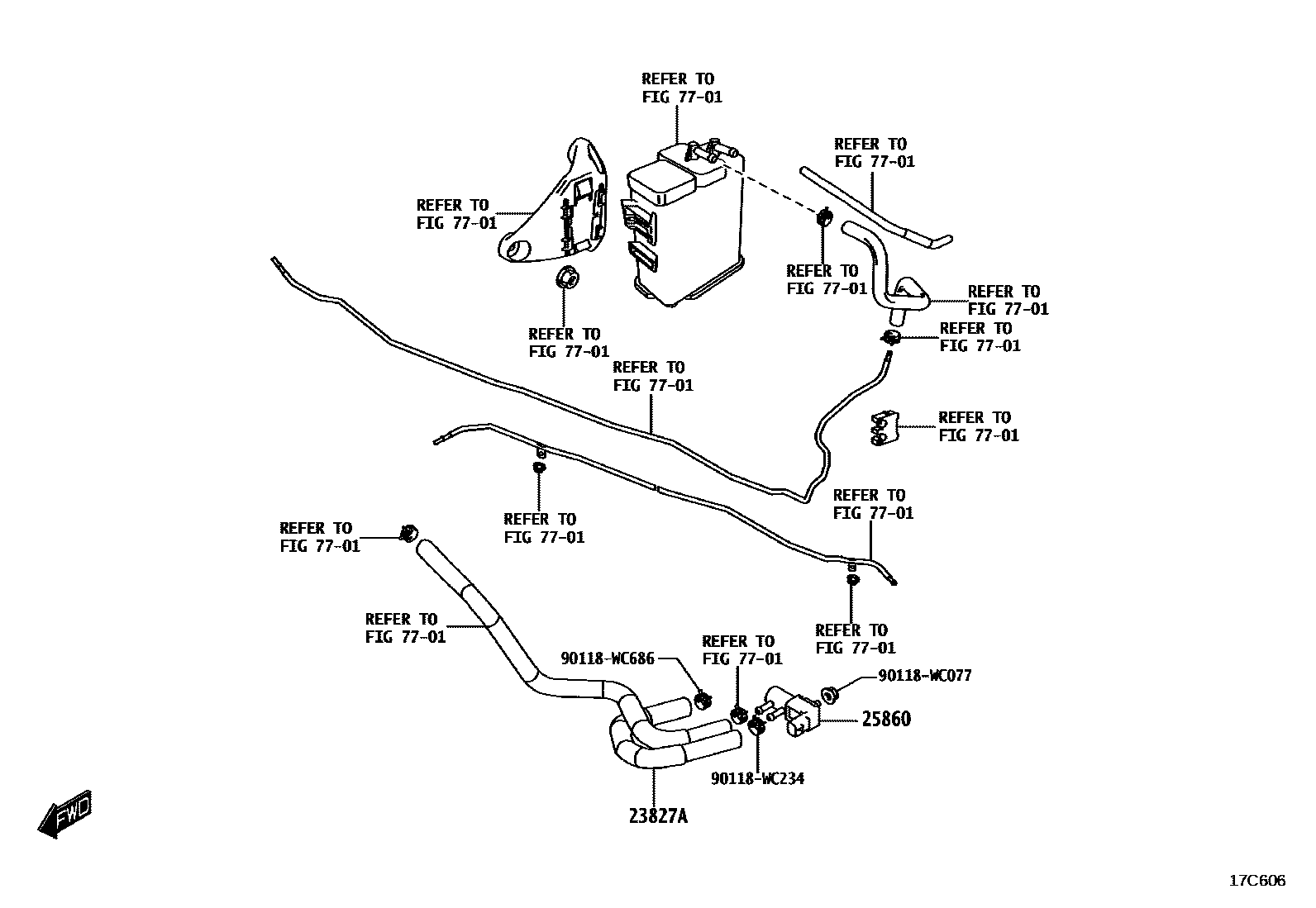

Toyota VITZ — VACUUM PIPING

0001 1 0002 1

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-WC012iK10C..K10C202301-202302

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-WC001

7701

90118WC077

main90118-WC077

90118WC234

main90118-WC234

90118WC686

main90118-WC686

6 parts on this diagram · 2 diagrams in section
