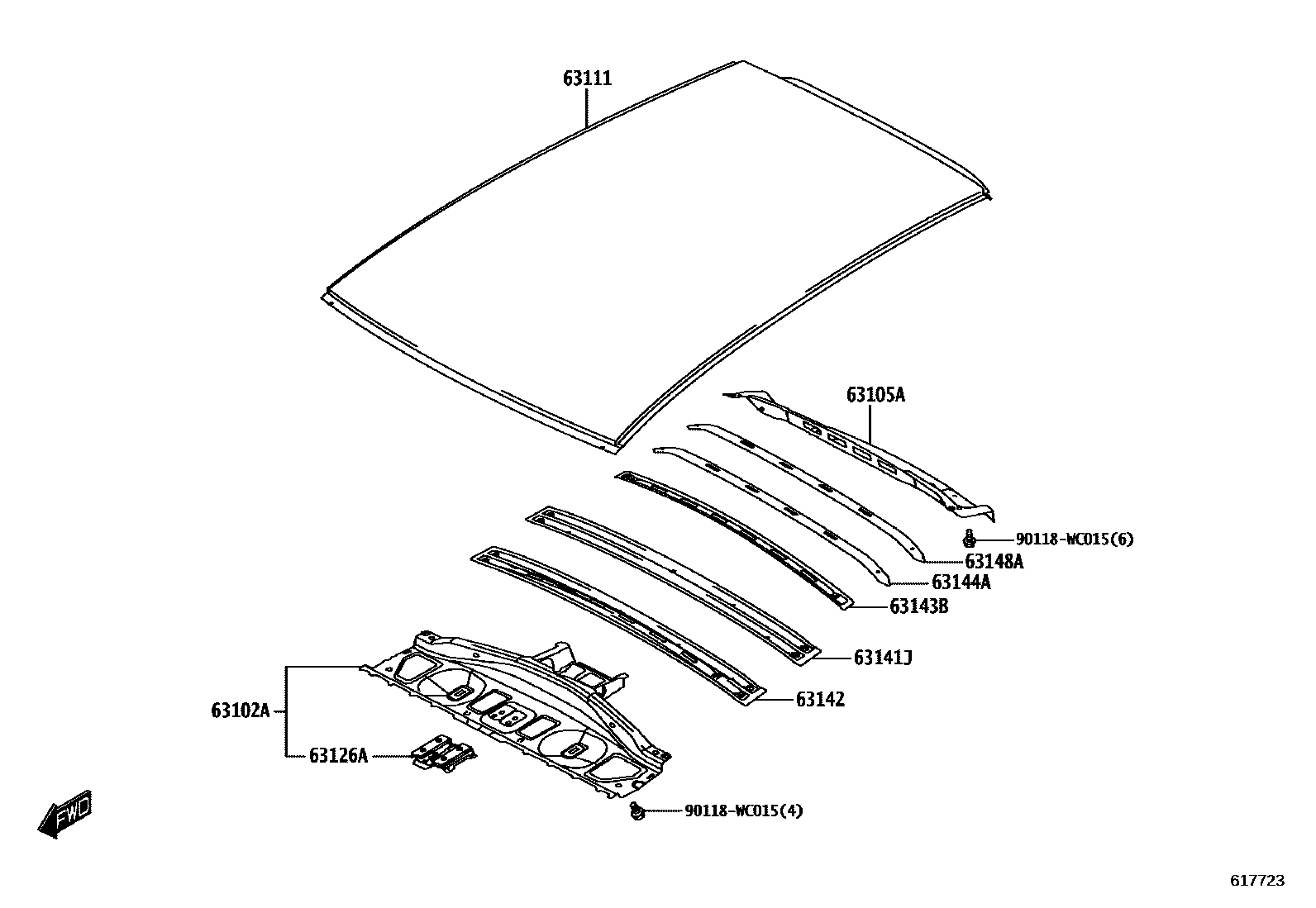

Toyota VITZ — ROOF PANEL & BACK WINDOW GLASS

63102APANEL SUB-ASSY, WINDSHIELD HEADER

63105AFRAME SUB-ASSY, BACK DOOR OPENING

63111PANEL, ROOF

main63111-WC010

63126ADAMPER, WINDSHIELD HEADER PANEL

63141JREINFORCEMENT, ROOF PANEL

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-WC001

63143BREINFORCEMENT, ROOF PANEL, NO.3

63144AREINFORCEMENT, ROOF PANEL, NO.4

63148AREINFORCEMENT, ROOF PANEL, NO.7

90118WC015

main90118-WC015

10 parts on this diagram · 1 diagram in section
