Toyota VITZ — REAR COMBINATION LAMP

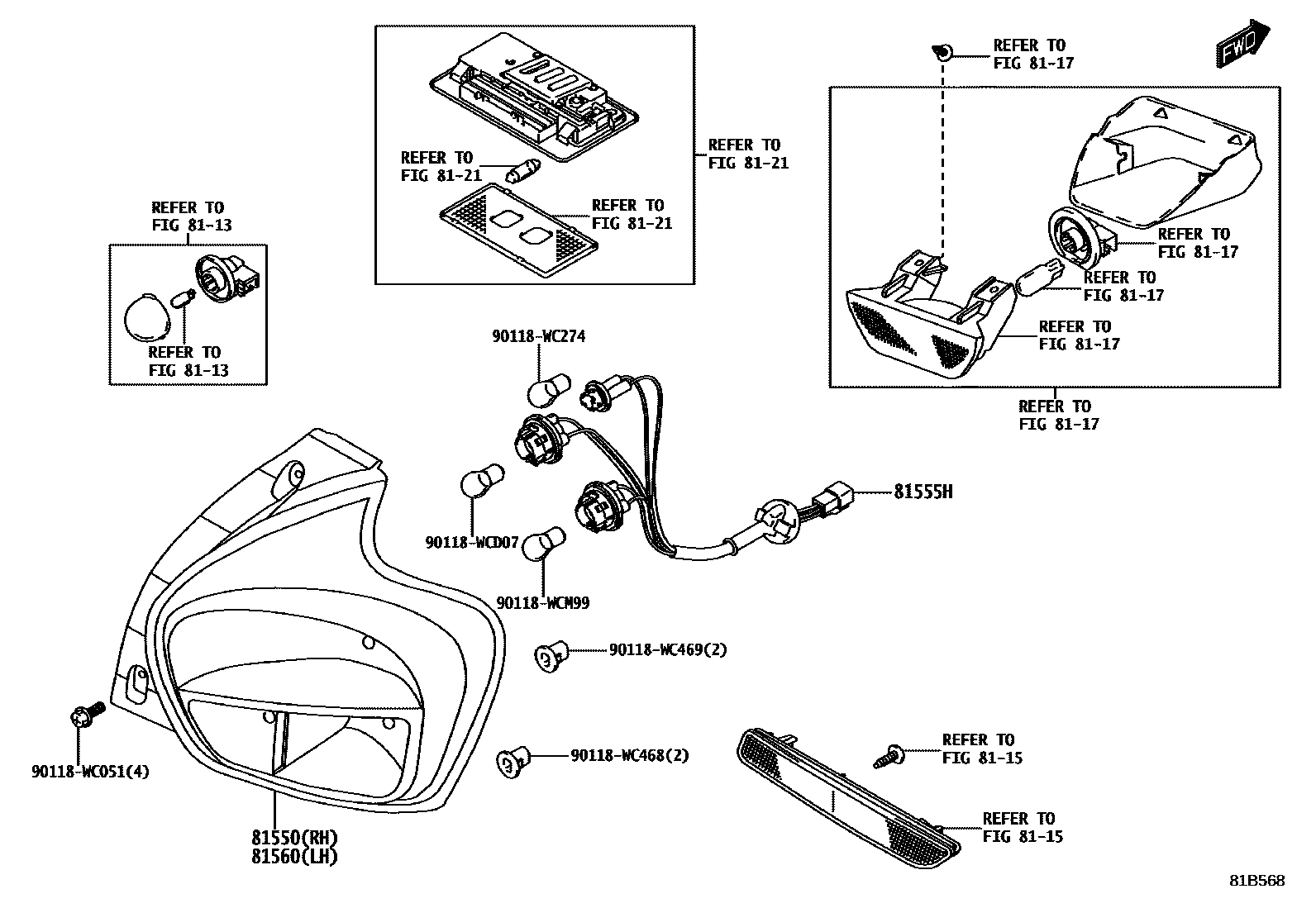

Parts diagram

8113

8115

8117

8121

81550LAMP ASSY, REAR COMBINATION, RH

main81551-WC010

81555HSOCKET & WIRE, REAR COMBINATION LAMP

81560LAMP ASSY, REAR COMBINATION, LH

main81561-WC009

90118WC051

main90118-WC051

90118WC274

main90118-WC274

90118WC468

main90118-WC468

90118WC469

main90118-WC469

90118WCD07

main90118-WCD07

90118WCM99

main90118-WCM99

13 parts on this diagram · 1 diagram in section
