Toyota VITZ — RADIATOR GRILLE

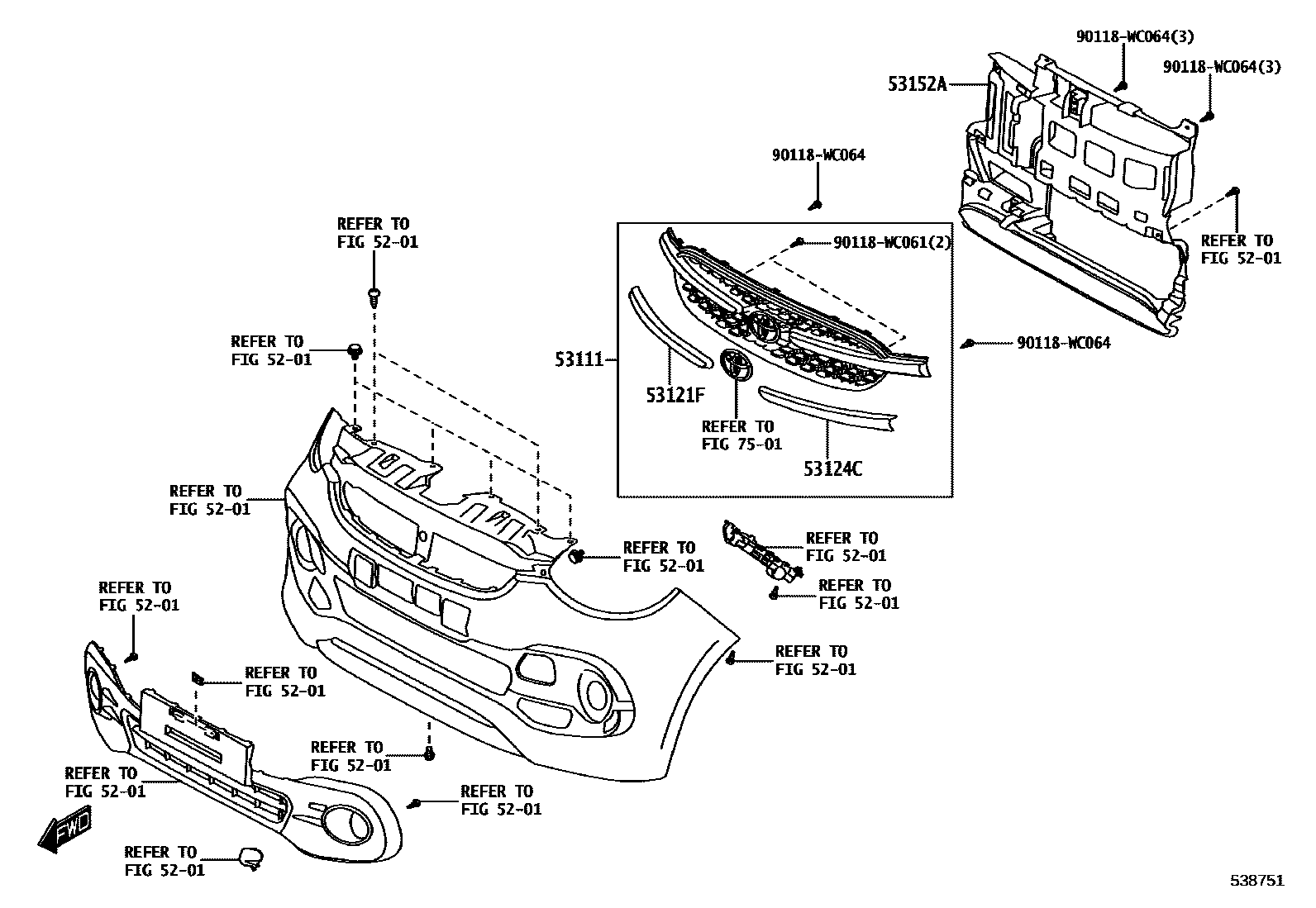

Parts diagram

5201

53111GRILLE, RADIATOR

main53111-WC012

53121FMOULDING, RADIATOR GRILLE, UPPER RH

53124CMOULDING, RADIATOR GRILLE, UPPER LH

53152AGUIDE, RADIATOR GRILLE AIR

7501

90118WC061

main90118-WC061

90118WC064

main90118-WC064

8 parts on this diagram · 1 diagram in section
