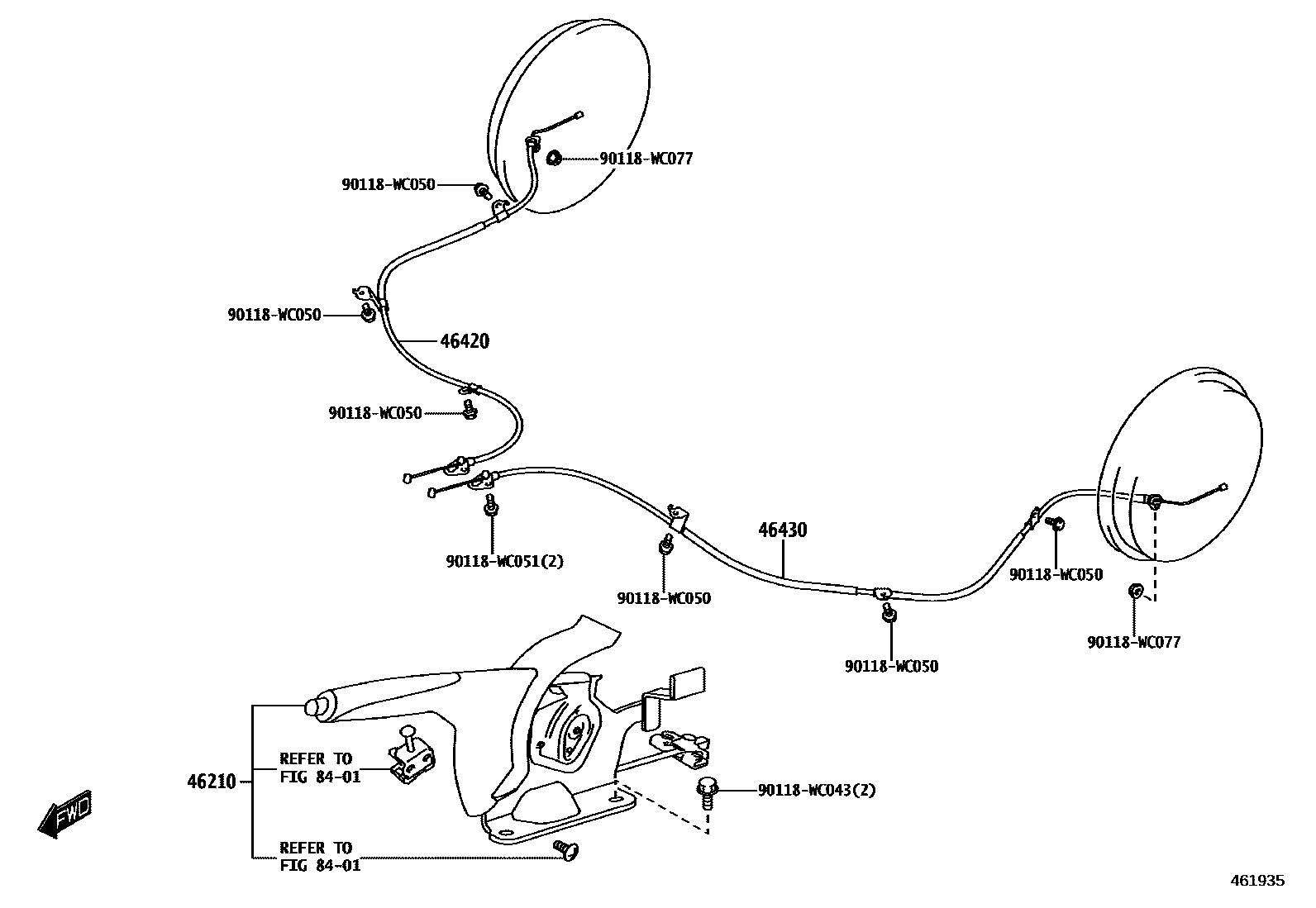

Toyota VITZ — PARKING BRAKE & CABLE

46210LEVER ASSY, PARKING BRAKE

main46210-WC008

main46210-WC009

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-WC010

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-WC010

8401

90118WC043

main90118-WC043

90118WC050

main90118-WC050

90118WC051

main90118-WC051

90118WC077

main90118-WC077

8 parts on this diagram · 1 diagram in section
