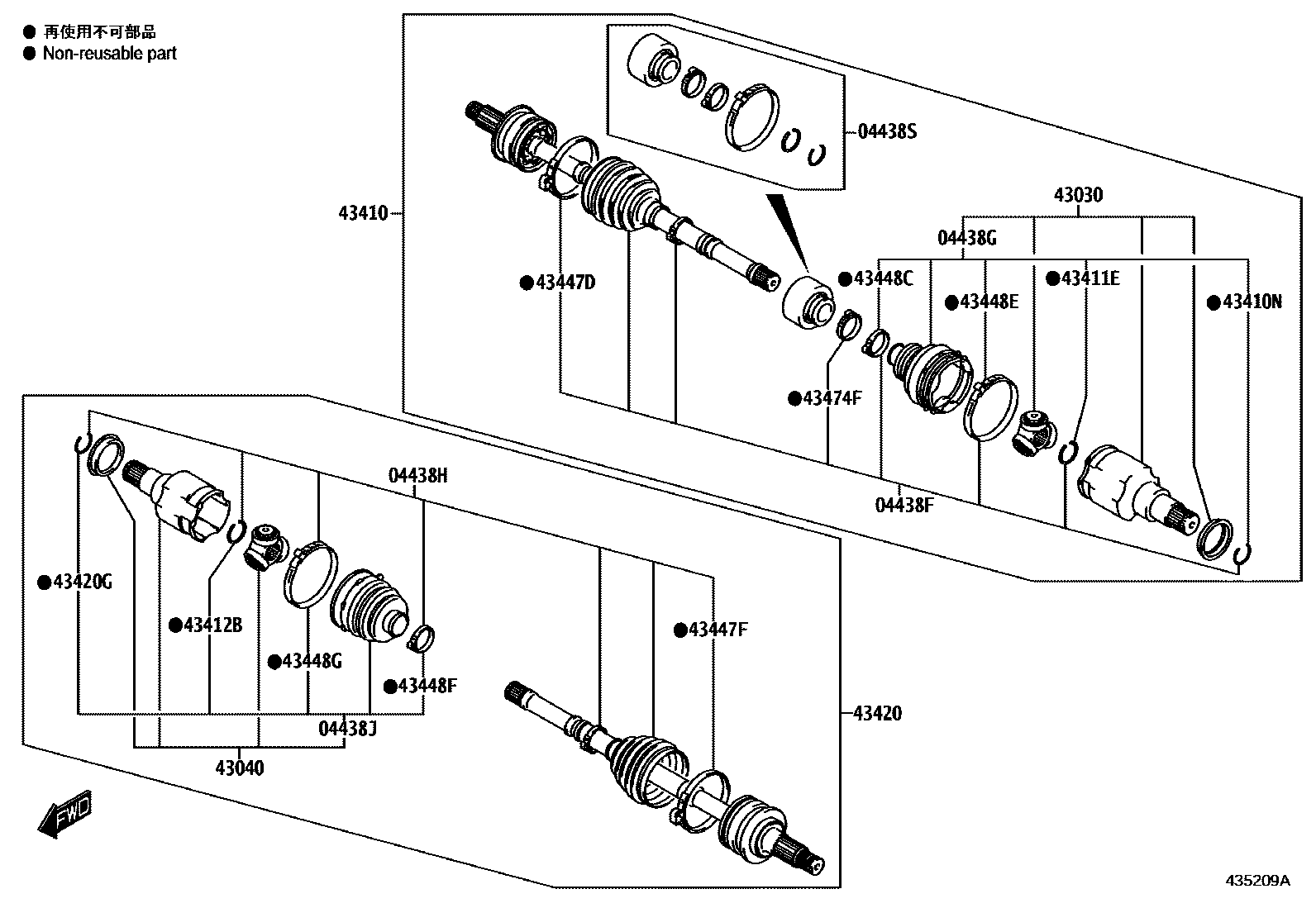

Toyota VITZ — FRONT DRIVE SHAFT

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

04438SCLAMP KIT, FRONT DRIVE SHAFT, RH

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-WC019

main43040-WC026

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-WC019

main43040-WC026

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-WC022

main43410-WC031

main90118-WC527

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-WC021

main43420-WC029

main90118-WC527

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

20 parts on this diagram · 1 diagram in section
